X1200 Series Router Manual
OVERVIEW
Revision 1.3.2
Page 1-3
Features:
• Standard definition units support SMPTE 259M (270Mb/s,360Mb/s,540Mb/s) video signals
• High definition units support SMPTE 292M (1.5 Gb/s) video signals
• High definition units can be operated in a non-reclock mode to pass SMPTE 259M video signals
• Units can be genlocked to an external source so that a “clean switch” can be achieved.
• Autotiming of V1 buss inputs to perform a clean video switch when SoftSwitch or Embedded
SoftSwitch option is installed
• Optional SoftSwitch technology eliminates hot-switch audio pops on AES outputs following V1 buss
• Optional Embedded SoftSwitch technology eliminates hot-switch audio pops on embedded audio on
V1 buss
• Switch point is fully controllable from the front panel.
• Video input presence detection displayable on the front panel.
• Front panel or remote control panel versions available. Second control panel can be ordered for either
version
• Parallel GPI and RS-232 serial control.
• Programmable source input names available on the front panel.
• Optional video and audio input relay bypass for power failure bypass protection.
• Optional dual power supplies.
• Field upgradeable firmware as new features become available
EQ EQ
Video Connections on main unit
AES 1
Audio Inputs
112
1
12
AES 1A
Outputs
Cable
Driver
Cable
Driver
Cable
Driver
Bypass
Relay
Protected
Bypass
Relay
Protected
AES 2
Audio Inputs
112
1
12
Cable
Driver
Cable
Driver
Cable
Driver
Cable
Driver
Bypass
Relay
Protected
*
*
*
Control
GPI/GPO
RS-422
RS-232
Video Ref
Loop
Genlock
112
Video Inputs
Video Output
Buss 1
Cable
Driver
Reclocker
Bypass
Relay
Protected
*
Reclocker bypass on
HD Routers
AES 1 connections on Breakout panel
Included only in AES and AES4 models
AES 2 connections on Breakout panel
Included only in AES4 models
Bypass
Relay
Protected
*
Cable
Driver
AES 1B
Outputs
AES 2A
Outputs
AES 2B
Outputs
Relay Bypass available with bypass option
*

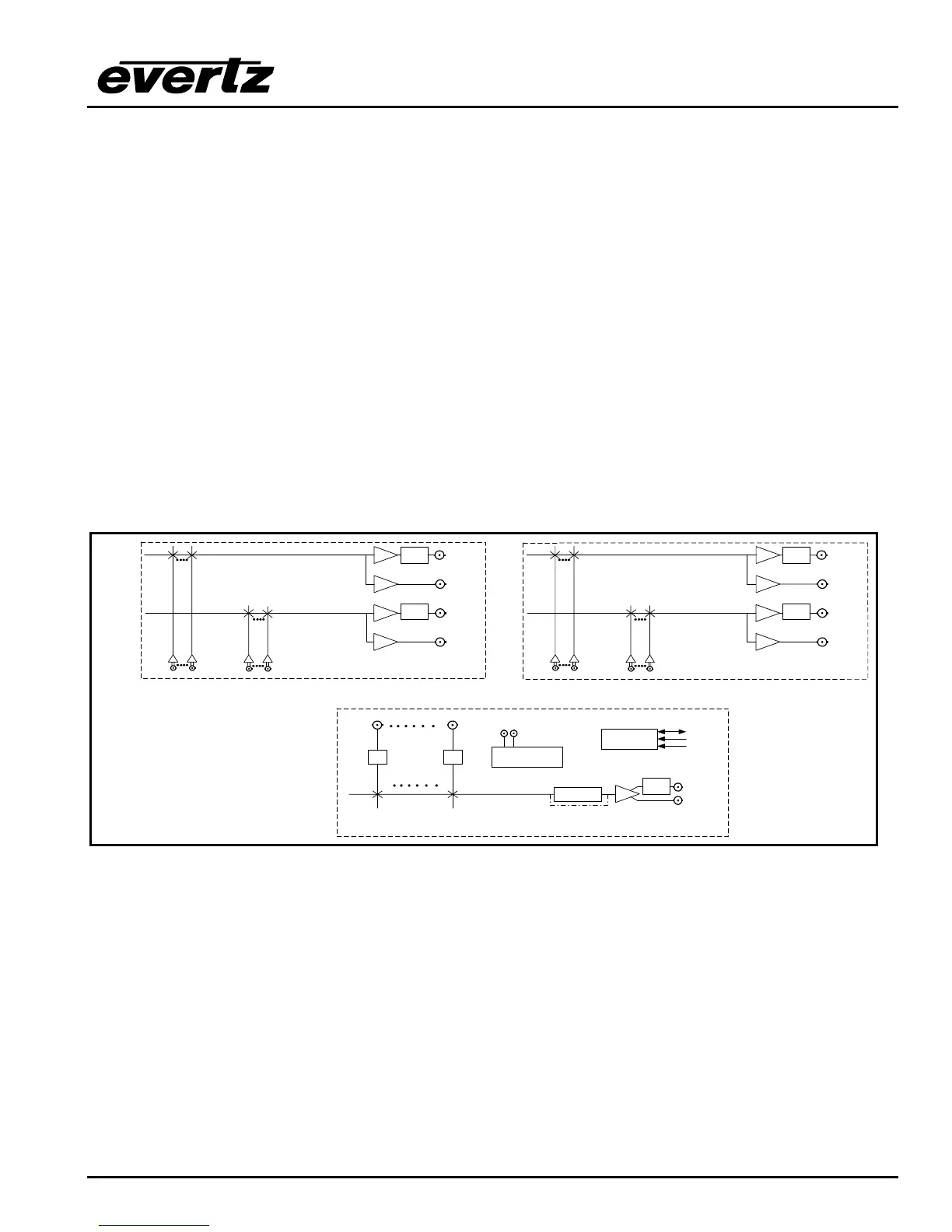

Figure 1-1: X1201 Block Diagram
