X1200 Series Router Manual
SERIAL CONTROL
Revision 1.3.2
Page 6-1
6. VIDEO AND AUDIO OUTPUT CONFIGURATIONS
The following diagrams show the video bus outs and their associated audio buss outputs for each version
of the router. The shaded buttons indicate which buttons are illuminated on the front panel.
6.1. MODEL X1201 - 12 X 1 OUTPUT CONFIGURATIONS
V1

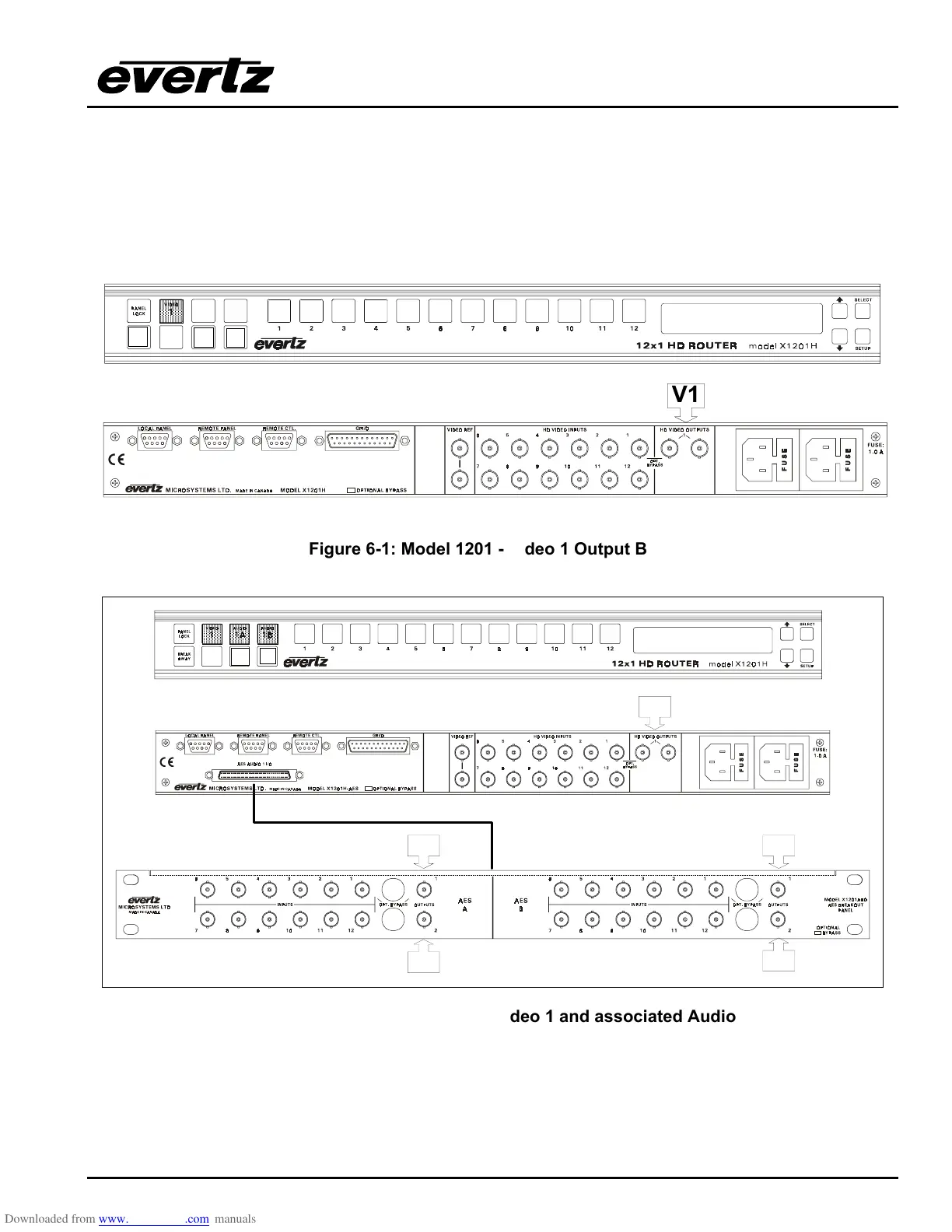

Figure 6-1: Model 1201 - Video 1 Output Buss
1A 1B
V1
1A
1B
Figure 6-2: Model 1201-AES – Video 1 and associated Audio
