Evoqua Rivo I - Page 110

16

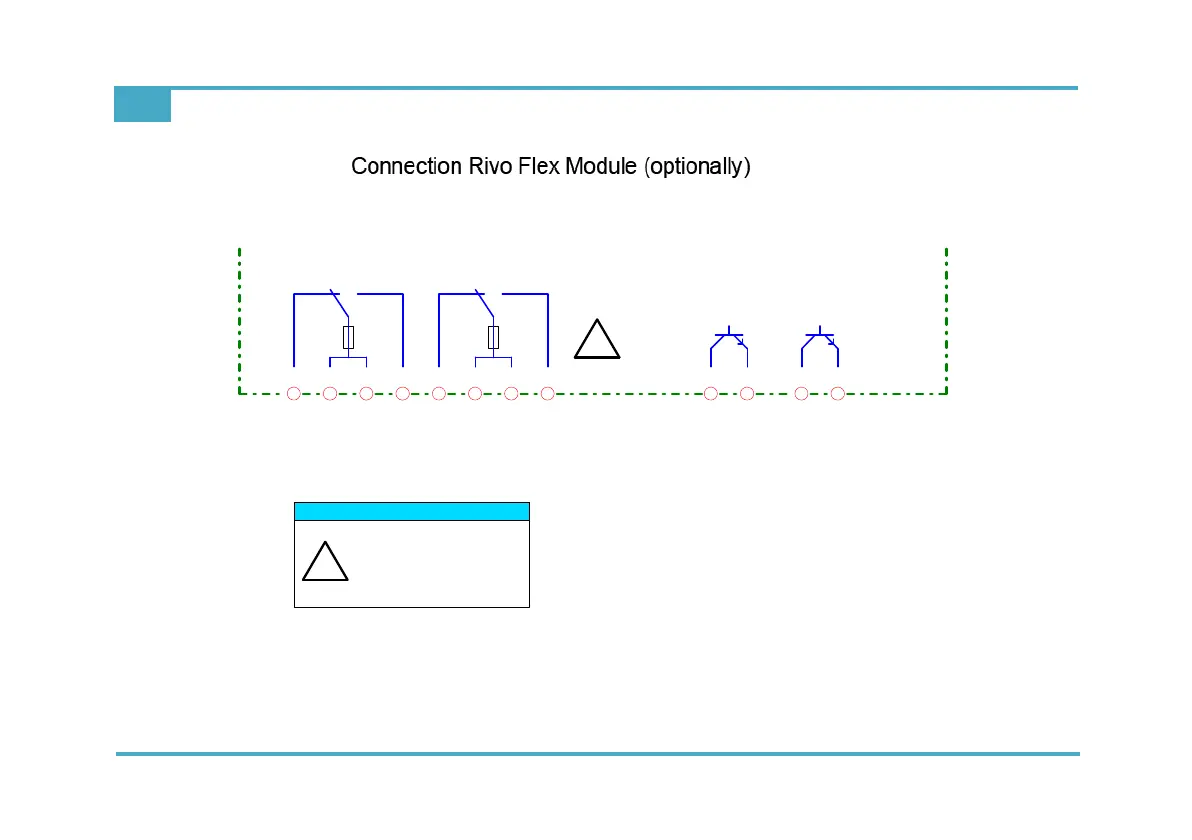

Wiring Diagram
EN Rivo™ I Controller
108
W3T597263 Issue 01-0624 | Evoqua Water Technologies GmbH
page 2 of 2
1 2 4 35 6 8 710 9 12 11
Rivo Flex Mod
2 Rel - 2 DO
+ -
DO 3
+ -
DO 4
max.
40V DC
40mA
max.
40V DC
40mA
alarm signals
K1
F*
5A
K2
F*
5A
F*) Fuse not replaceable
(Without function)
!
Observe permissible
contact load!
See chapter Relay outputs
and technical data.
Note
!
