User Manual METERS February 16, 2010
Xynergi Media Production Centre Page 204
Metering History
The Master Screen Meters keep a history of the ten loudest peaks for each meter, with the timecode
where each peak occurred. The peaks camn be displayed in order of loudness. Overshoots of up to +8.6
dB are shown, although the audio is actually clamped to 0 dB at the channel output.

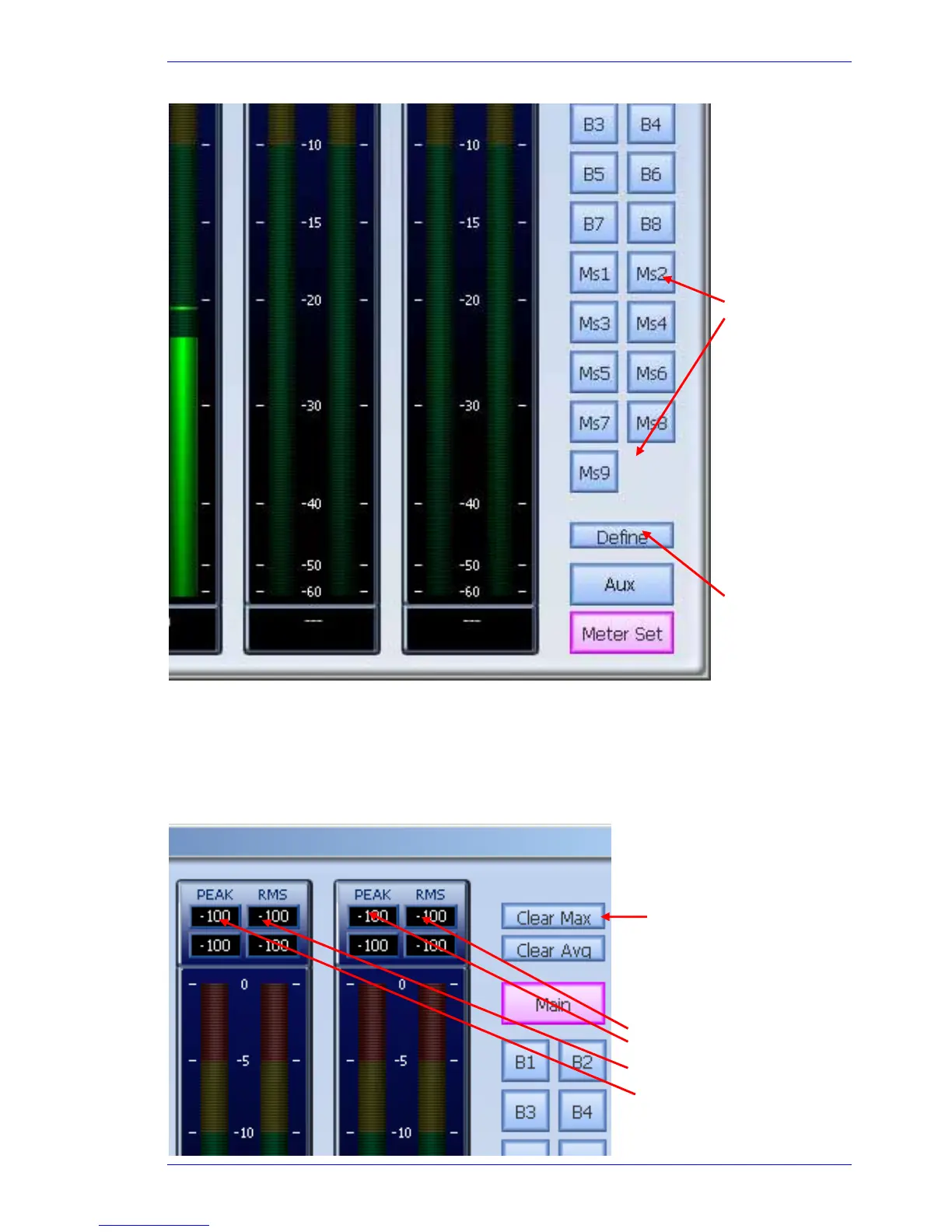

To display history click in the Peak or RMS level display for a meter.
Click any one of
these fields to
display (or hide)
Peak or RMS
history.
Click here to delete
history and start
again. Also clears
peaks and displayed
maximum values.
Choose a
meter set
here
Click here to
define the
current
meter set
