3. Adjustments
USE AND MAINTENANCE MANUAL CHAPTER 3
ADJUSTMENTS2-Strokes - Edition 01 / 2023
105
3
B
A
1

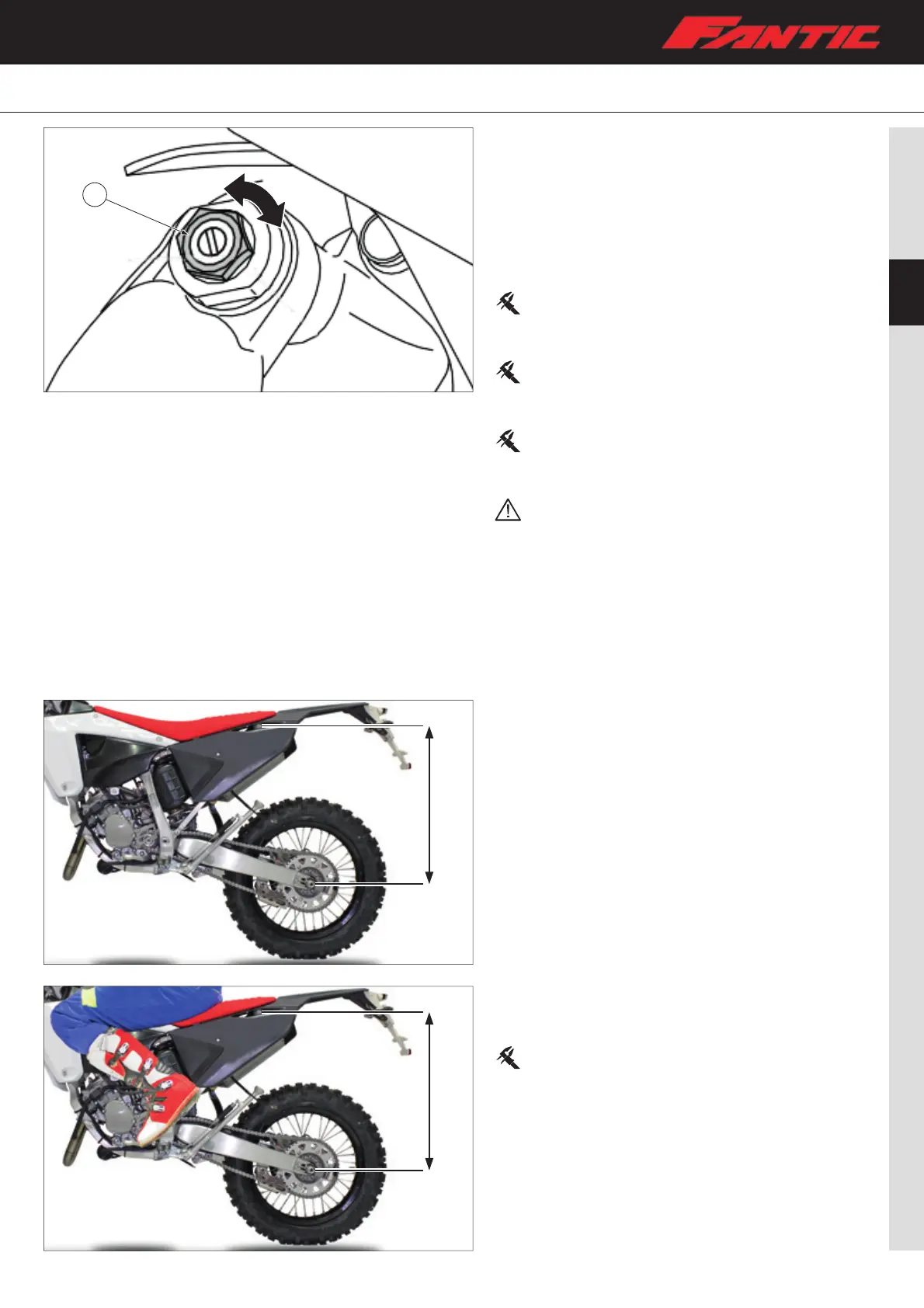

Compression damping adjustment (high speed)
– To adjust the compression damping force at high speed,
turn the adjustment device “1”. The device has a range
of action of 2 turns, from fully closed, rotating
counter-
clockwise
;
– To increase the compression damping force (harder thrust)
rotate the device clockwise;
– To decrease the compression damping force (softer thrust)
rotate the device counter-clockwise.
XX 125 version standard setting:
From all closed, open the register of 1-1/2 +/- 1/6
turns.
XE 125 version standard setting:
From all closed, open the register of 1-5/8 +/- 1/6
turns.
XX 250 version standard setting:
From all closed, open the register of 1-3/8 +/- 1/6
turns.
Do not force the adjuster past the minimum or
maximum extent of adjustment. The adjuster may
be damaged.
3.10 SETTING THE SAG
Rear shock absorber sinking adjustment (SAG) (XE
125 version)
– Place a stand or retainer under the engine to raise the rear
wheel off the floor and measure the distance “A” between
the rear wheel axle and the symbol on the rear mudguard;
– Remove the stand or retainer from the engine and, with
the driver on board, measure the distance “B” between the
rear wheel axle and the symbol on the rear mudguard.
Standard value: 90-100mm
