Fantic XE 125 - Steering Play Control and Adjustment; Steering Play Control; Steering Play Adjustment

4. Maintenance
USE AND MAINTENANCE MANUAL CHAPTER 4
MAINTENANCE2-Strokes - Edition 00 / 2023
137
4
1
2
4
3

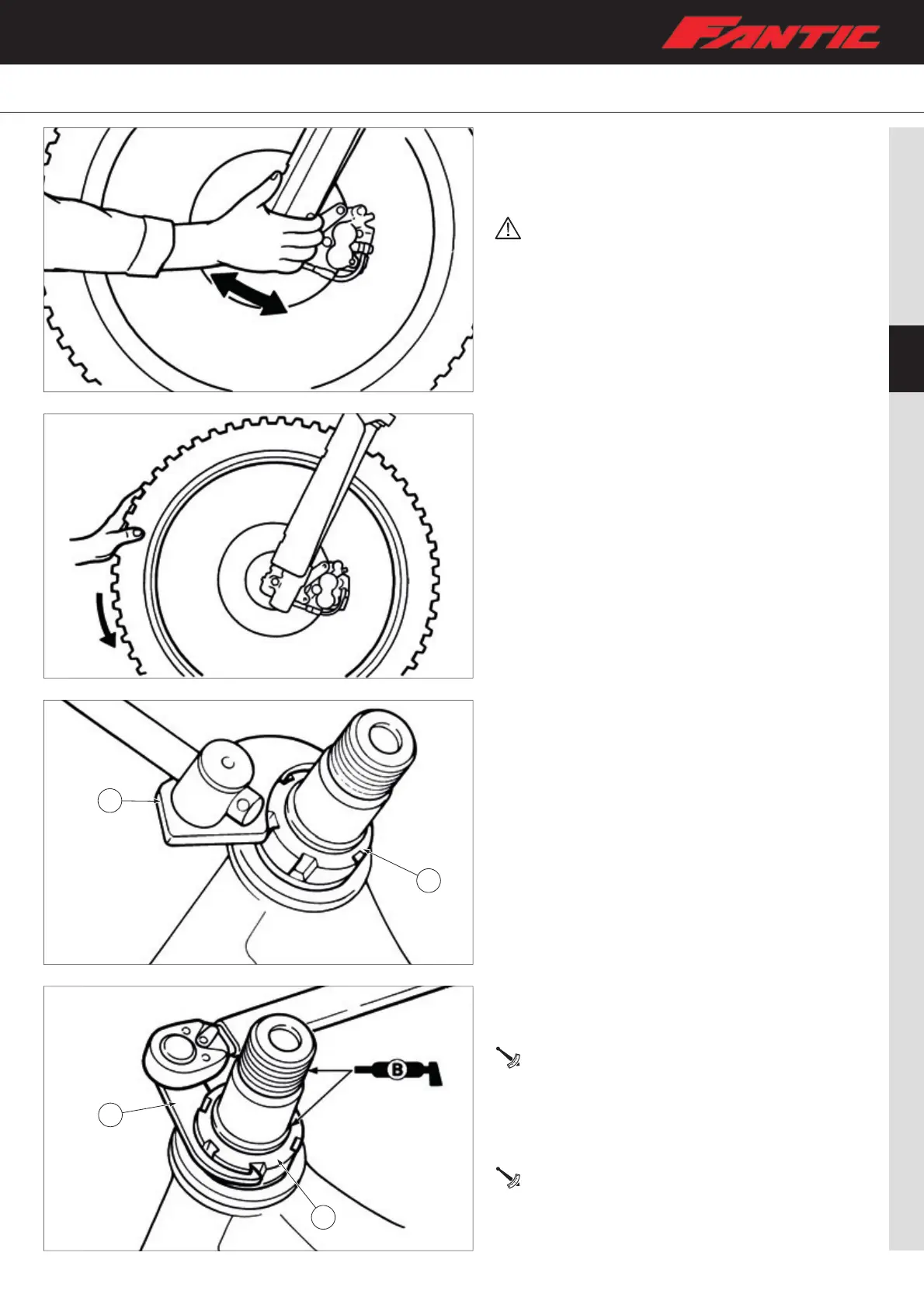

4.7 STEERING PLAY CONTROL AND ADJUSTMENT
Steering play control
– Place a stand under the engine to raise the front wheel off
the ground;
Securely support the vehicle so that there is no
danger of it falling over.
– Grasp the bottom of the forks and gently rock the fork
assembly back and forth. If free play is present adjust the
steering head;
– Check that the steering is working evenly by turning it fully
to the right and left. If play is present, adjust the steering
head.
Steering play adjustment
– Remove the front number plate, the upper fork plate and
the handlebar;
– Loosen the lock nut “1” of the steering ring nut with a ring
nut spanner “2”;
– Start tightening the steering ring nut “3”, with a ring nut
spanner and a torque spanner “4”, to the specified torque;
– Then loosen the steering wheel nut “3” by one turn;
Steering ring nut (initial tightening):
38 Nm (3.8 m•kg, 27 ft•lb)
– Then loosen the steering ring nut “3” by one turn and check
that the steering moves correctly throughout its stroke;
– Finally tighten the steering ring nut “3” to the specified
torque.
Final tightening of the steering ring nut:
7 Nm (0.7 m•kg, 5.1 ft•lb)
