Fantic XE 125 - Clutch Installation

4. Maintenance
USE AND MAINTENANCE MANUAL CHAPTER 4
MAINTENANCE2-Strokes - Edition 00 / 2023
133
4
A
1
2
4
1
3
2

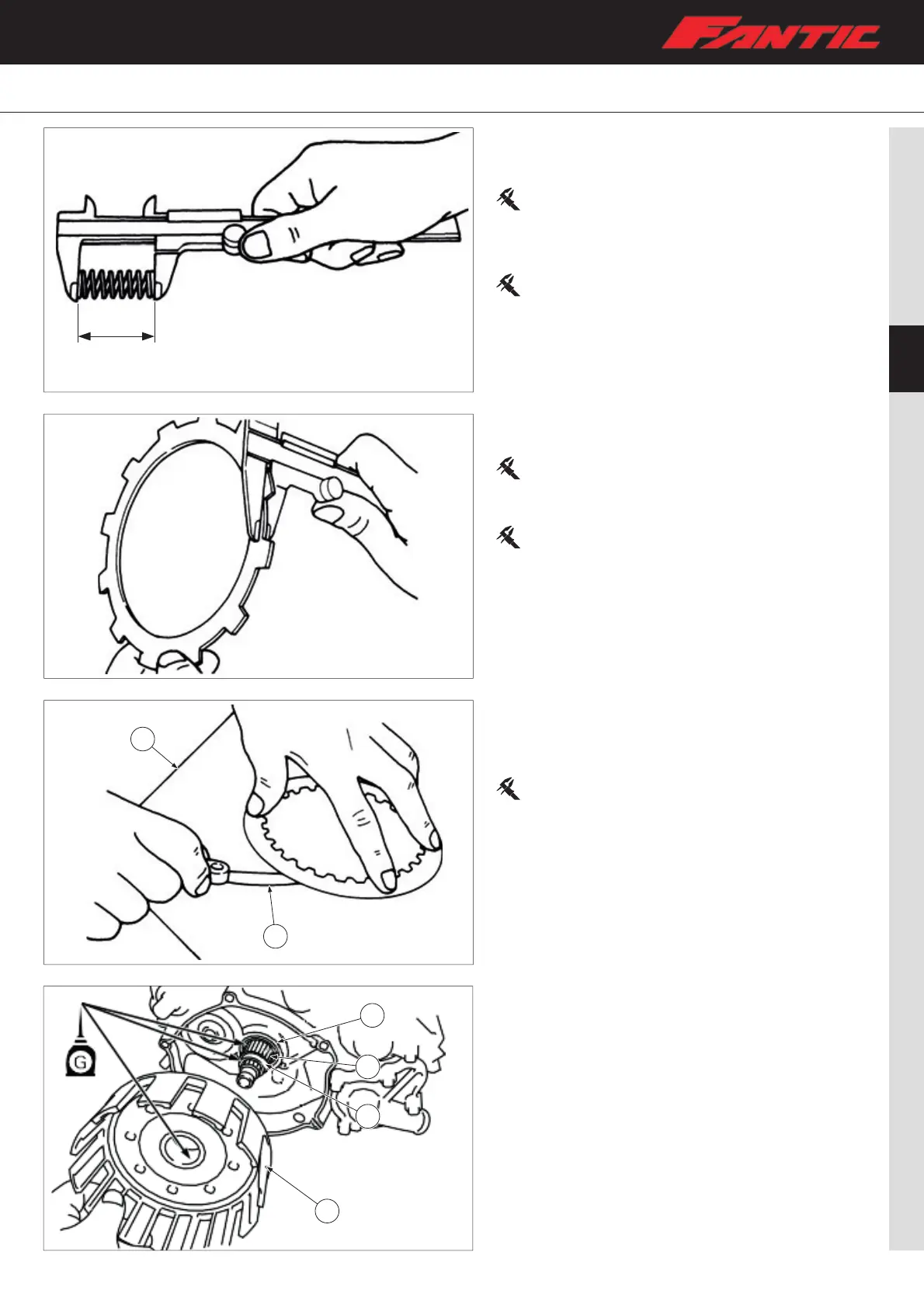

– Measure the free length “A” of the clutch springs. If not in
accordance with the specifications, replace all the springs
simoultanousely;
Clutch spring free length
(XX 125 and XE 125 versions):
41.20 mm (1.62 in)
Minimum limit: 39.20 mm (1.54 in)
Clutch spring free length (XX 250 version):
50.00 mm (1.97 in)
Minimum limit: 48.00 mm (1.89 in)
– Measure the thickness of the driving plates. If not in
accordance with the specifications, replace the plate;
Friction plate thickness:
2.90–3.10mm (0.114–0.122 in)
Minimum limit: 2.80 mm (0.110 in)
Clutch plate thickness:
1.50–1.70mm (0.059–0.067 in)
– Measure the distortion of the driven plates., using a
reference plane “1” and a thickness gauge “2”;
– If not in accordance with the specifications, replace the
plate.
Warp limit: 0.20 mm (0.008 in)
Clutch installation
– Install washer”1”, spacer “2”, bearing “3” and clutch
housing”4”;
