Parts removal (XX 125 / XE 125 versions)

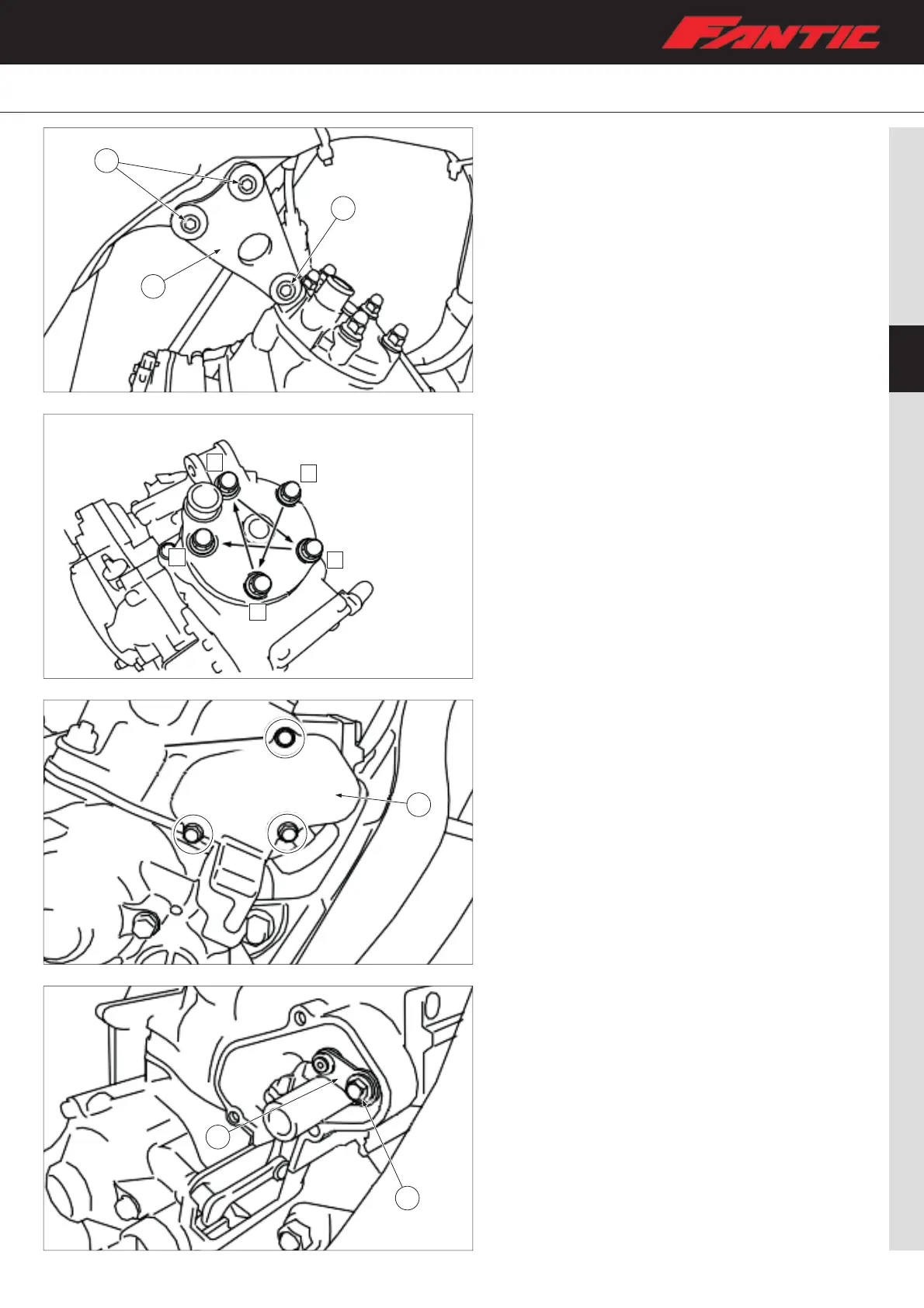

– Remove the spark plug;
– Remove the engine bracket “1”, the bracket fastening bolts
“2” and the engine fastening bolt “3 “;
– Remove the head nuts and the copper washers, in
sequence and following a crossed pattern;
– Then remove the cylinder head “3”;
– Remove the cover “4” and the exhaust valve gasket;
– Remove the thrust rod bolt “5” and the locking rod “6”;
