Fantic XE 125 - Adjustments; Brakes; Front Brake Adjustment; Rear Brake Adjustment

3. Adjustments3. Adjustments
USE AND MAINTENANCE MANUAL CHAPTER 3
ADJUSTMENTS2-Strokes - Edition 01 / 2023
82
2
1
A
A
1
2

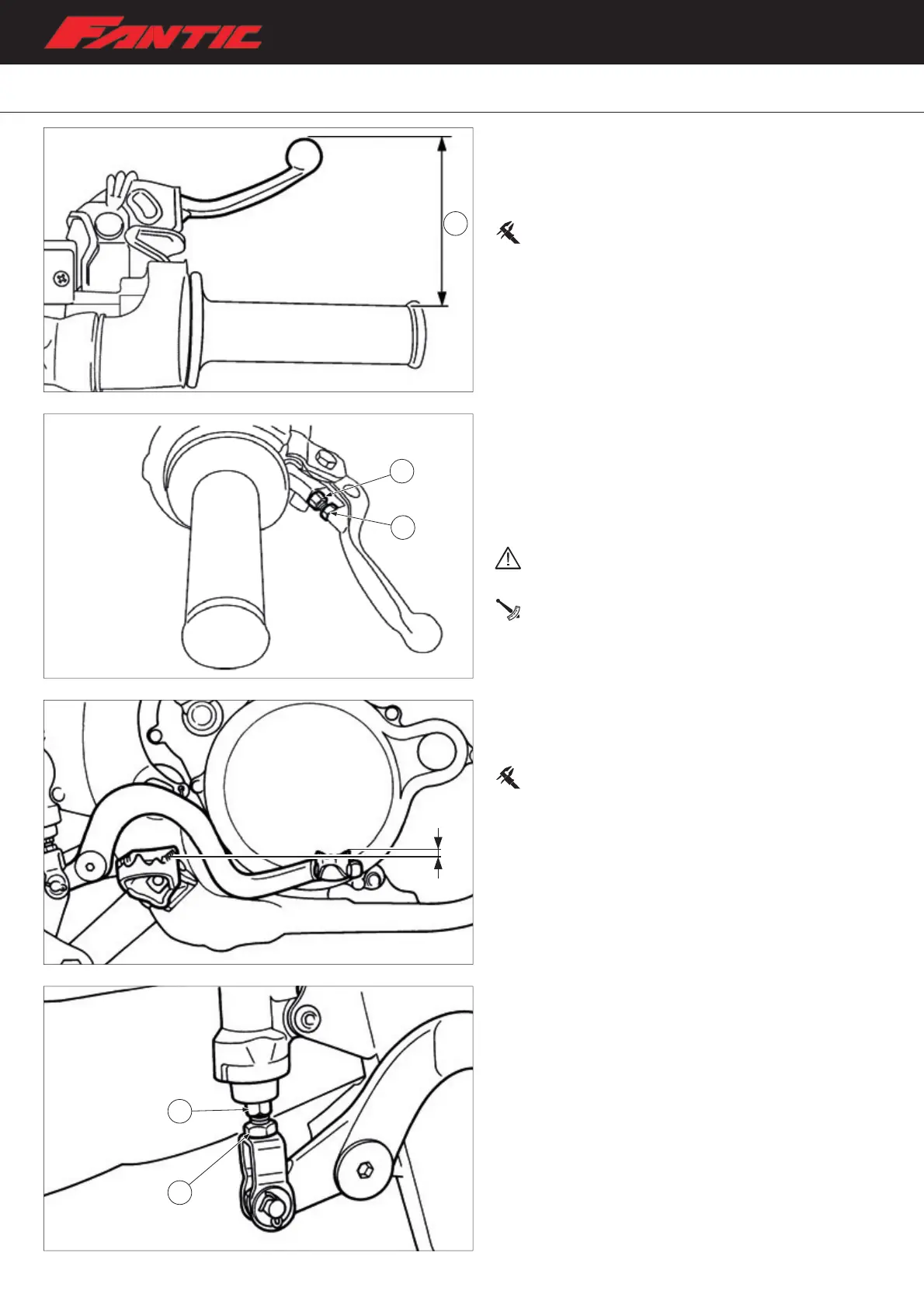

3.1 BRAKES
Front brake adjustment
Check brake lever position “A”. If it is different from the
standard value, adjust it.
Brake lever position “A”:
Standard position: 100 mm (3.94 in)
Adjustment point: 86-105 mm (3.39-4.13 in)
Adjust the brake lever position as described below:
– Remove the brake lever cover;
– Loosen the locknut “1”;
– Turn the adjusting bolt “2” until the lever position “A” is
within specified position;
– Tighten the locknut “1”;
– Reinstall the brake lever cover.
Be sure to tighten the locknut, as it will cause poor
brake performance.
Locknut: 5 Nm (0.5 m•kg, 3.6 ft•lb)
Rear brake adjustment
Check the height of brake pedal “A”. If it is different from the
standard value, adjust it.
Brake pedal height “A”: 0.0 mm (0.00 in)
Adjust the brake pedal height as described below:
– Loosen the locknut “1”;
– Turn the adjusting nut “2” until the pedal height “A” is
within specified height;
– Tighten the locknut.
