Fantic XE 125 - Cylinder Installation (XX 125; XE 125 Versions)

4. Maintenance
USE AND MAINTENANCE MANUAL CHAPTER 4
MAINTENANCE2-Strokes - Edition 00 / 2023
128
2
1
1
3
2
1
1

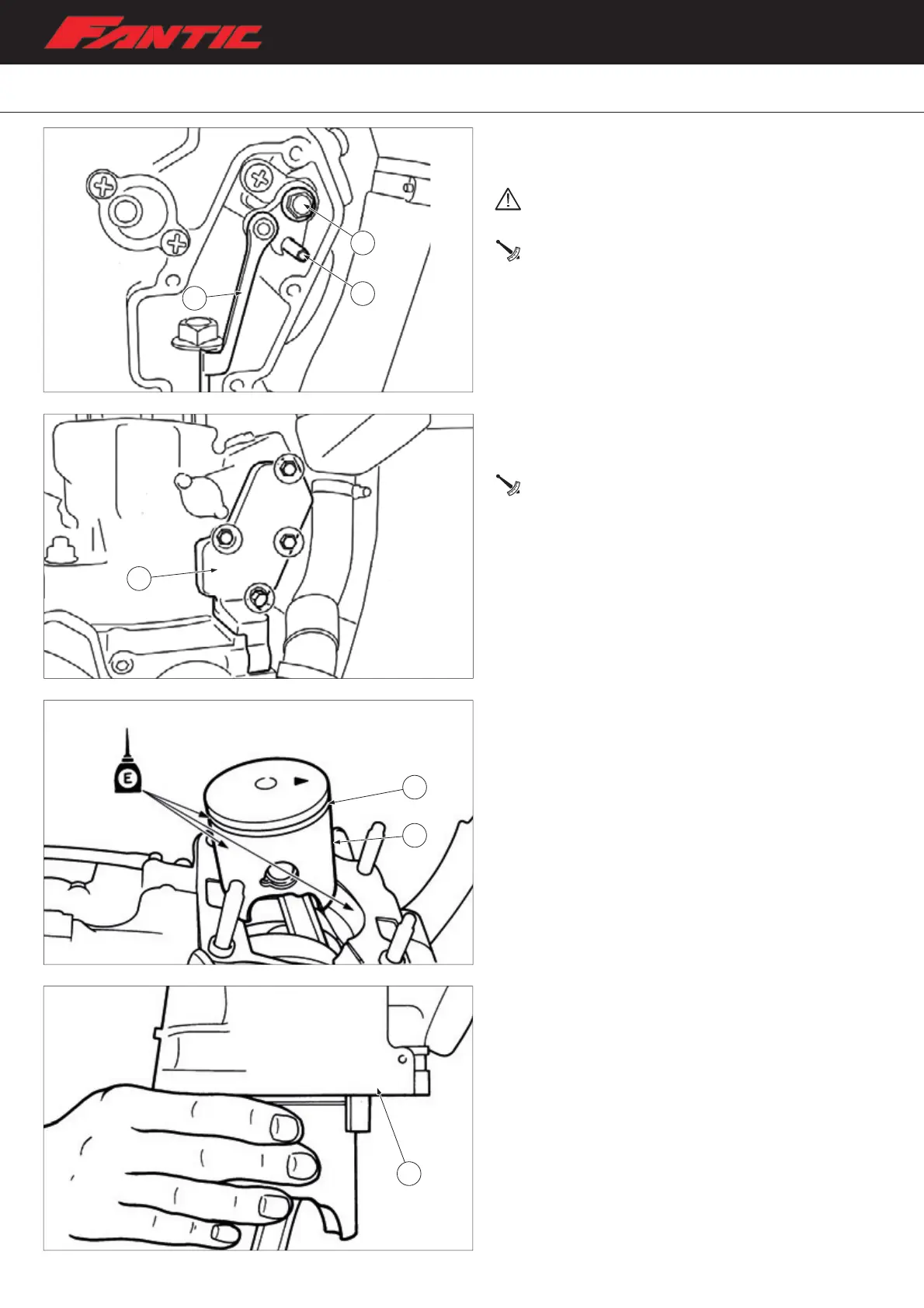

– Install pushrod “1” and its nut “2”;
– Insert the locking pin “3” into the related hole on the
cylinder and tighten the nut “2” to the specified torque.
Be sure to use the locking pin to avoid damaging the
exhaust valve components.
Pushrod nut:
4.5 Nm (0.45 m•kg, 3.3 ft•lb)
– Install a new exhaust valve cover gasket;
– Install the exhaust valve cover “1” and the related fastening
bolts.
Bolt (power valve housing):
4.5 Nm (0.45 m•kg, 3.3 ft•lb)
– Compress the piston ring with one hand, install cylinder
“1” and make sure that the piston moves smoothly;
Cylinder installation (XX 125 / XE 125 versions)
– Apply engine oil to piston “1”, piston ring “2” and cylinder
surface;
