Fantic XE 125 - Check the Clutch Elements

4. Maintenance
USE AND MAINTENANCE MANUAL CHAPTER 4
MAINTENANCE2-Strokes - Edition 00 / 2023
132
1
3
2
1
4
3
2

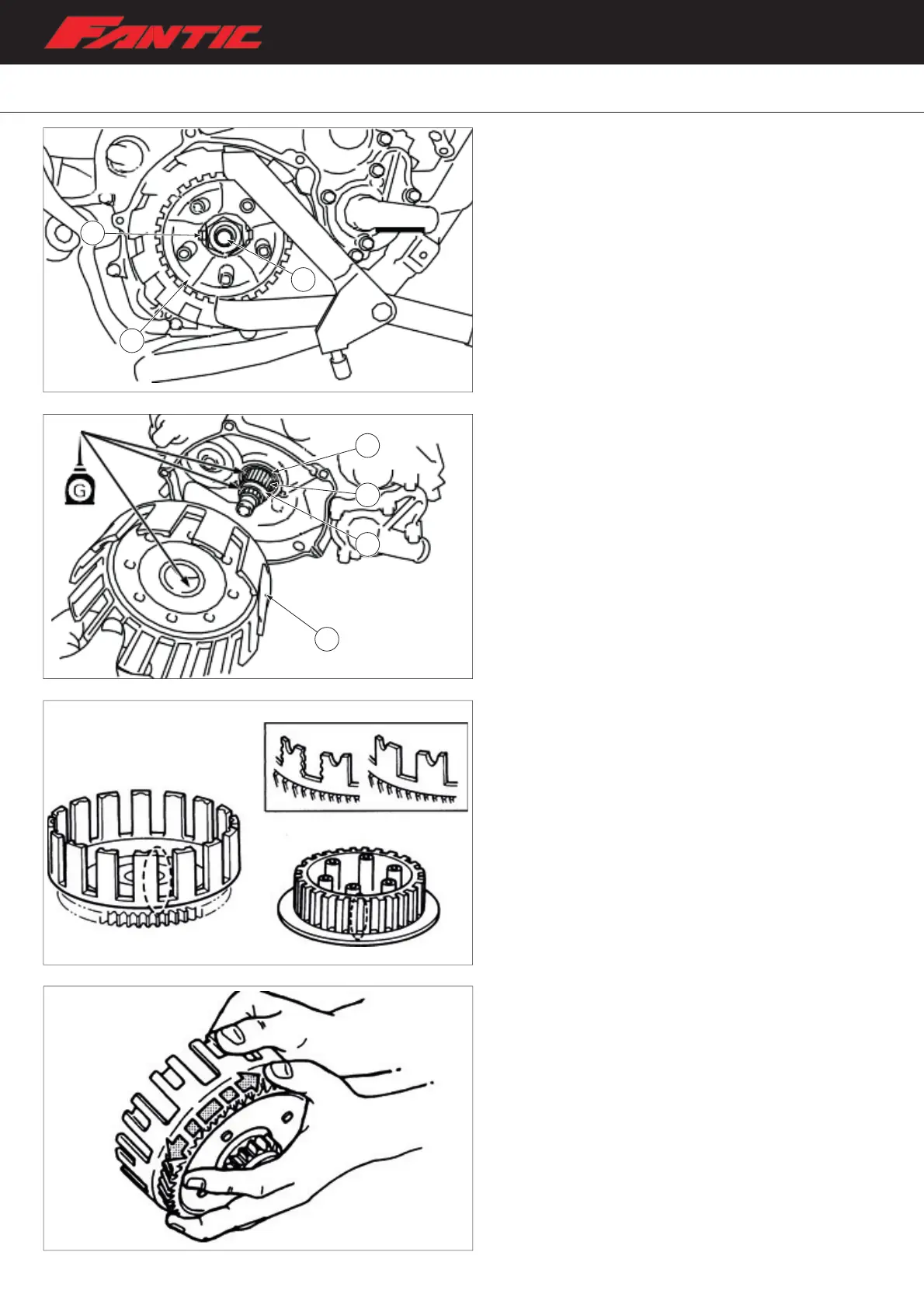

– Remove the clutch housing “1”, the bearing “2”, the spacer
“3” and the washer “4”.
Check the clutch elements
– Check the clutch housing and clutch hub for wear/cracks/
damage, replace them;
– Check the driven gear of the primary transmission for
circumferential clearance and/or damage to the teeth. If it
has one or both defects, replace it;
– Level the tab of the locking washer “1”, lock the clutch hub
“2” with the universal locking tool, unscrew the nut “3”
and remove the hub and washer;
