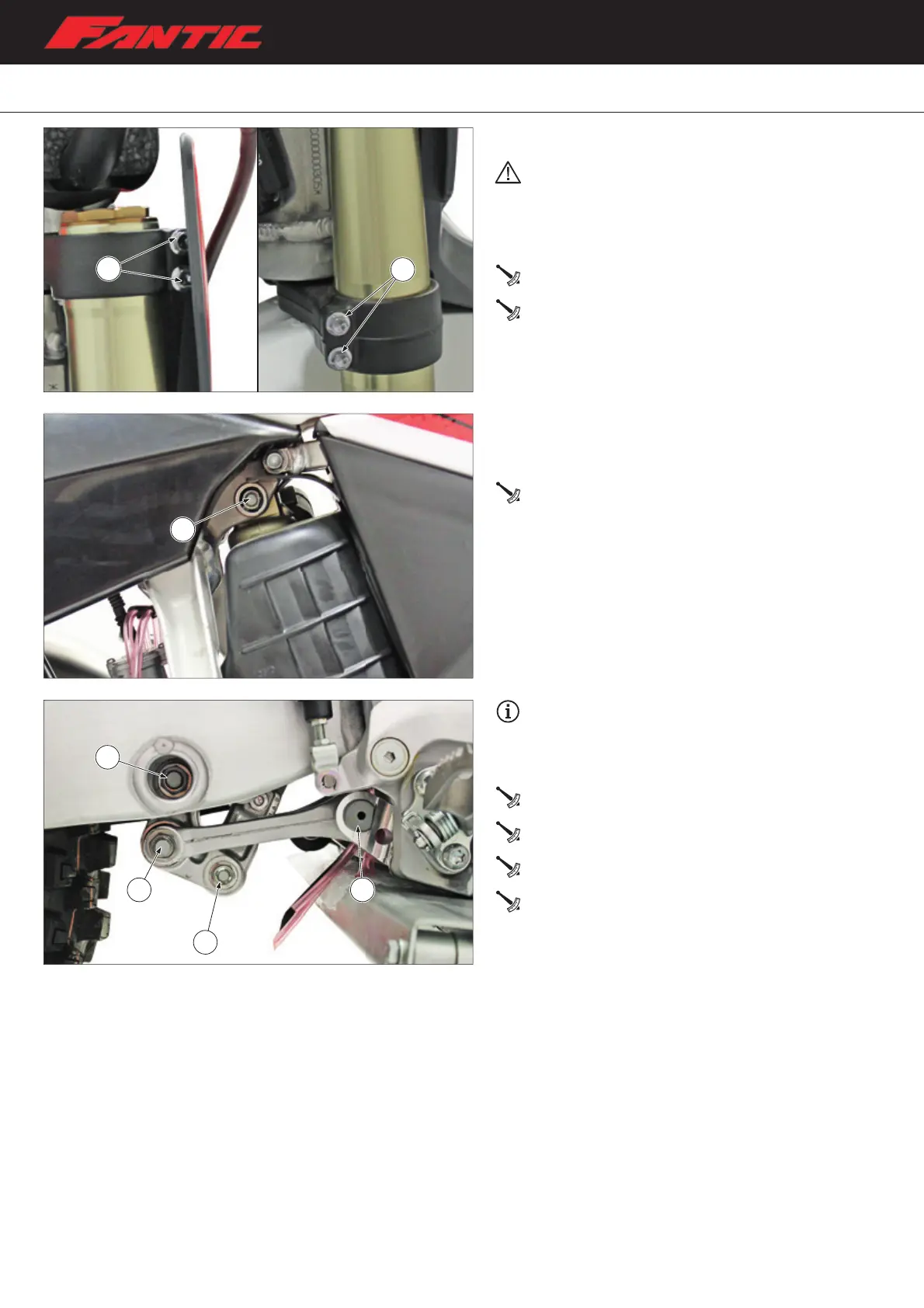

4.9 SHOCK ABSORBER
– Regularly check the upper fastening screw of the shock
absorber “1”. If it is loose, tighten it to the specified torque.
Nut “1”: 56 Nm (5.6 m•kg, 41 ft•lb)
– Regularly check the shock absorber lower fastening screw
“2” and linkage fastening screws “3”, “4” and “5”. If they are
loose, tighten them to the specified torque.
To ensure the best operation and durability of the
rear shock absorber linkage, it is recommended
to check, clean and grease the linkage bearings
periodically.
Nut “2”: 53 Nm (5.3 m•kg, 39 ft•lb)
Nut “3”: 70 Nm (7.0 m•kg, 52 ft•lb)
Nut “4”: 80 Nm (8.0 m•kg, 59 ft•lb)
Nut “5”: 80 Nm (8.0 m•kg, 59 ft•lb)
4.8 FORK
For the maintenance of hydraulic components,
contact an authorised Fantic workshop.
– Regularly check the upper “1” and lower “2” fastening
screws of both stems. If they are loose, tighten them to the
specified torque.
Nut “1”: 21 Nm (2.1 m•kg, 15 ft•lb)
Nut “2”: 21 Nm (2.1 m•kg, 15 ft•lb)
