USE AND MAINTENANCE MANUAL CHAPTER 4
MAINTENANCE2-Strokes - Edition 00 / 2023
141
4
2
1
XX 125
5
2
1
2
XE 125 / XX 250
3
4
5
– Install the brake calliper “5” and tighten the relevant bolts
to the specified torque. Tighten the pad pin “2” and insert
the relative cap previously removed;
Bolt (brake caliper):
28 Nm (2.8 m•kg, 20 ft•lb)
Brake pad pin:
17 Nm (1.7 m•kg, 13 ft•lb)

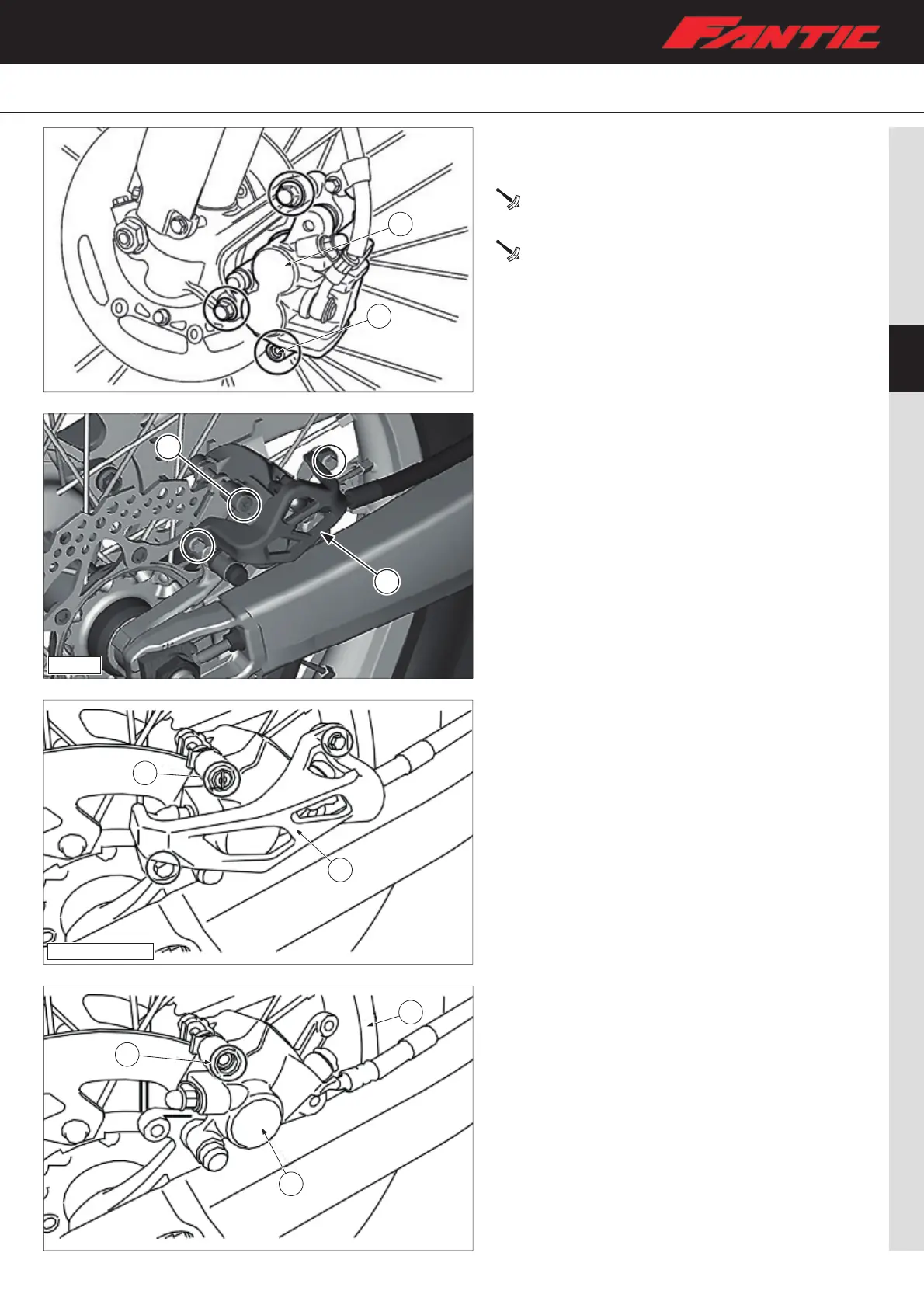

Replace the rear brake pads
– Remove the protection “1” and the pad pin plug “2”;
– Loosen the pad pin “3”, remove the rear wheel “4” and the
brake calliper “5 “;
