4. Maintenance
USE AND MAINTENANCE MANUAL CHAPTER 4
MAINTENANCE2-Strokes - Edition 00 / 2023
142
3
1
XX 125
1
3
XE 125 / XX 250
3
AB
8
6
7

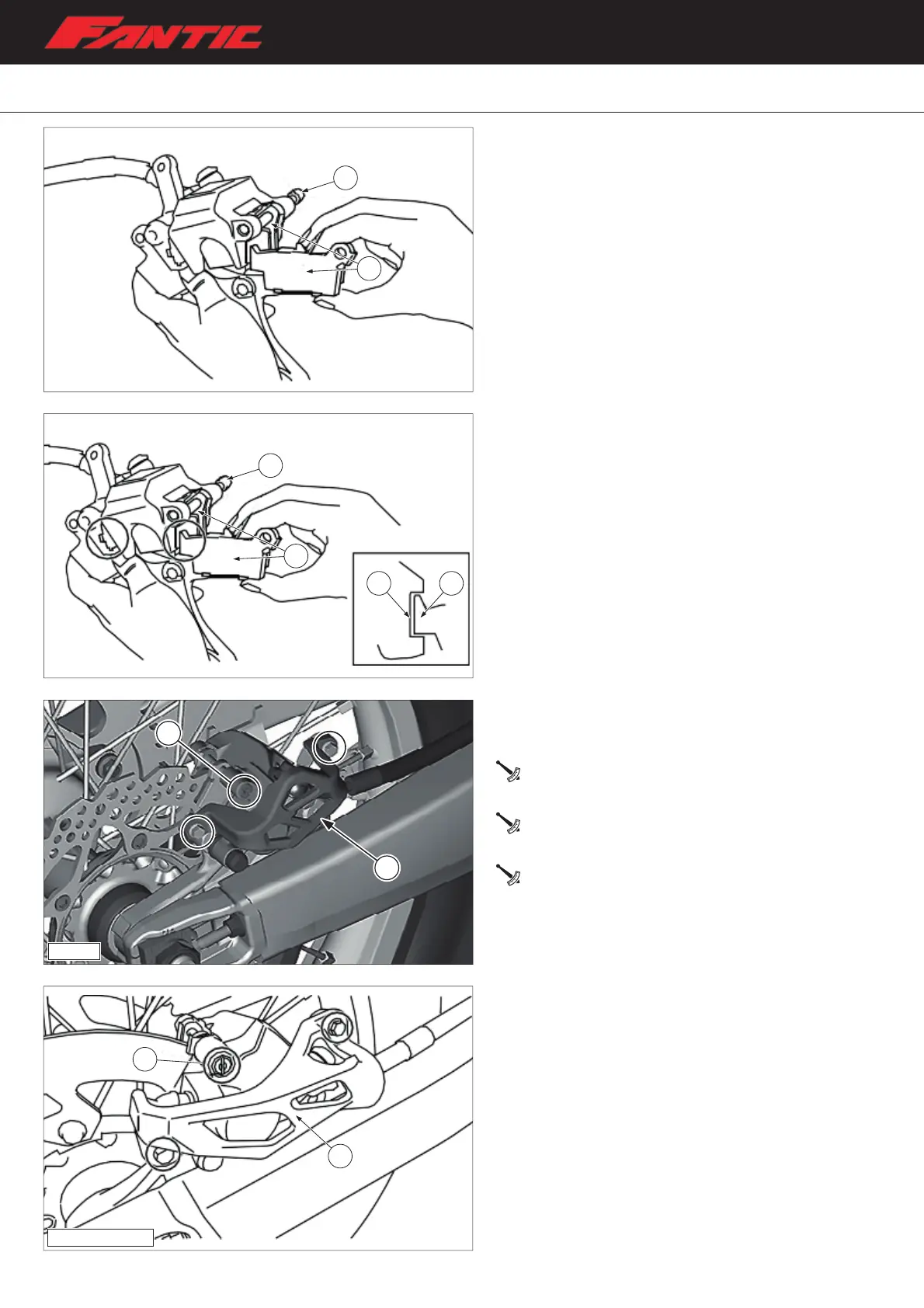

– Remove the pad pin “6” and brake pads “7”;
– Install the brake pads “8” with the relative protrusions
“A” in the recesses “B” of the brake calliper. Temporarily
tighten the pads pin “3”.
– Install the brake caliper “5” and rear wheel “4”. Tighten
the pad pin “3” and install the pad pin plug. Installa the
protector “1”.
Brake pad pin:
17 Nm (1.7 m•kg, 13 ft•lb)
Brake pad pin plug:
2.5 Nm (0.25 m•kg, 1.8 ft•lb)
Rear brake caliper protector bolt:
7 Nm (0.7 m•kg, 5.2 ft•lb)
