Fantic XE 125 - Effect of Setting Parts in Relation to Throttle Valve Opening (XE 125 Version); Standard Carburation Setting (XE 125 Version with Racing Configuration); Standard Carburation Setting (XE 125 Approved Version)

3. Adjustments
USE AND MAINTENANCE MANUAL CHAPTER 3
ADJUSTMENTS2-Strokes - Edition 01 / 2023
89
3
B
A
3/4
1/2
1/4
1/8
3/4
1/2
1/4
1
2
4
3
5
6
7
A
B
1. Pilot air screw
2. Pilot jet
3. Jet needle
4. Diameter of straight portion
5. Clip position
6. Throttle valve
7. Main jet
Standard carburation setting (XE 125 version with “Racing” configuration)
Pilot jet: #60 (07868005)
Main jet: #162 (07917005)
Jet needle: NYCF-2 (09013001), 2 of 5 notches
Pilot air screw: 1–½ turns open
Power Jet: #35 (08995001)
Standard carburation setting (XE 125 approved version)
Pilot jet: #35 (09815005)
Main jet: #105 (09814005)
Pilot air screw: 1–½ turns open
Throttle valve: #35 (08995001)

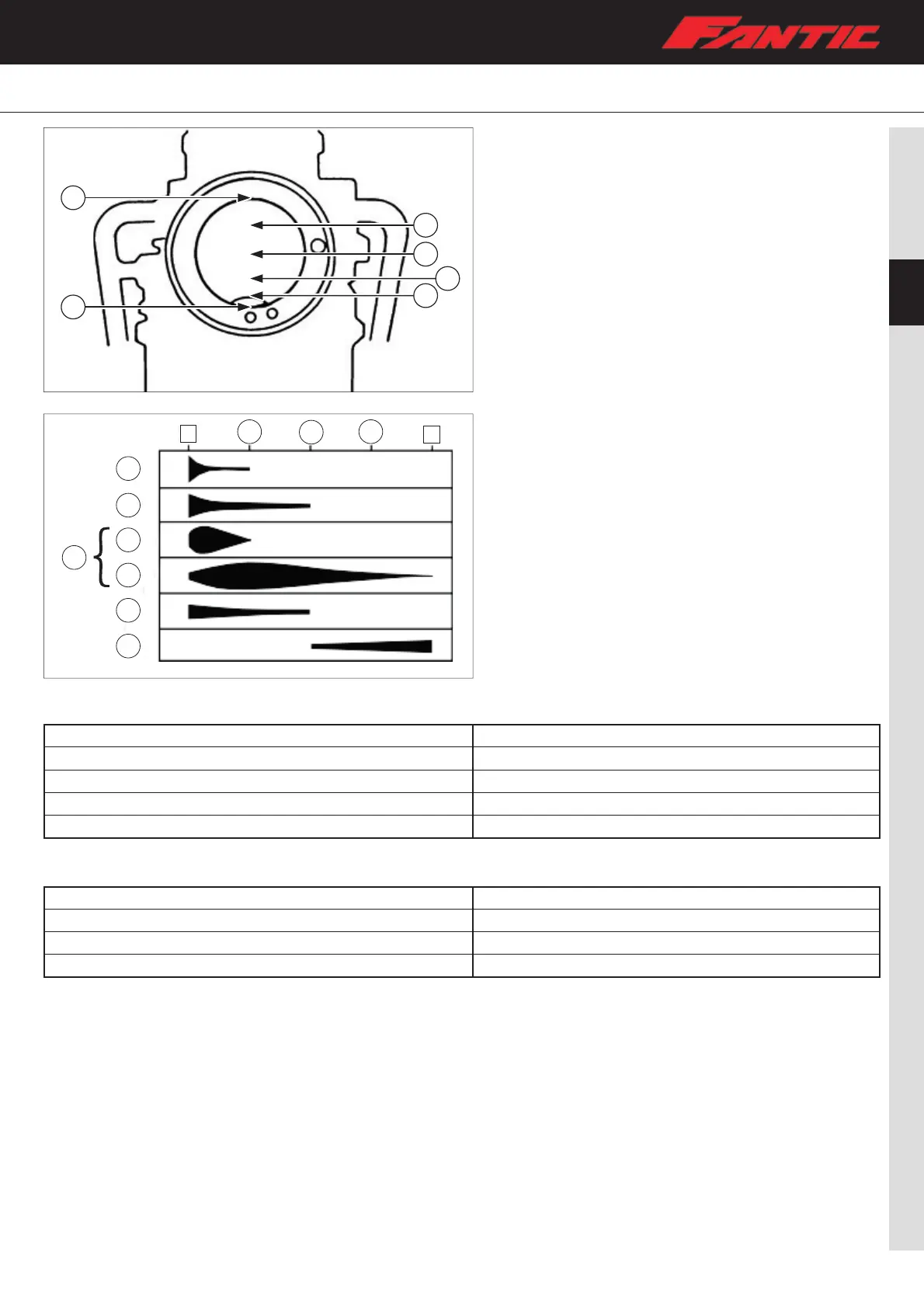

Effect of setting parts in relation to throttle valve
opening (XE 125 version)
A. Closed
B. Full-open
