1. General information
USE AND MAINTENANCE MANUAL CHAPTER 1
GENERAL INFORMATION2-Strokes - Edition 01 / 2023
29
1
Item
Thread size
Quantity
Tightening torque
Remarks
Front fender bolt
◊
M6 4 10 N·m (1.0 kgf·m, 7.4 lb·ft)
Rear fender bolt (front side)
◊
M6 2 7 N·m (0.7 kgf·m, 5.2 lb·ft)
Rear fender bolt (rear side)
◊
M6 2 12 N·m (1.2 kgf·m, 8.9 lb·ft)
Screw (mud flap)
◊
— 2 1.3 N·m (0.13 kgf·m, 0.95 lb·ft)
Side cover bolt (front side)
◊
M6 2 7 N·m (0.7 kgf·m, 5.2 lb·ft)
Side cover bolt (rear side)
◊
M6 2 9 N·m (0.9 kgf·m, 6.6 lb·ft)
Seat bolt
◊
M6 1 11 N·m (1.1 kgf·m, 8.1 lb·ft)
Number plate bolt
◊
M6 1 7 N·m (0.7 kgf·m, 5.2 lb·ft)
Side kickstand bolt [XE 125 only] M10 1 25 N·m (2.5 kgf·m, 18 lb·ft)
TIP (Steering ring nut)
1. First, tighten the steering ring nut approximately 38 N·m (3.8 kgf·m, 28 lb·ft) by using the steering nut wrench, then loosen the
steering ring nut one turn.
2. Retighten the steering ring nut 7 N·m (0.7 kgf·m, 5.2 lb·ft).

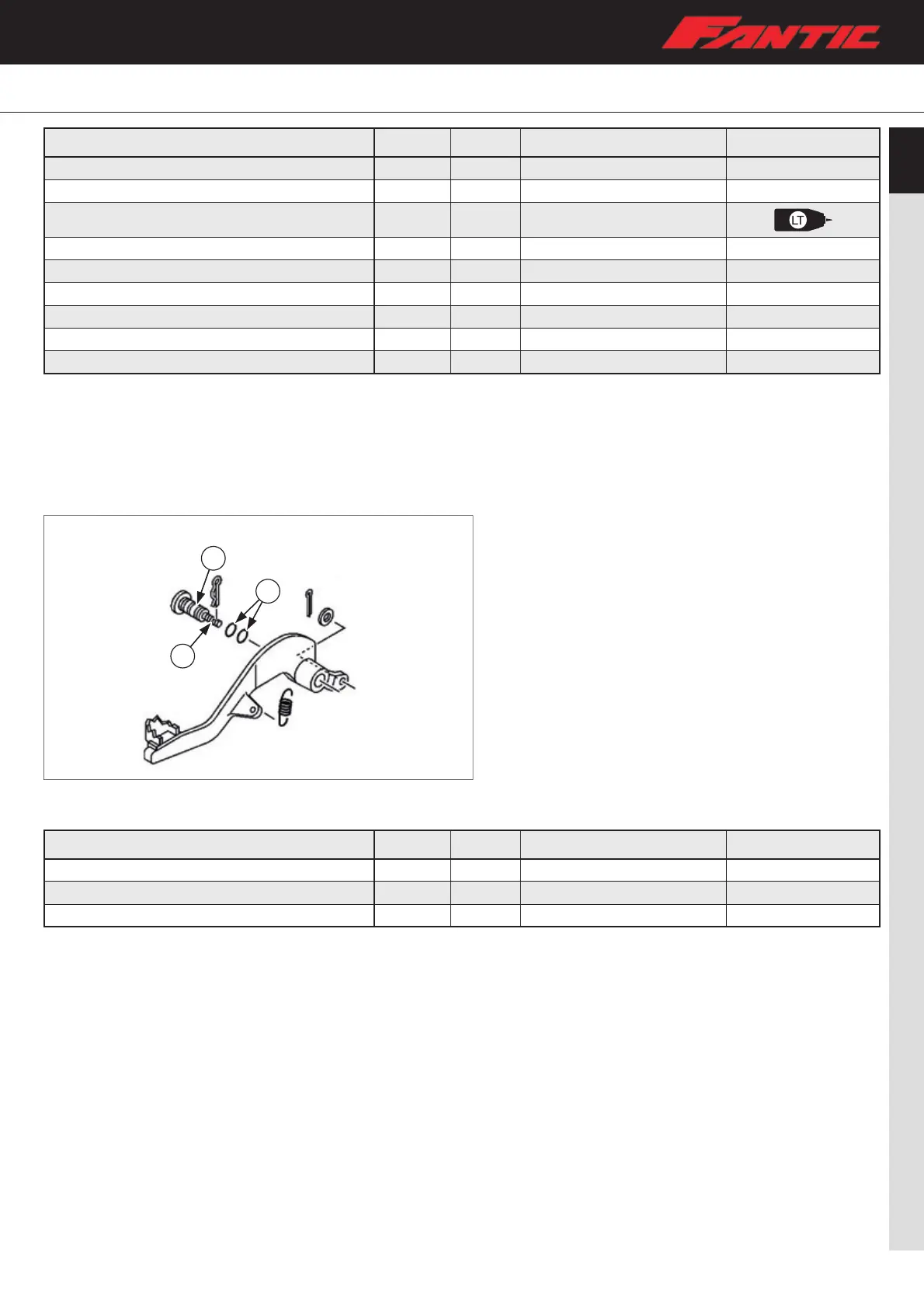

TIP (Rear brake pedal bolt)
When removing/installing the brake lever:
1. Clean the screw and housing of loctite residue.
2. Apply new threadlock “A” on the screw thread and
lithium-based grease “B” on the cylindrical part where
the O-rings fit and on the O-rings as well.
3. Tighten the screw to 26 N·m (2.6 kgf·m, 19 lb·ft).
Electrical
Item
Thread size
Quantity
Tightening torque
Remarks
Stator coil screw M6 3 7 N·m (0.7 kgf·m, 5.2 lb·ft)
CDI magneto rotor nut M12 1 56 N·m (5.6 kgf·m, 41 lb·ft)
Ignition coil bolt M6 2 7 N·m (0.7 kgf·m, 5.2 lb·ft)
A
B
B
