Emergency Procedures
20 4812325559EN 2018-02-20
Multifunction display – Alarms DM1 according to
SAE J1939
When a transmission or engine alarm is activated, the indication
is shown on the screen. The alarm is activated by the engine
and transmission controls, which monitor their functions.
The message, which shows SPN and FMI codes, can be
understood as a relation of failure codes from the engine and
transmission suppliers.
Press the "OK" button on the screen to delete the message.
When a machine alarm is activated, it is shown on the screen
along with an alarm text detailing it.
Press the "OK" button on the screen to delete the message.

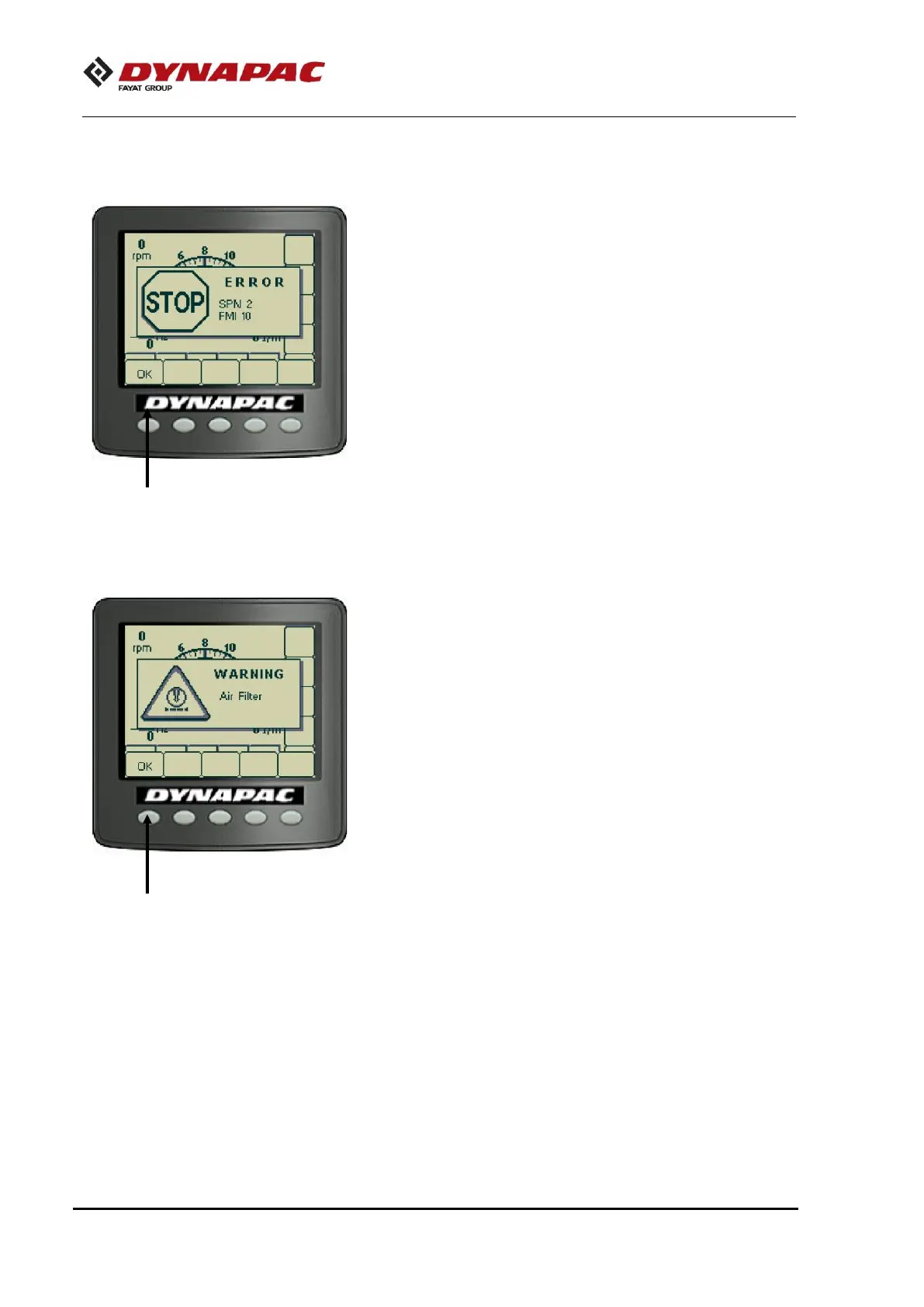

Fig. – Engine and machine alarm screens
