2018-02-20 4812325559EN 19
Multifunction display – General description
(cont.)
When the selection buttons are pressed a menu field is shown
on the screen. The field is shown briefly and then is turned off is
no selection is done. A menu field is shown again when one of
the selection buttons (1) is pressed.
The current failures of the machine will be shown on the lower
side of the screen (2), whereas the active functions will be shown
on the vertical side (3).
Slide/selection buttons to choose amongst
the available functions.
Alarm history button to show engine and
machine alarms.
Definition/menu selection button, which
opens the main menu. The definitions can
be changed in the main menu.
Exit/back button, goes 1 step back at a time.
If the button is pressed for approximately 2
seconds, the main menu is shown again.
Press the selection button (1) to show the temperature and
pressure screen, which shows the engine oil temperature (on
the upper left side), transmission screen (upper right side),
hydraulic oil screen (lower left screen) and transmission oil
pressure screen (lower right side). The values are specified in
Celsius or Fahrenheit degrees and kPa or PSI, according to the
measurement system option.

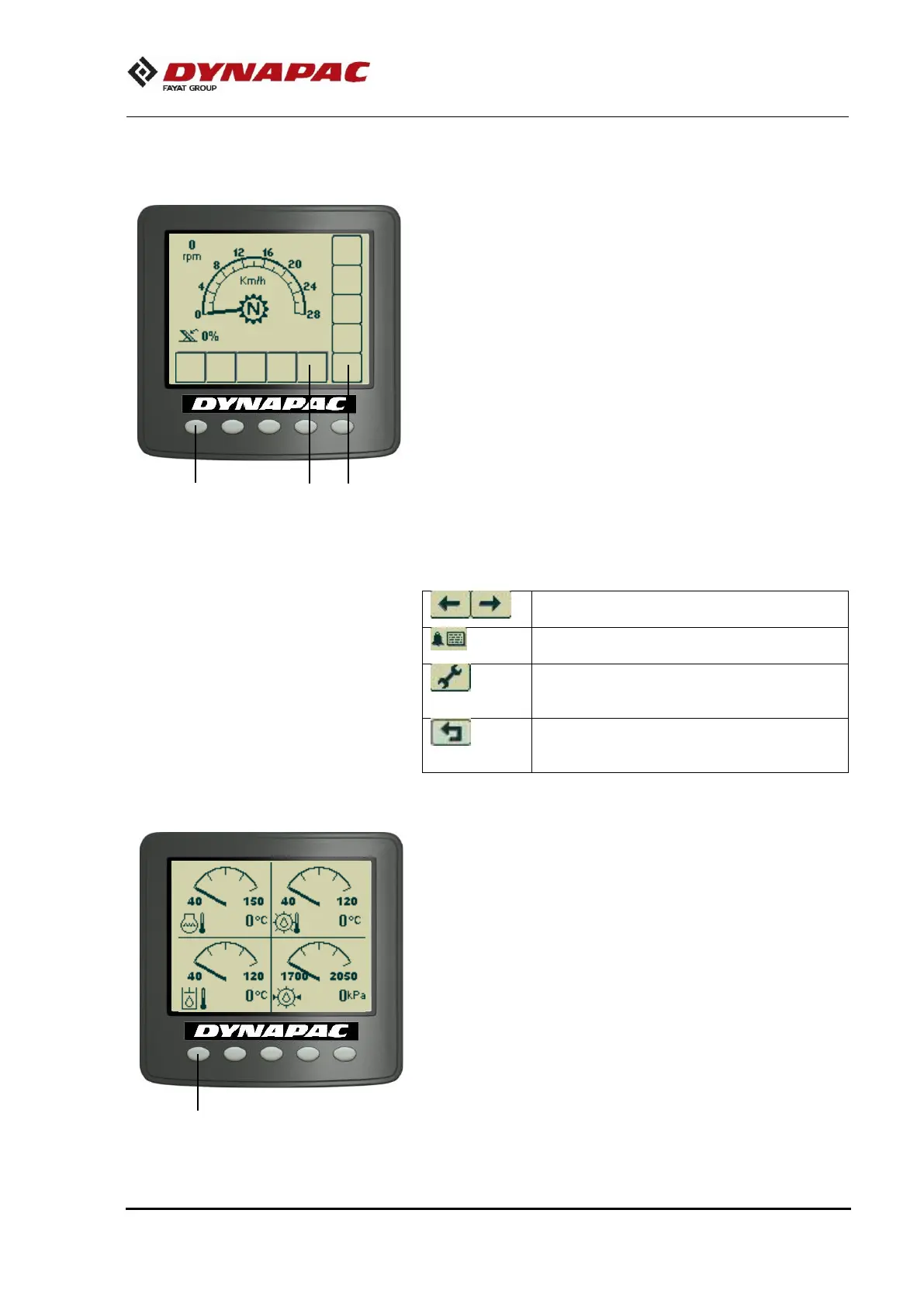

Fig. – Operation main screen with the menu
selection buttons
Fig. – Temperature and pressure screen
