Before starting the engine
30 4812325559EN 2018-02-20
Operator's seat
Adjust the operator’s seat in a way that all the controls are easily
accessible and the machine operation comfortable.
(1) Longitudinal: the adjustment is done through the longitudinal
lever (1).
(2) Height adjustment: performed through the 1
st
adjust button.
Turn it clockwise to lift and anti-clockwise to lower it (2).
(3) Seat inclination adjustment: performed through the 2
nd
adjust button. Turn it clockwise to lift and anti-clockwise to
lower it (3).
(4) Backrest inclination adjustment: use the adjust button (4) for
the real angle of inclination of the backrest.
(5) Armrest inclination adjustment: the adjustment is performed
through the button (5) that can be found under the armrest,
turning it to the right or left.
(6) Lumbar rest adjustment: to adjust it rotate the button (6)
clockwise or anti-clockwise.
Sub-abdominal seat belt
If the machine is enabled with cab, the operator should use the
seat belt.
To adjust the seat belt, pull the retraction mechanism in a
uniform way, taking the necessary cautions so it can adjust
comfortably around the waist. The seat belt will jam if pulled
sharply , or if the machine is parked on a slope or very stepped
bank.
Introduce the buckle until you hear a “click”. In
any other way the seat belt will not be locked.
To release the seat belt, press the red button. Afterwards, allow
the seat belt to be completely retracted.

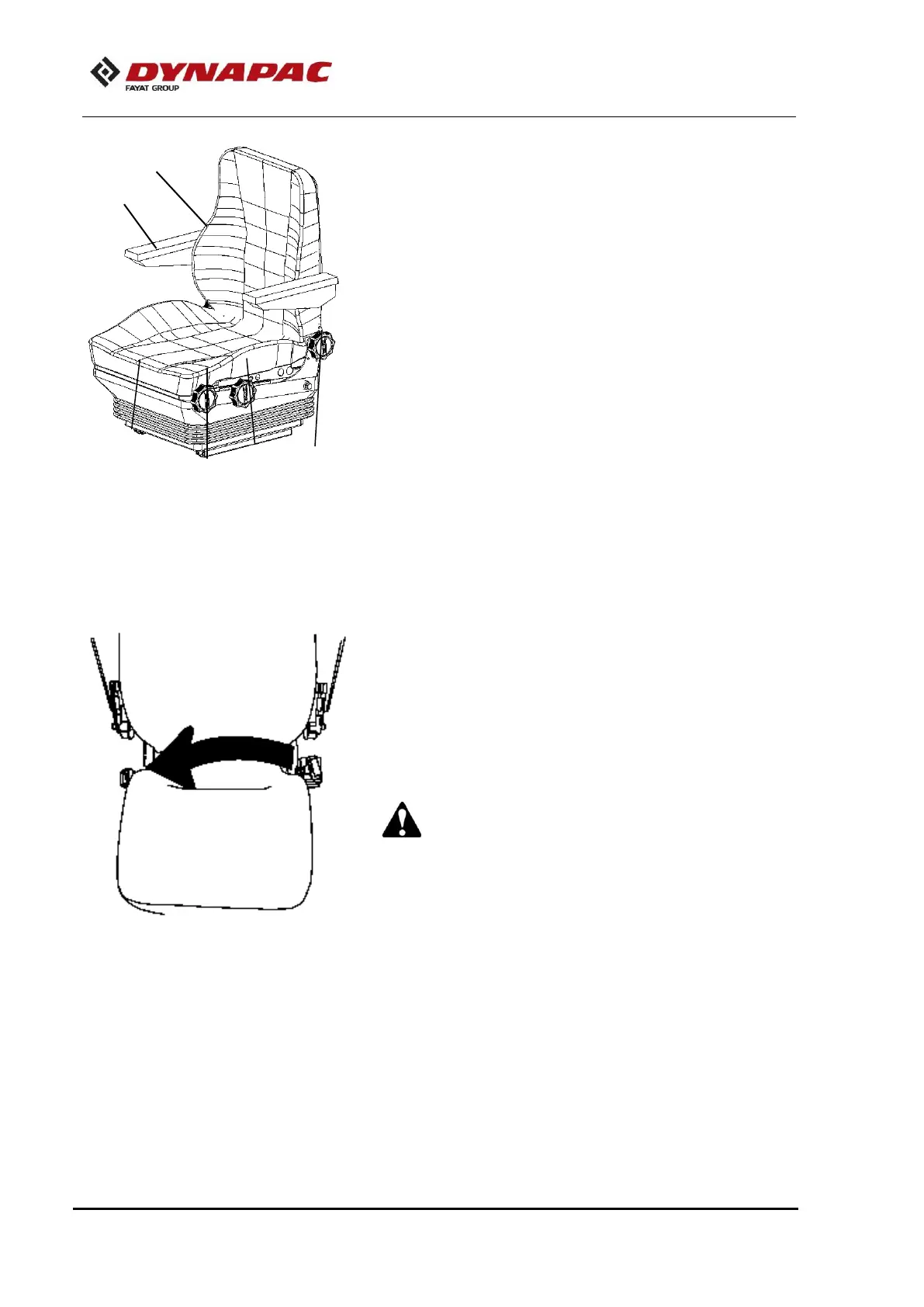

Fig. – Operator's seat
