4. Input modules type CP−E16−M...−EL and CP−E32−M8−EL
4−8
Festo P.BE−CPEA−CL−EN en 0711a
H−rail mounting The module is suspended from above in the H−rail (see arrow
A in Fig.4/5).
The module is earthed via the clamping component (see
arrow B in Fig.4/5). The clamping component and the mount
ing screw are included with the module.

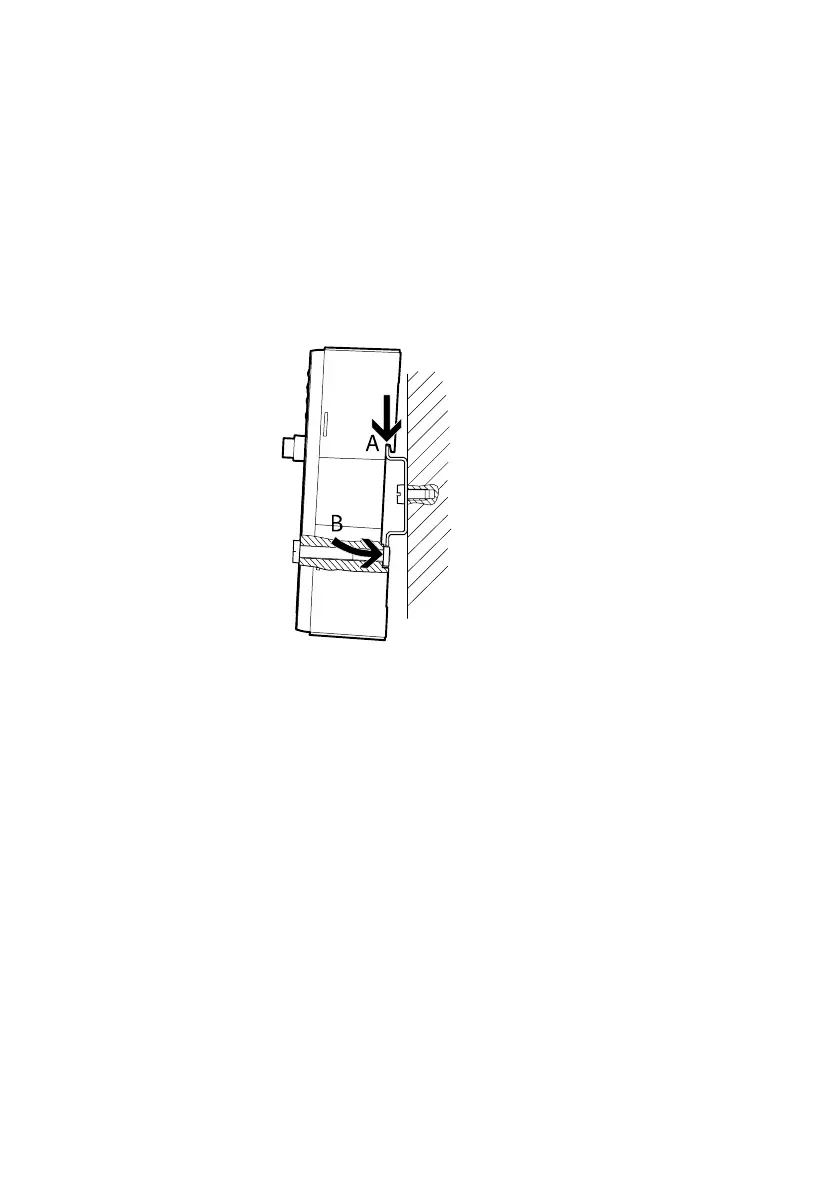

Fig.4/5: H−rail mounting input module CP−E...−EL
