4. Input modules type CP−E16−M...−EL and CP−E32−M8−EL
4−12
Festo P.BE−CPEA−CL−EN en 0711a
Pin allocation (PNP inputs)

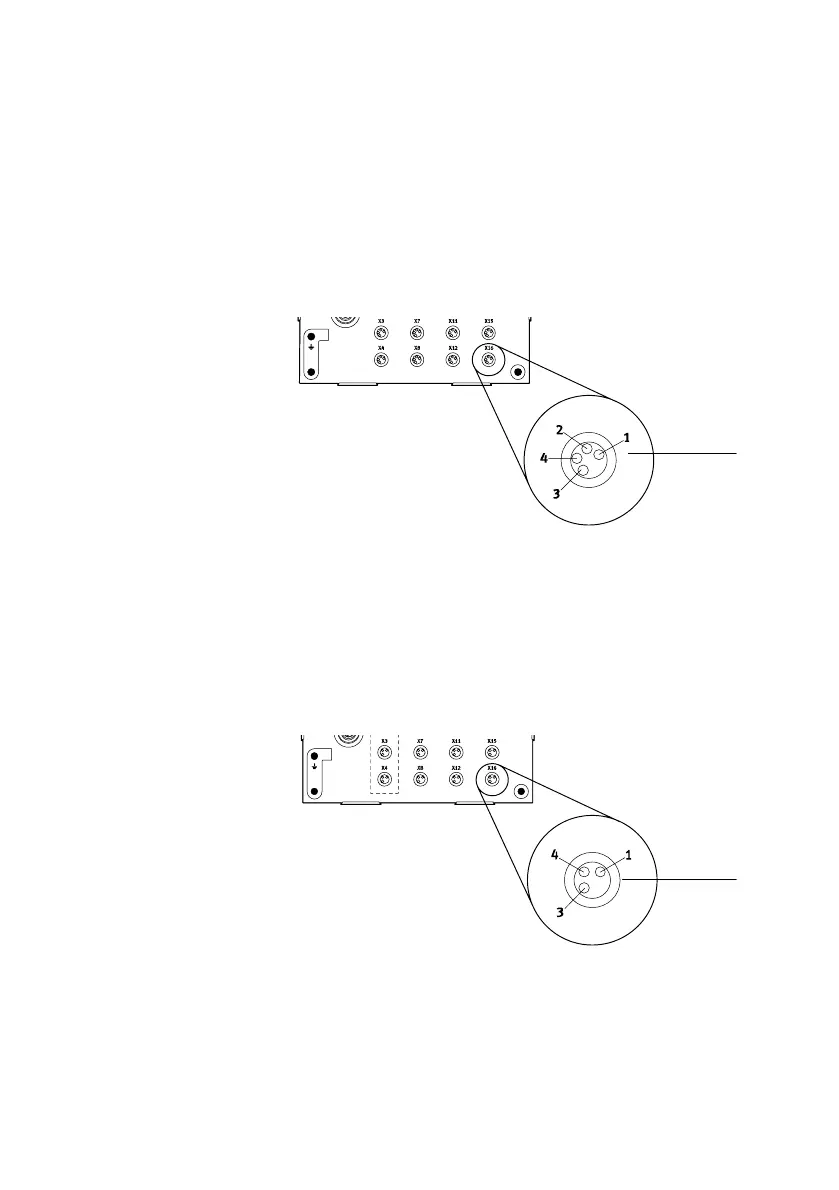

The following dia grams show as an exampl e the pi n allocation of
the sensor connections of the di fferent CP...EL input modules.
Pin allocation
1 1: 24V
2: Ix+1
3: 0V
4: Ix
Ix = Input x
1
Fig.4/7: Pin allocation type CP−E32−M8−EL
Pin allocation
1 1: 24V
3: 0V
4: Ix
Ix = Input x
1
Fig.4/8: Pin allocation type CP−E16−M8−EL
