4. Input modules type CP−E16−M...−EL and CP−E32−M8−EL
4−13
Festo P.BE−CPEA−CL−E N en 0711a
Pin allocation
1 1: 24V
2: Ix+1
3: 0V
4: Ix
5: FE
Ix = Input x
1

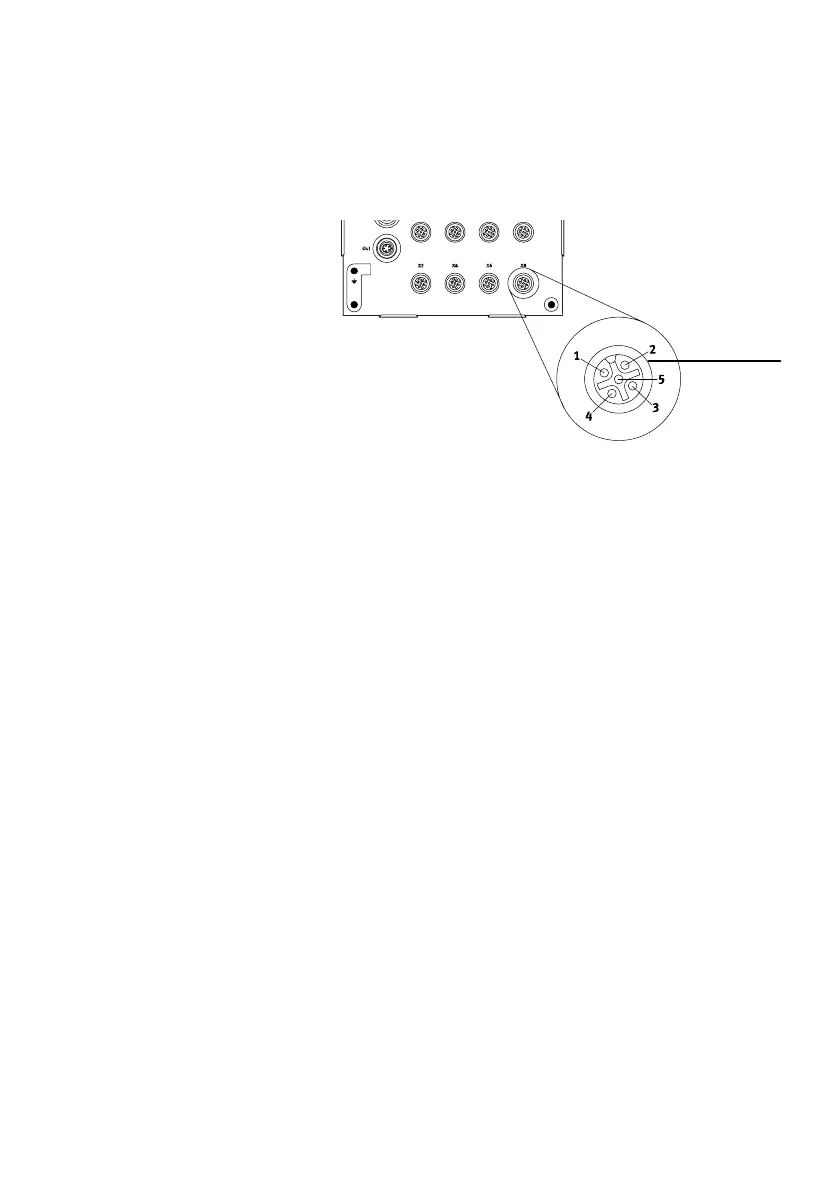

Fig.4/9: Pin allocation type CP−E16−M12−EL
Use screw connector plugs from the Festo range
(see Appendix A.6.4) for connecting sensors.
