5. Output module type CP−A08−M12−EL−Z
5−15
Festo P.BE−CPEA−CL−E N en 0711a
LED (red)
channel
Operating status Error handling
LED is out
No short circuit/overload · None
LED lights up
Display channel:
(1 per output)
Short circuit/overload out
put (display output)
· Eliminate short circuit and delete the fault
1)
1)
Fault will not be deleted automatically.

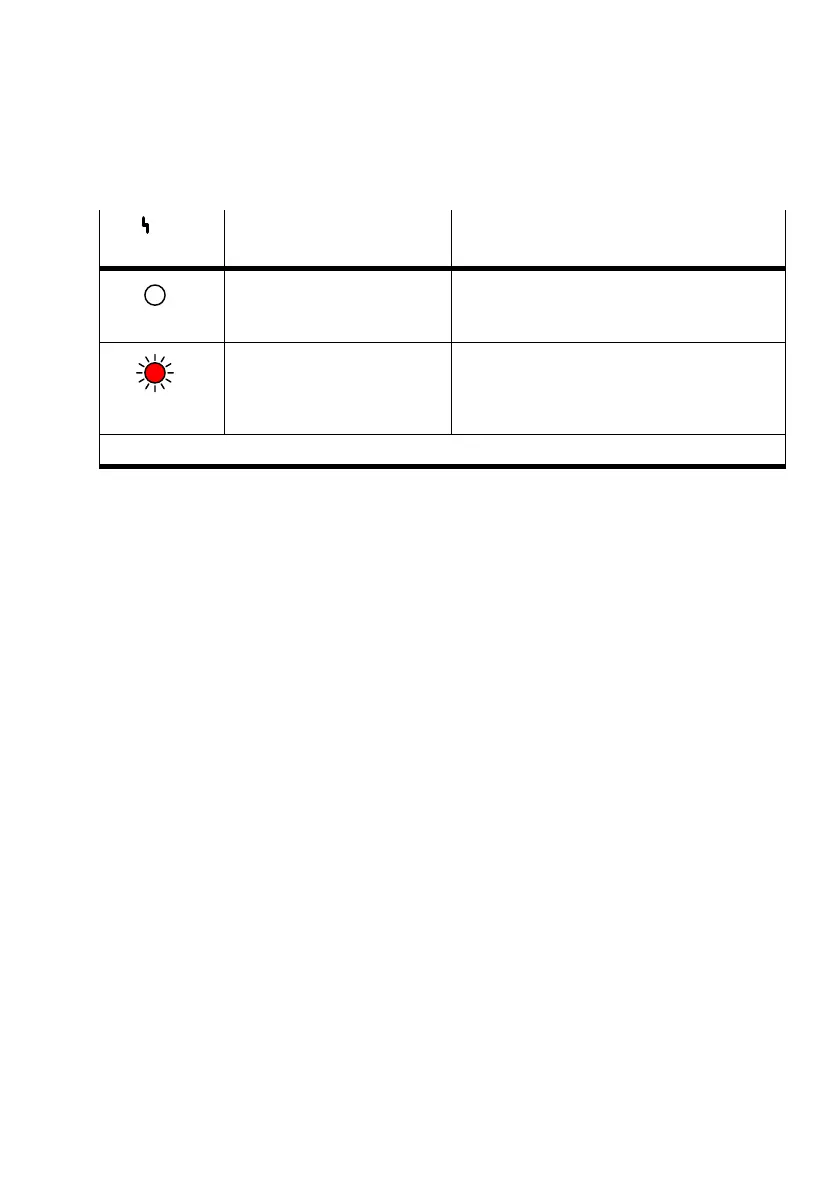

Tab.5/7: Status LED short circuit/overload output (display channel)
Reaction to short circuit in the load supply
Short circuit/overload If there is a short circuit/overload, the output module will
switch off the output self−holding and communicate the fault
to the CP master. In case of short circuit, the output remains
switched off. When the short circuit has been eliminated,
delete this fault as follows:
· To reactive the output, the power supply or the complete
module must be separated from the power supply. Only
resetting the output does not trigger either the error
message or the blocking of functions.
