5. Diagnostics and error handling
5−31
Festo P.BE−CPX−CMAX−SYS−EN en 0908NH

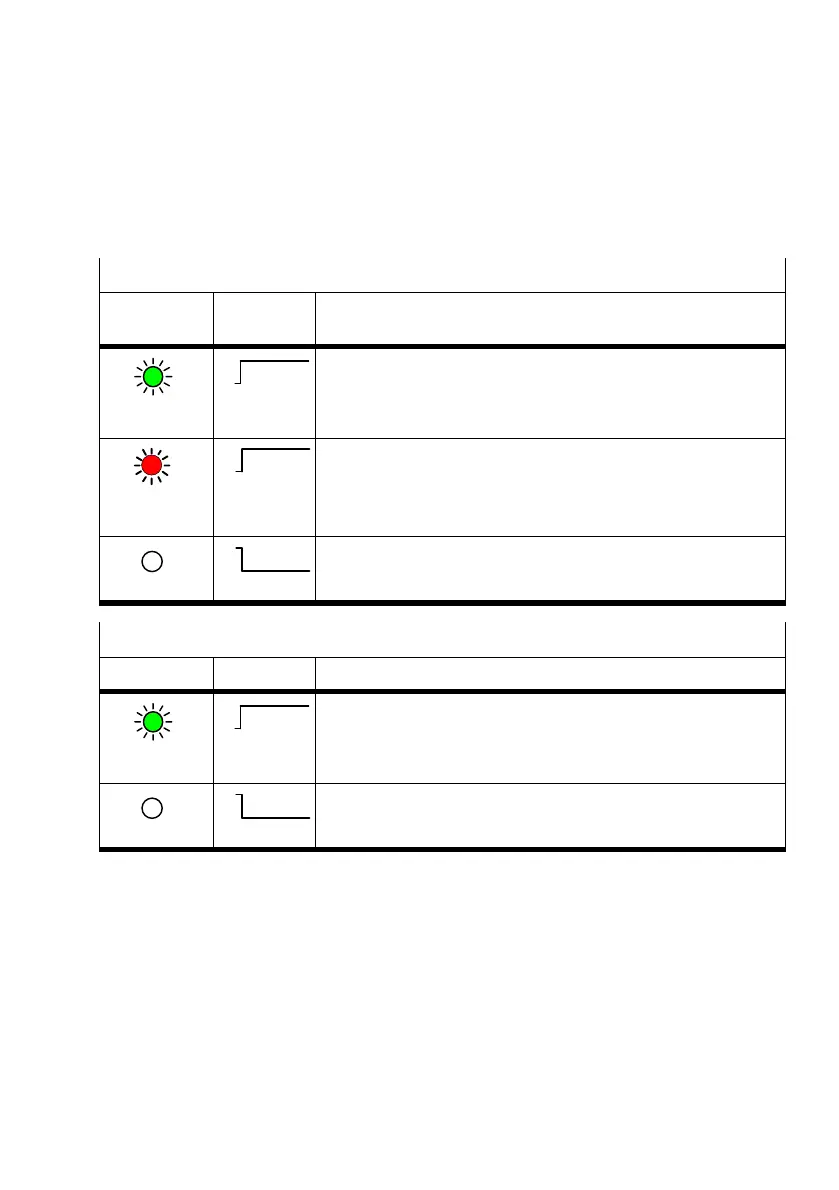

5.3.2 Axis−specific LEDs
Dx (X axis display)  Status indication of X axis
LED
(green/red)
Sequence Status
Illuminated
in green
ON
OFF
No malfunction: The operating status is indicated on the X−axis dis
play.
Illuminated
in red
ON
OFF
X axis signals a malfunction. Error number indicated on display.
LED is off
ON
OFF
No indication for X axis on 7−segment display
X (MC X axis)  Indication of Motion Complete, X axis
LED (green) Sequence Status
Illuminated
in green
ON
OFF
X axis: MC = 1: Last positioning job completed
LED is off
ON
OFF
X axis: MC = 0: Positioning job is active.
Or X axis is not available / is being initialised.
