4. Commissioning
4−11
Festo P.BE−CPX−CMAX−SYS−EN en 0908NH
4.2.3 Establishing a connection to the PC
To connect the service interface on the CPX node with the PC,
use the NEFC−M12G5−0.3−U1G5 adapter as well as an addi
tional commercially−available USB cable with mini USB plug.
Information on how to install the adapter as well as the used
COMx interface can be found in the adapter documentation.
1 Adapter
2 USB cable
1
2

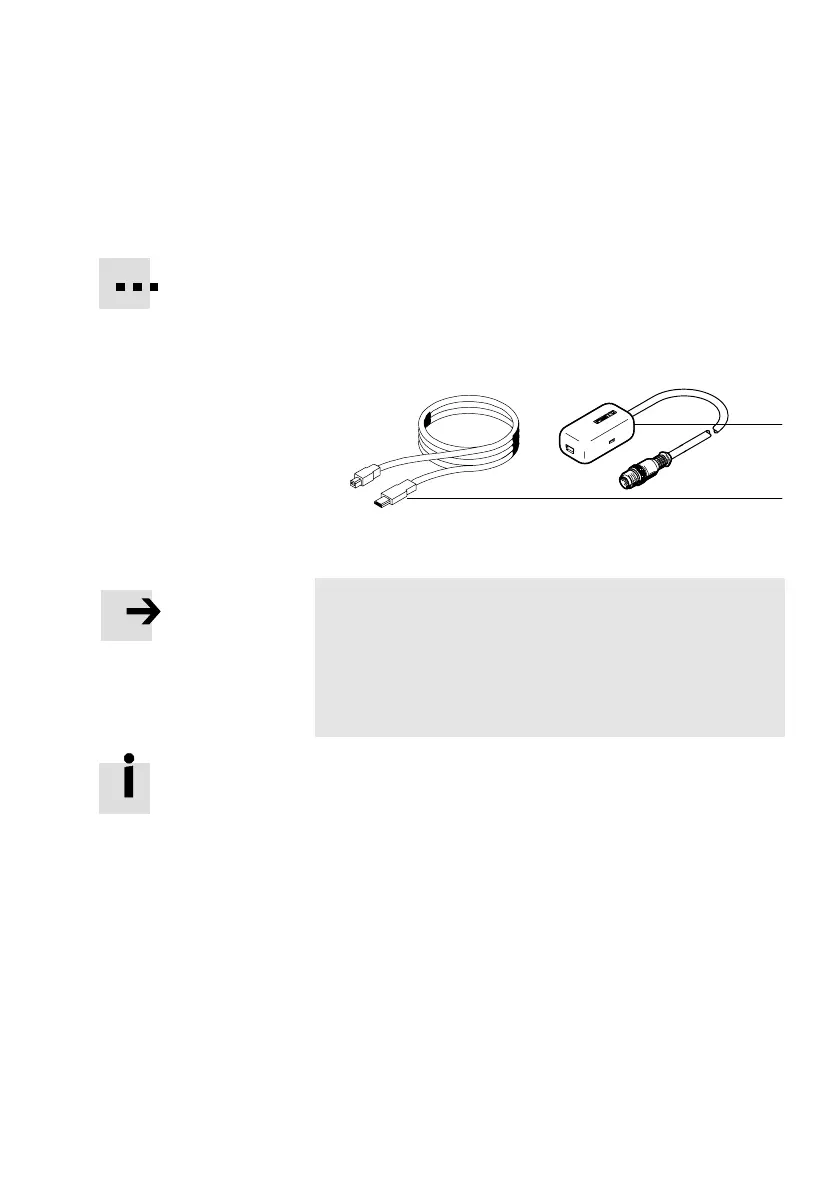

Fig.4/2: Adapter for connecting with the PC
Note
The service interface (V.24) of the CPX terminal is not
designed to be galvanically isolated. It is not intended for
permanent connection to PC systems or as a controller
interface.
· Remove the adapter during continuous operation.
Observe the instructions for operating and installing the re
quired drivers on the CD−ROM included in delivery, or on the
Internet:
è www.festo.com ˛ Downloads ˛ Download Area:
Software, drivers and firmware ˛ Enter search term: FMT
After commissioning, seal the service interface of the
CPX
node with the protective cap supplied.
