2. Fitting and pneumatic installation
2−19
Festo P.BE−CPX−CMAX−SYS−EN en 0908NH
2.4.2 Mounting the VPWP propor tional directional control valve
Mount the VPWP proportional directional control valve on an
even surface with two M3 screws and one retaining washer
each. See Fig.2/4.
Tightening torque: 1.5 Nm ±10%
1 M3 screws with
retaining washers
2 Earth terminal
(see section 3.1)
1
2
1

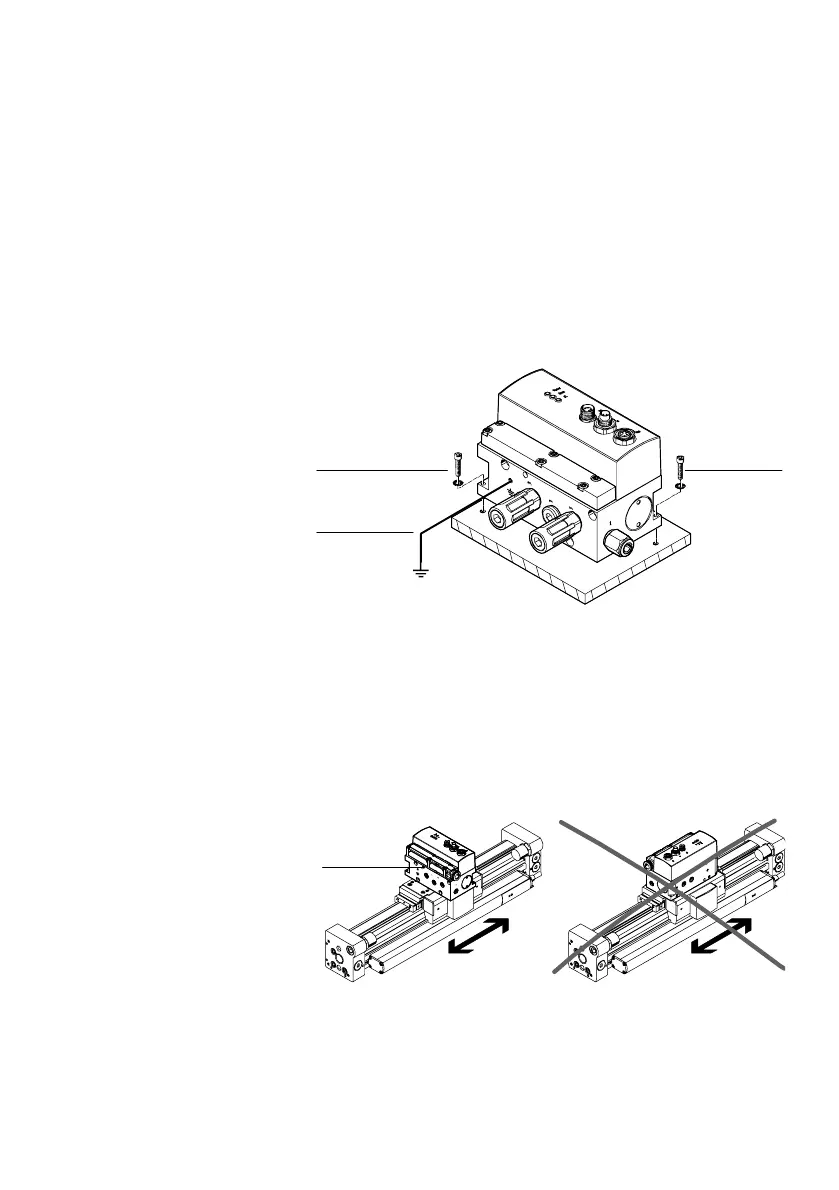

Fig.2/4: Mounting the VPWP
When mounting on moving parts:
· Attach the VPWP perpendicular to the direction of move
ment. Acceleration forces then have no influence on the
valve slide setting.
1 Mounting at right
angles to the direc
tion of movement
2 Impermissible:
Mounting in the
direction of move
ment
3 VPWP proportional
directional control
valve
12
3
Fig.2/5: Mounting the VPWP on moving par ts
