2. Fitting and pneumatic installation
2−4
Festo P.BE−CPX−CMA X−SYS−EN en 0908NH
2.2 Mounting/dismounting the CMAX
The CMAX is mounted in an interlinking block (see also
section 3.4) of the CPX terminal. See Fig.2/2.
Note
· Always switch off the power supply before mounting/
dismounting CPX modules.
Note
The CMAX contains electrostatically sensitive devices.
· Therefore, do not touch any of the components.
· Observe the handling specifications for electrostatically
sensitive devices.
Removal Remove the CMAX as follows:
1. Loosen the four screws of the CMAX with a T10 Torx
screwdriver.
2. Pull the CMAX carefully and without tilting away from the
contact rails of the interlinking block.
1 CMAX
2 Interlinking block
3 Contact rails
4 Torx T10 screws
3
4
1
2

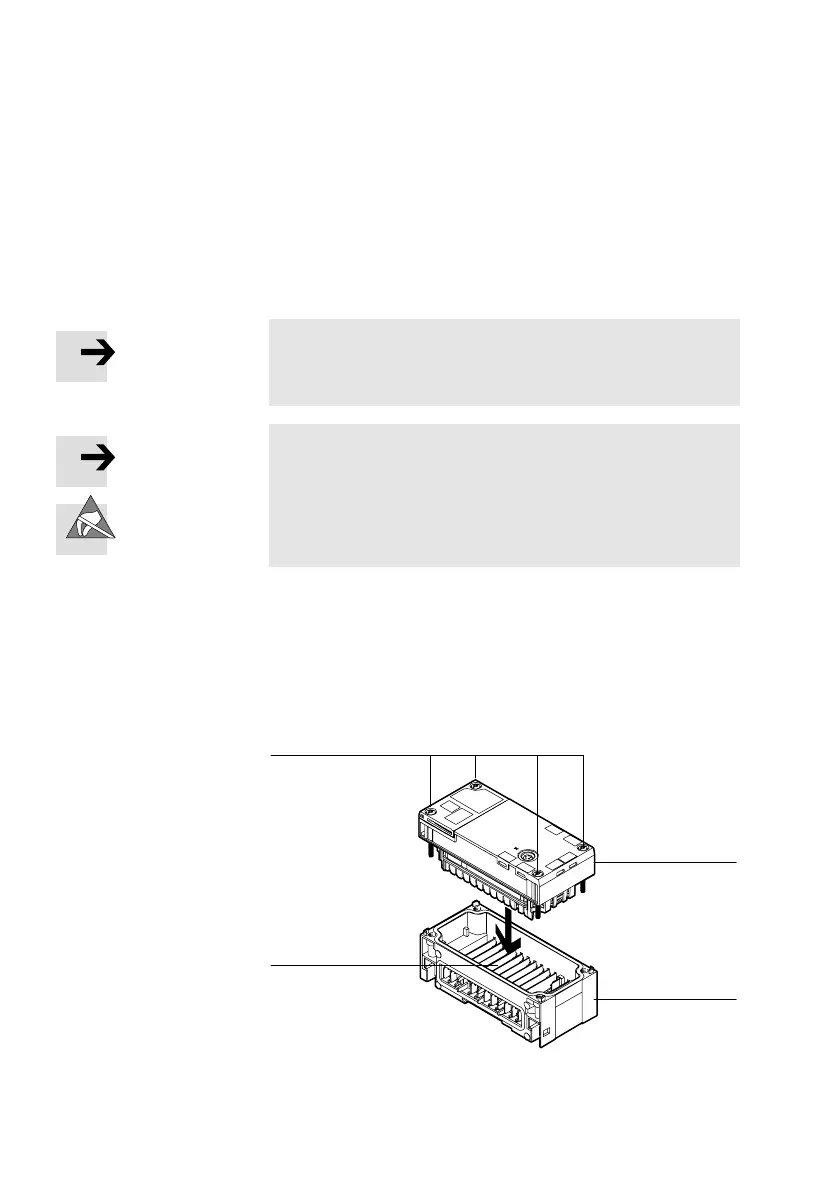

Fig.2/2: Mounting/dismounting the CMAX
