2. Fitting and pneumatic installation
2−22
Festo P.BE−CPX−CMA X−SYS−EN en 0908NH
2.5 Mounting the CASM sensor interface
Mount the CASM−... sensor interface on an even surface with
two M4 screws and one retaining washer each. See Fig.2/7.
The
symbol marks the position of the mounting screws.
The outer mounting screw also serves for earthing (
1 ).
Tightening torque: 2 Nm.
1 Mounting screw
(connect
earthing)
S1
S2
1
Approx. 126 mm
Approx. 30 mm

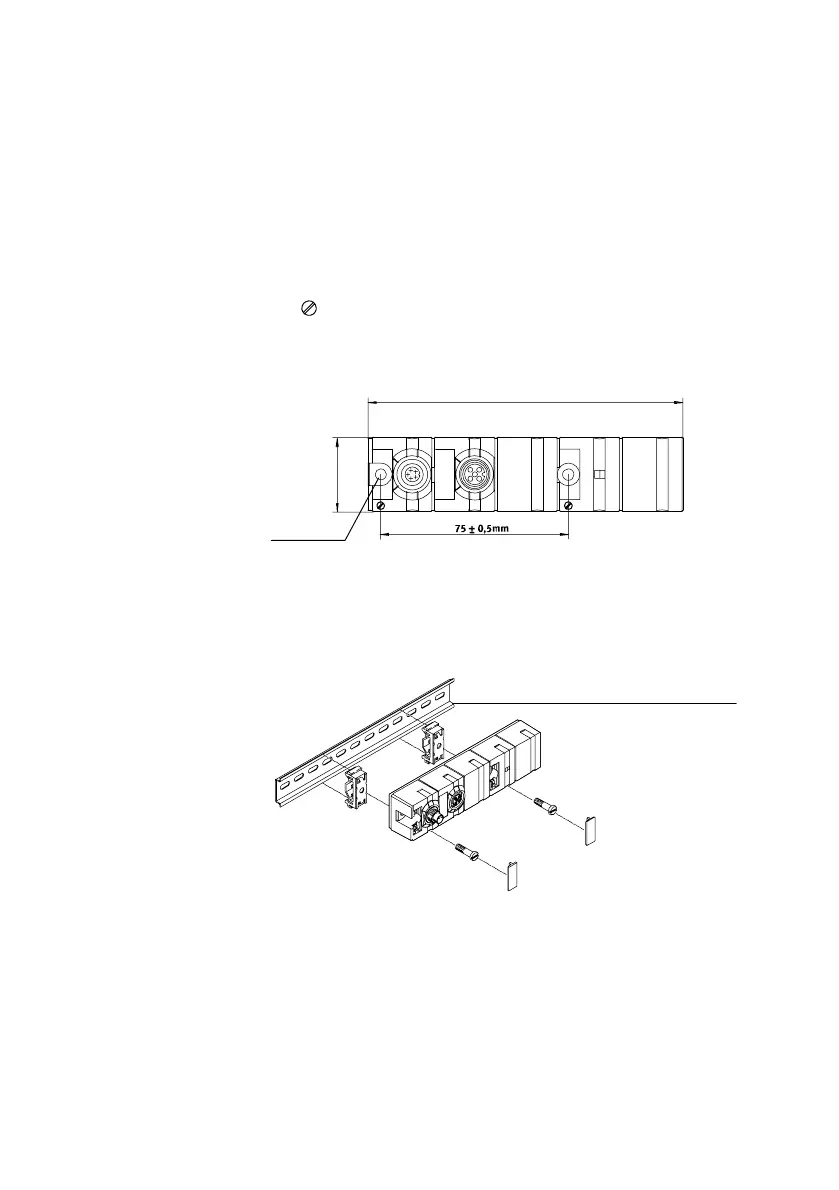

Fig.2/7: Mounting the CA SM
Mounting on H−rails as per EN 60715 is possible with
mounting kit CP−TS−HS35. See Fig.2/8.
1 H−rail
1
Fig.2/8: Mounting the CA SM on H−rail
