5. Diagnostics and error handling
5−36
Festo P.BE−CPX−CMA X−SYS−EN en 0908NH
5.4.2 Status display

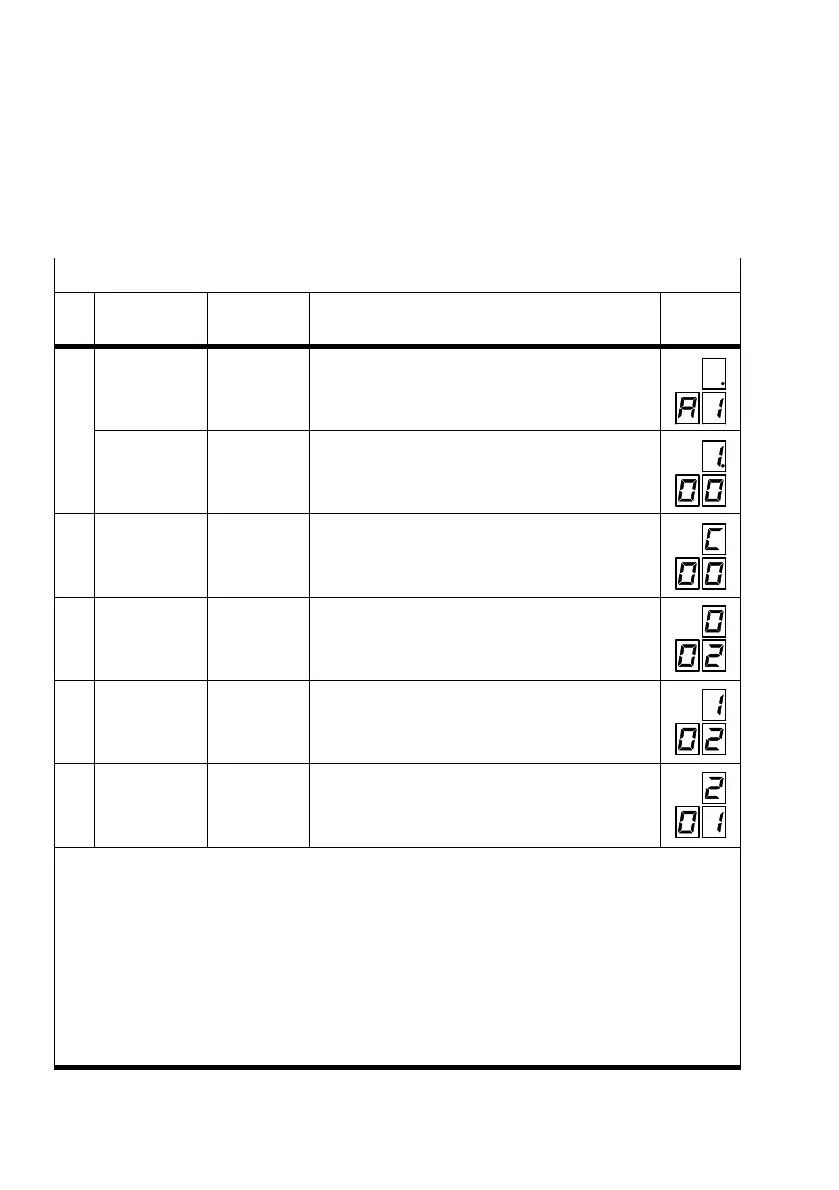

Possible status information
No. Status display Additional
Information
Description Example
1
." flashing An Initialisation of components at the axis interface n
n nn After initialising components at the axis interface,
the firmware version is displayed for about 1 s
(e.g. V 1.00).
2 C nn Parameterisation phase, with current status nn
3 0 nn Initialisation is successfully completed. There is no
enable. Current operating mode status display: nn
4 1 nn Ready for operation, current operating mode in
status display: nn
5 2 nn Record select operating mode, last or current
positioning record nn
About 1: Point flashes during the entire initialisation phase.
About 2: Parameterisation phase, status in
additional information: 00: Wait for system of units
01: Wait for drive type
02: Wait for axis data
03: Wait for movement test
About 3 and 4: Display of the operating mode in
additional information: 02: Record select
03: Direct mode
04: Commissioning
0P: Parametrising
