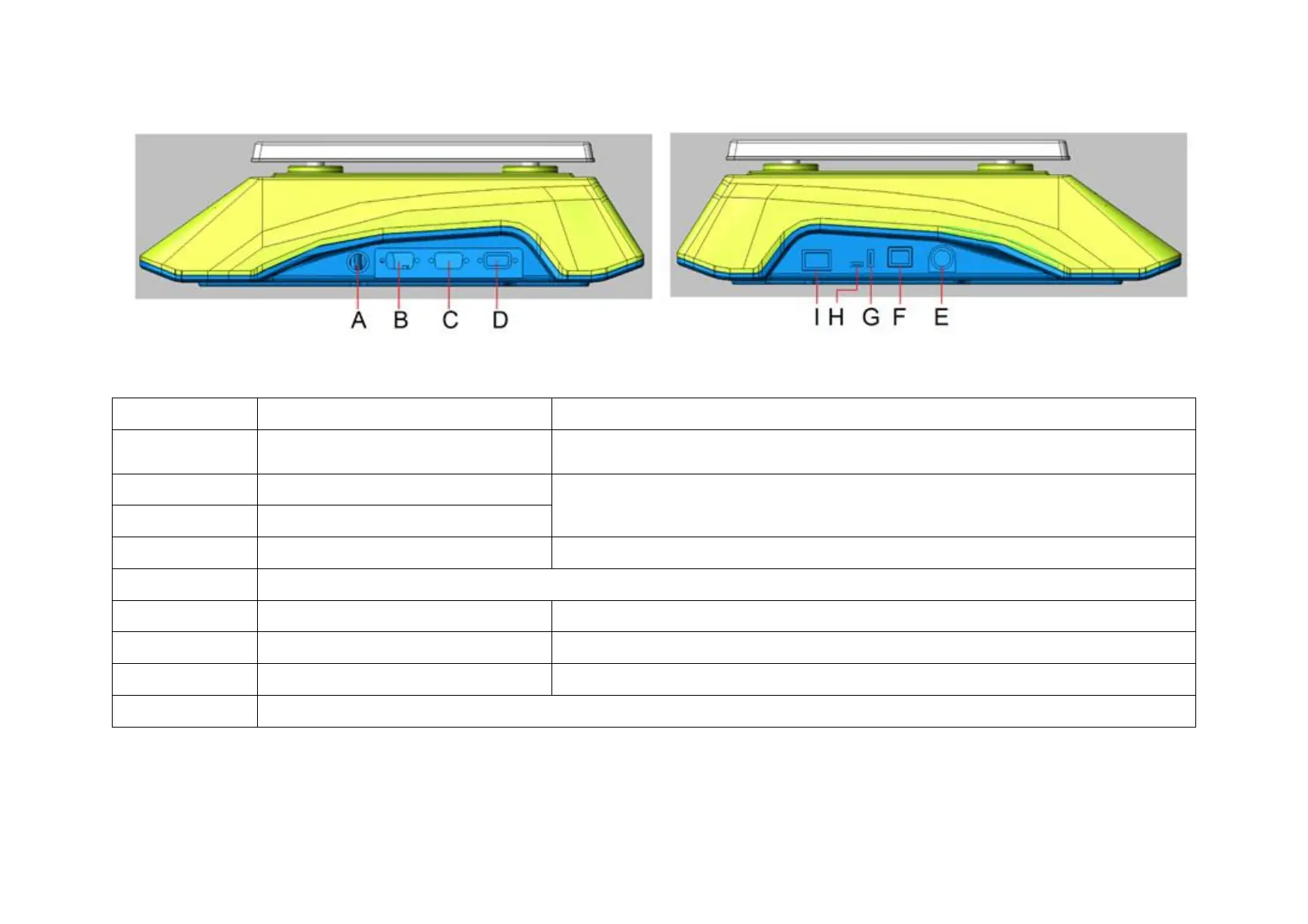

4. Connection Points
4.1 Connection Pins & Plugs
No.
Name
Description
A
Power Adaptor Input
Power adaptor (DC12V, 1A center positive) is plugged here. Do not plug in any other power
adaptor than the one which comes with this instrument.
B
Comport 0 (UART 0)
Refer to 4.3 for pin assignment.
C
Comport 1 (UART 1)
D
Multi-Function Comport
Refer to 4.2 for pin assignment.
E
Reserved
F
LAN Port
LAN cable is plugged in here.
G
USB A Port
USB Keyboard/memory disk is plugged in here.
H
Mini USB Port (UART 3)
Mini USB cable is plugged in here.
I
Reserved
