5.5.1.5.1 Colour change C1 type: red/green
The following switching thresholds are relevant for this colour change:
Basic measuring range
MS MES1 S2
RED GREEN RED

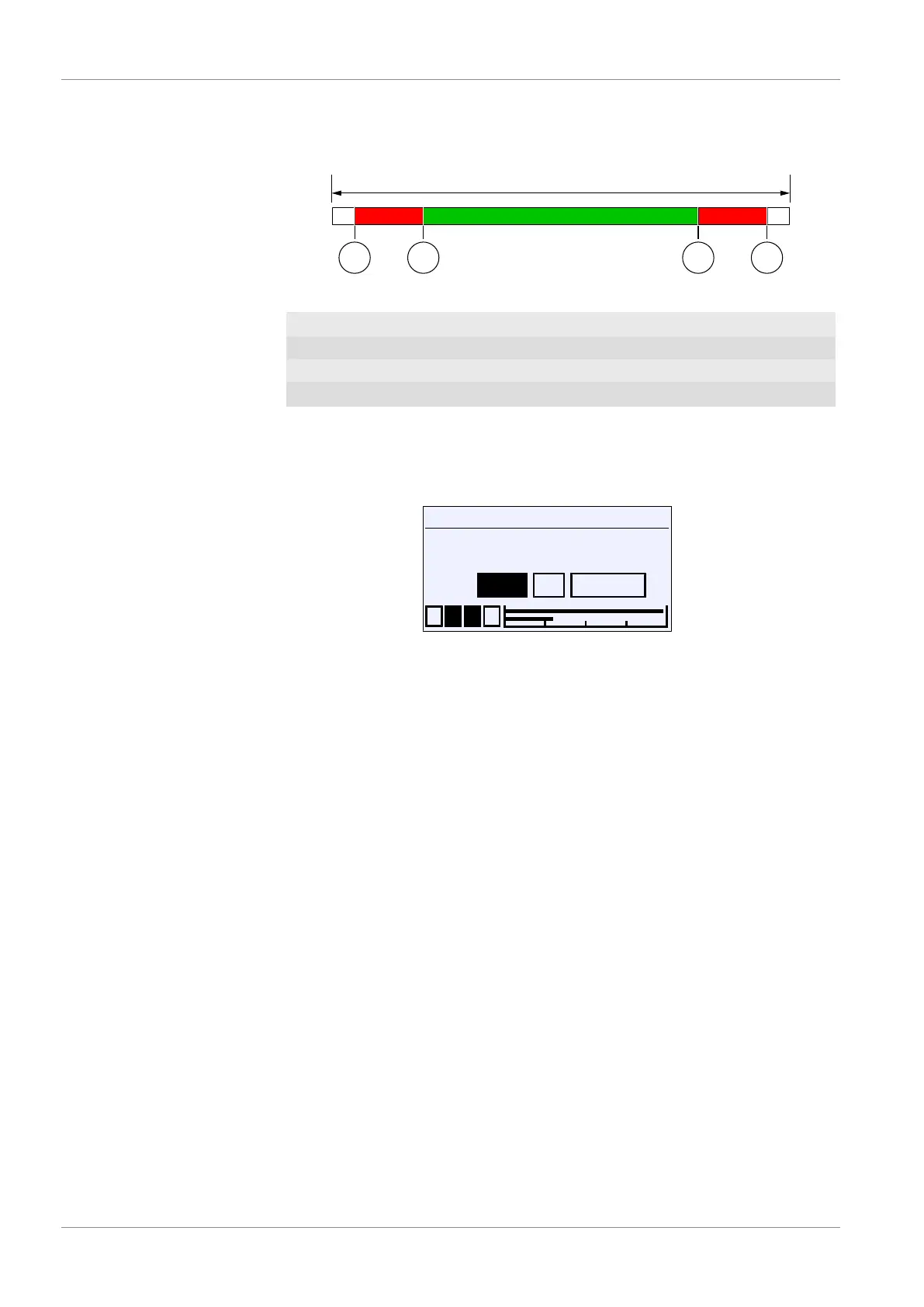

Fig.102: Colour change red/green
MS Meas.range C1 start
See menu Measurement C1 : [}56]
S1 Col.ch. C1 red–grn
S2 Col.ch. C1 grn–red
ME Meas.range C1 end
See menu Measurement C1 : [}56]
For example:
Input of the threshold red/green
Path: \Configuration\Channel 1\Colour change C1\Col.ch. C1 red-grn
Level: 4
Col.ch. C1 red–grn
1 2 3 4
OK CancelEdit
25.000
Pa
U
Fig.103: Colour change C1 red-green
The other switch thresholds are entered in the same way.
