FLEX-6000 Signature Series – Maestro User Guide
Copyright 2024 FlexRadio, Inc. All Rights Reserved. | Page 113
In the image above, a FLEX-6700 is configured so that the Slice A receive antenna is set to RX A and
the Slice B antenna to RX B. ANT1 is selected as the transmit antenna for Slice A and ANT2 for Slice
B. This configuration allows separate receive antennas on the two independent SCUs. This
configuration is not available on the single SCU FLEX-6500 or FLEX-6300.
25.8 ANTENNA SELECTION FOR TRANSVERTER OPERATION

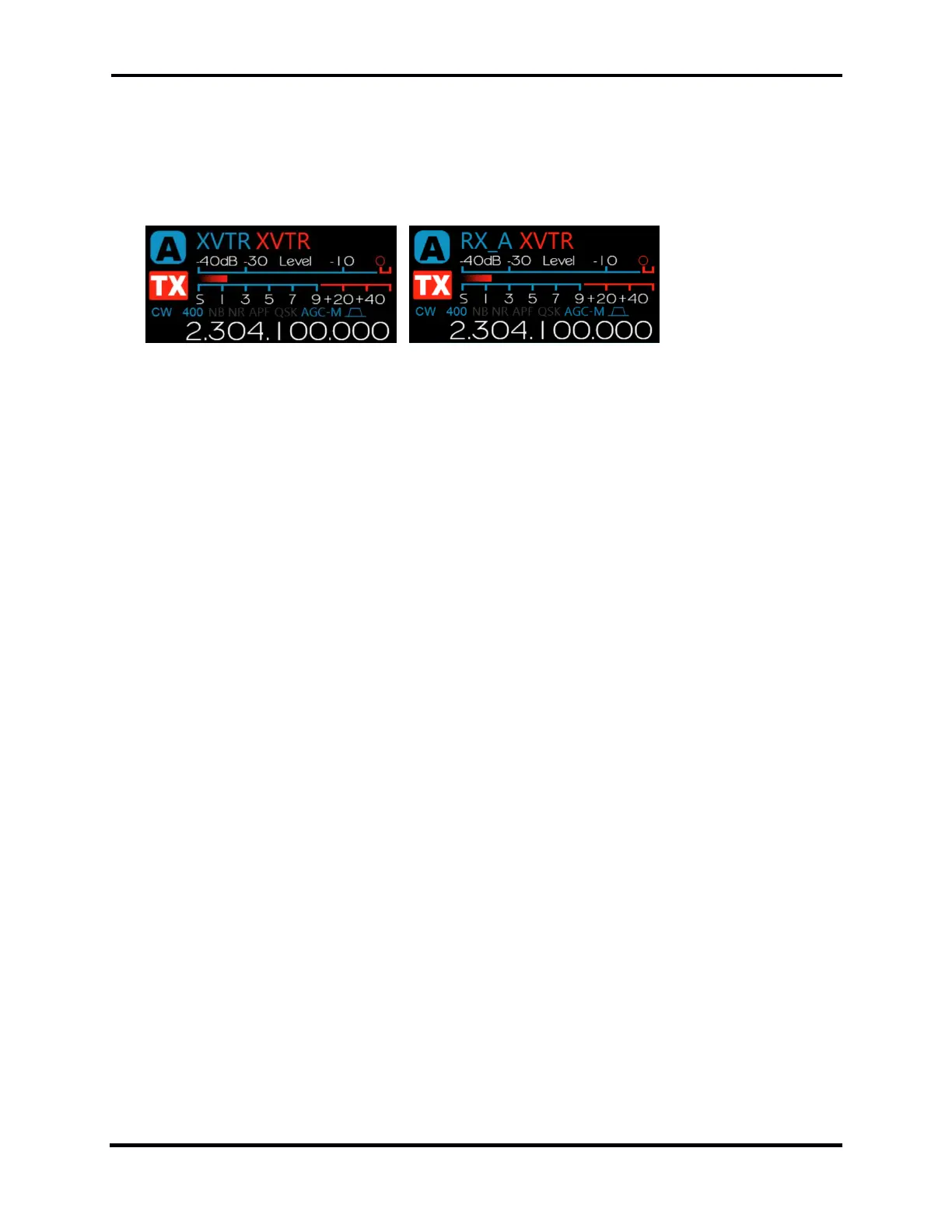

The Slice Flag shown above on the left shows XVTR selected for both receive and transmit
antennas. This provides typical transverter port transceiver operation. The Slice Flag on the right
illustrates the configuration in which RX A is set as the receive antenna and XVTR as the transmit
antenna. This configuration supports split transmit/receive transverter operation.
