FLEX-6000 Signature Series – Maestro User Guide

30.2.2 BIT Cables

BIT cables provide a means to map the tuned frequency of the radio to a set of individual

signals/wires at the end of the cable. These cables are designed to control external devices when

the radio is tuned to specific bands or frequency ranges, and for external keying or sequencing that

is triggered when the transmitter becomes active.

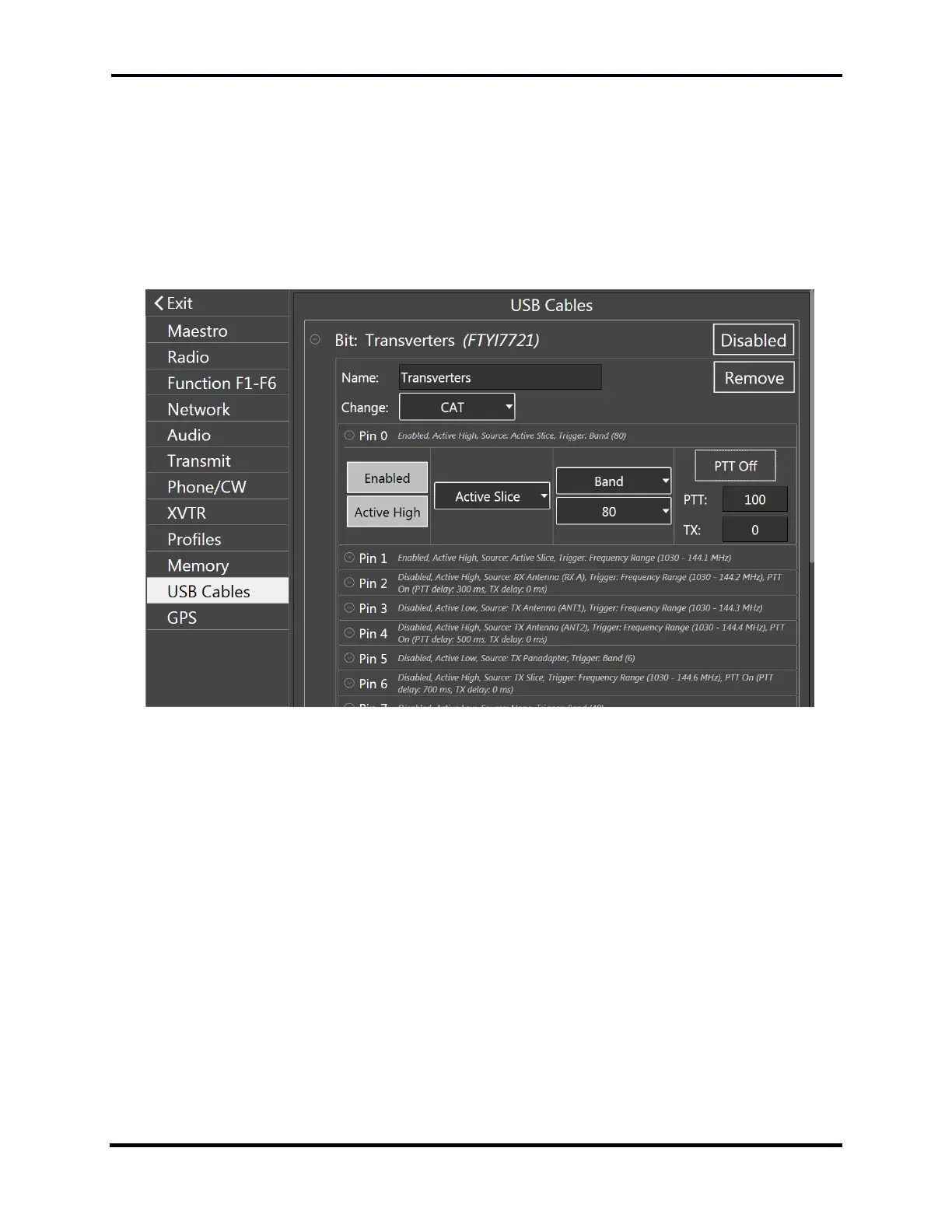

The signal that appears on each bit/pin of a BIT cable is configured by use of the controls in the USB

Cables menu:

 Enabled/Disabled – Enables/disables each pin/bit individually

 Active High/Active Low - Controls whether the pin/bit is high or low when triggered

 Source - Determines which source is used as the frequency check for this bit/pin. The

sources are the same as for the CAT cables, listed above.

 Band/Frequency Range - Determines the band/frequency range that the source must be

within for this bit/pin to be active.

 PTT On/PTT Off - When on, the pin/bit will become active only when the radio is in transmit

mode and the source frequency is within the output band/frequency range. Individual

pin/bit PTT and TX Delays can be set and will be used by the radio when keyed.
