FLEX-6000 Signature Series – Maestro User Guide
Copyright 2024 FlexRadio, Inc. All Rights Reserved. | Page 165
35 FRONT PANEL DISPLAY
35.1 INTRODUCTION
The Front Panel Display is a full color high-resolution touch-sensitive device. In operation, Maestro
displays one or two Panadapters and one or two Slice Receivers. The user can interact with and
control the radio by touching graphic elements of the display such as the Main Menu button, Slice
Receiver Antenna control panels, Slice Receiver meters, Slice Receiver Menus, and Slice Receiver
tuned positions.

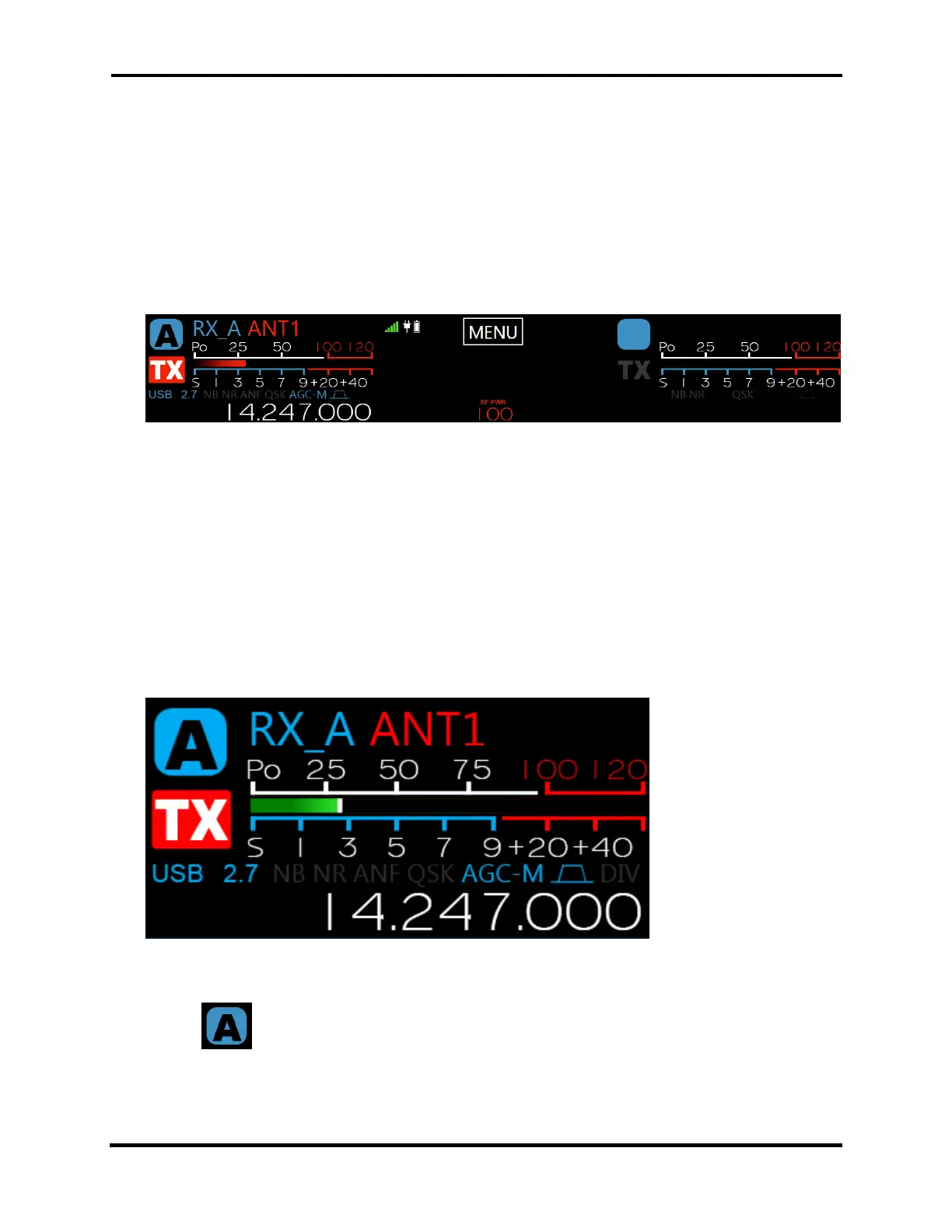

35.2 DISPLAY UPPER BAR
Located in the upper bar of the display are the two Slice Receiver Flags, the A Slice on the right and
the B Slice on the left. In the center of the bar are the Main Menu button, the RF power level
indicator, the power supply indicators, and the network signal strength indicator. When a Power
Genius XL amplifier is configured with the radio, its control appears above the RF power level.
35.2.1 Slice Receiver Flags
The Slice Receiver Flags contain many controls and annunciators associated with the operation of a
Slice Receiver. These include a basic on/off control, an antenna selection menu, transmitter
assignment, multiple meters, operational mode, tuned frequency and annunciators for filter width,
noise reduction options, CW options, and AGC state.
Elements of the Slice Flag, top to bottom, left to right:
ï‚· The Slice Receiver identifier, A or B. When the Slice Receiver is active, A or B will be
displayed. When the Slice is inactive a vacant blue background is shown. Tap the identifier
to turn the Slice on or off. The corresponding front panel RX buttons will illuminate
indicating that the Slice is receiving.
