FLEX-6000 Signature Series – Maestro User Guide
Copyright 2024 FlexRadio, Inc. All Rights Reserved. | Page 145
33 MAIN MENU
33.1 INTRODUCTION
A button that opens the Maestro Main Menu is located at the top center of the Maestro display.
Tapping this button opens the Main Menu. A list of menu tabs appears down the left side of the
menu. When tapped, each of these tabs opens a sub-menu that can be used to configure some
aspect of Maestro operation.

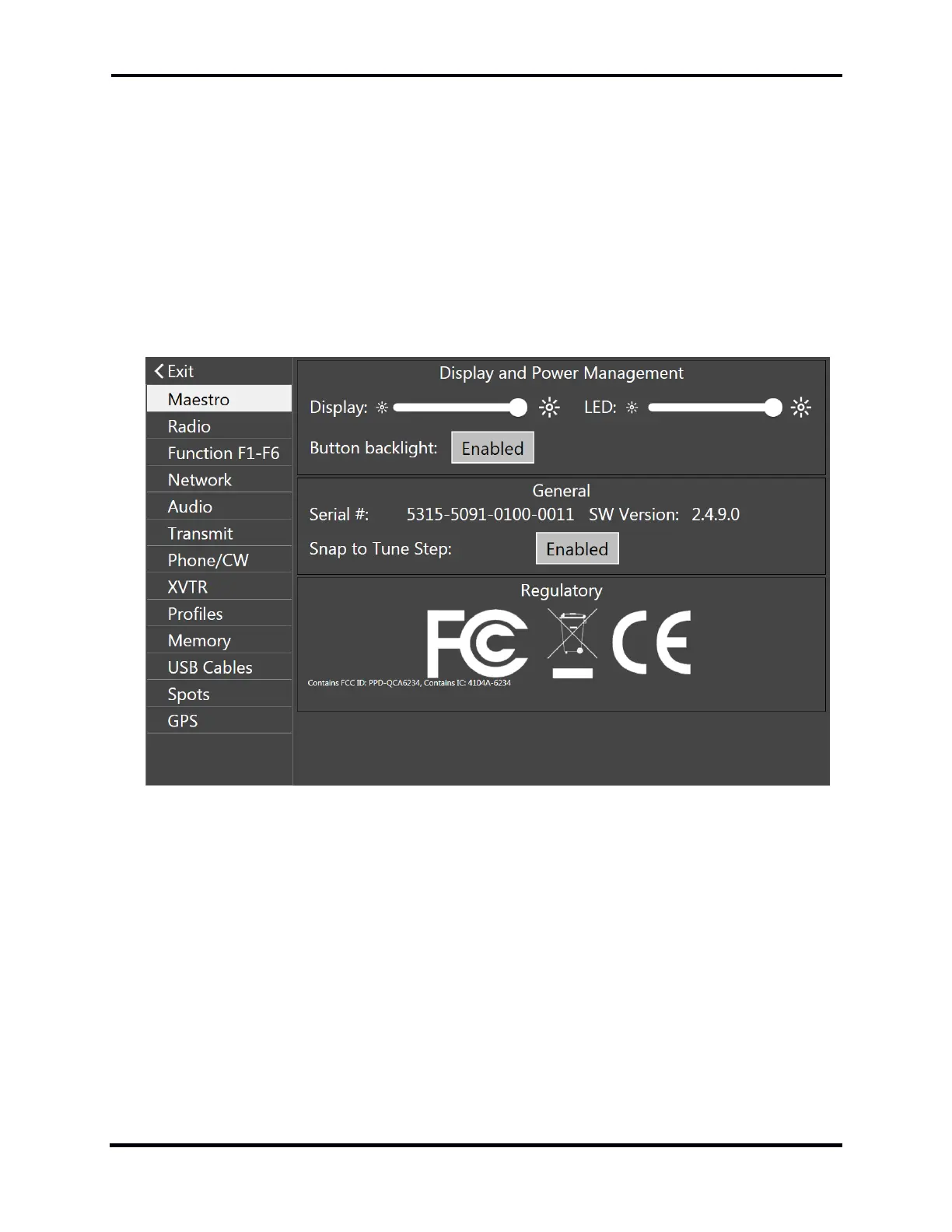

33.2 MAESTRO TAB
Located in the Maestro tab are basic controls for the display and LED button backlight levels. The
serial number and software version information is shown.
The Button backlight button controls the white backlight of the Maestro front panel buttons.
Turning the backlight off does not affect the button colors that are displayed as various functions
change.
The Snap to Tune Step button controls the Drag Tune and Tap Tune behavior. When enabled,
tuning operations will round to the nearest tune step size. For example, if the tune step is set to
10Hz then the Slice Receiver will snap to every 10 Hz (i.e. 14.100.000, 14.100.010, 14.100.020)
increment regardless of the tuning method when tuning outside of the Slice Receiver passband.
When this feature is disabled it will allow the receiver to be tuned in 1 Hz steps.
The Use VFO B Knob button changes the RIT/XIT behavior. See section 36.1, Slice Receiver
Activation Buttons for details.
