30.2.3 BCD Cables
BCD cables provide a means to map the tuned frequency of the radio to a 4 or 5-bit Binary Coded
Decimal output representing specific bands.

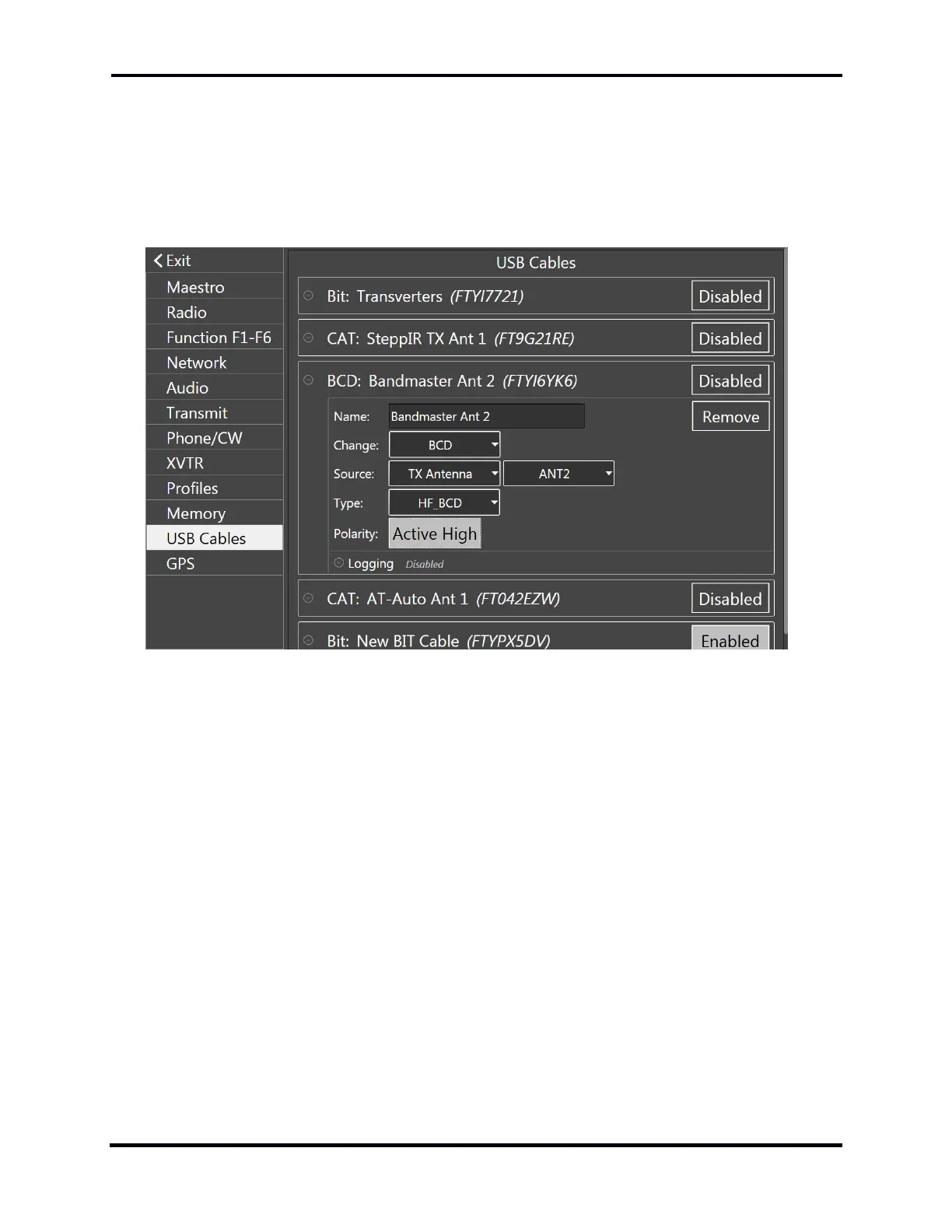

The BCD signal that appears on the cable is configured by use of the controls in the USB Cables
menu:
 Source - Determines which source is used as the frequency check. The sources are the
same as for the CAT cables, listed above.
 Type – Specifies which of several available BCD mappings are generated by the cable:
o HF_BCD - Yaesu/Elecraft BCD band output
o VHF_BCD - Similar to HF_BCD but for VHF and higher bands
o HF_VHF_BCD - Combined HF and VHF output
