Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
flowserve.com
5
Electronic Assemblies
5.1 Control Panel (CP)

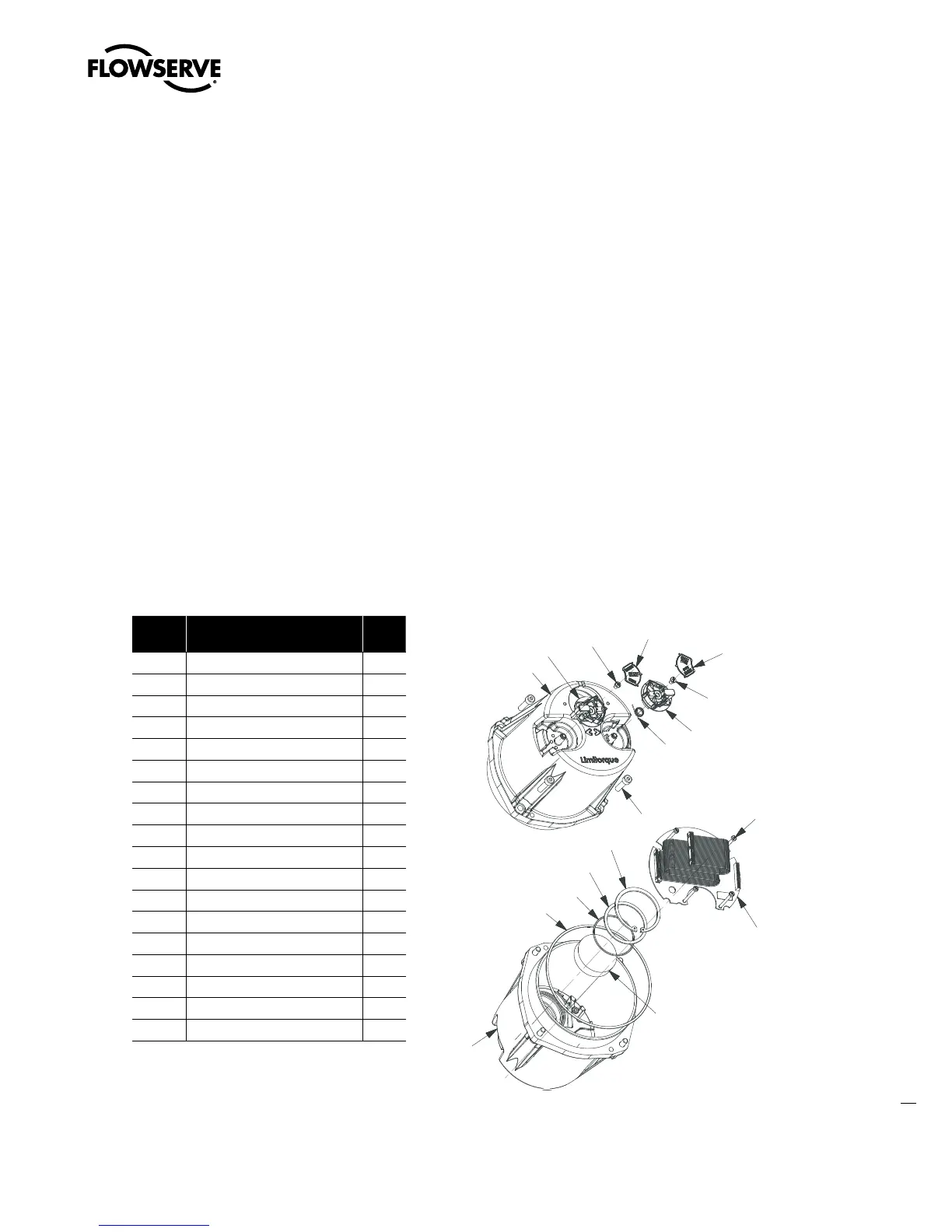

Table 5.1 – Control Panel Parts List Figure 5.1 – Control Panel
7-6
7-14
7-7
7-6
7-3
7-12
7-27
7-23
7-4
8-25
8-24
7-24
7-23
7-21
7-19
7-2
7-25
Part
Number
Description Qty.
7-2 O-ring 1
7-3 Black knob 1
7-4 Red knob 1
7-5 Brass pin (not shown) 2
7-6 Self-tapping screw 2
7-7 Black knob cap 1
7-9 Extension spring 1
7-10 Ball (not shown) 1
7-12 Torsion spring 1
7-14 Red knob cap 1
7-19 O-ring retainer 1
7-21 O-ring 1
7-23 Controls cover 1
7-24 Window 1
7-25 Snap ring 1
7-27 Socket head cap screw 4
8-24 PC board 1
8-25 Pan head machine screw (M4x6) 4
