Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
36
4.4.1 Side-Mounted Handwheel Without Spur Gear Attachment
(MX-85, -140, and -150)
Table 4.9 – Side-Mounted Handwheel without Spur Gear
Attachment Parts List (MX-85, -140, and -150)
Part Number Description Qty.
c
WARNING: Do not manually
operate the actuator with
devices other than the installed
handwheel and declutch lever.
Using force beyond the ratings
of the actuator and/or additive
forces such as cheater bars,
wheel wrenches, pipe wrenches,
or other devices on the actuator
handwheel or declutch lever may
cause serious personal injury
and/or damage to the actuator
and valve.
13-1 Handwheel wormshaft 1
13-2 Handwheel worm cap 1
13-3 Ball bearing 1
13-4 Quad ring 1
13-5 Roll pin 1
13-6 O-ring 1
13-7 Key 1
13-8 Needle bearing 1
13-9 Socket head cap screw 4
13-10 Side-Mounted handwheel 1
13-18 Socket head set screw 1

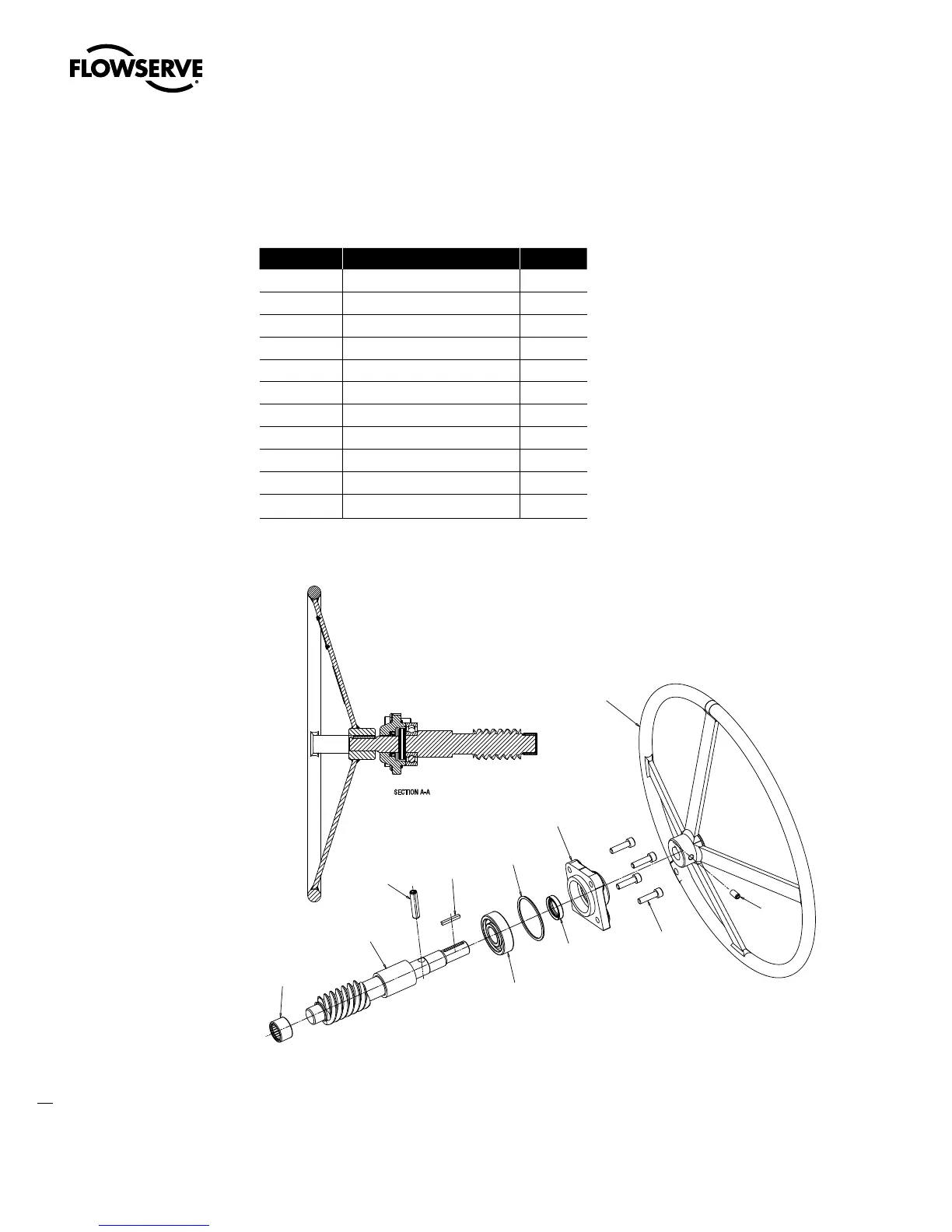

Figure 4.9 – Side-Mounted Handwheel (MX-85, -140, and -150)
4&$5*0/""











