Flowserve Limitorque MX-40 - Removal

Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
88
4.15.1 Removal
First Remove
1. Drain oil.
2. Remove top-mounted handwheel (#1-8) or side-mounted handwheel (subassembly #13). (See
Section 4.3.1, Section 4.4.2, or Section 4.5.2.)
3. Remove handwheel adapter (subassembly #12). (See Section 4.14.1.)

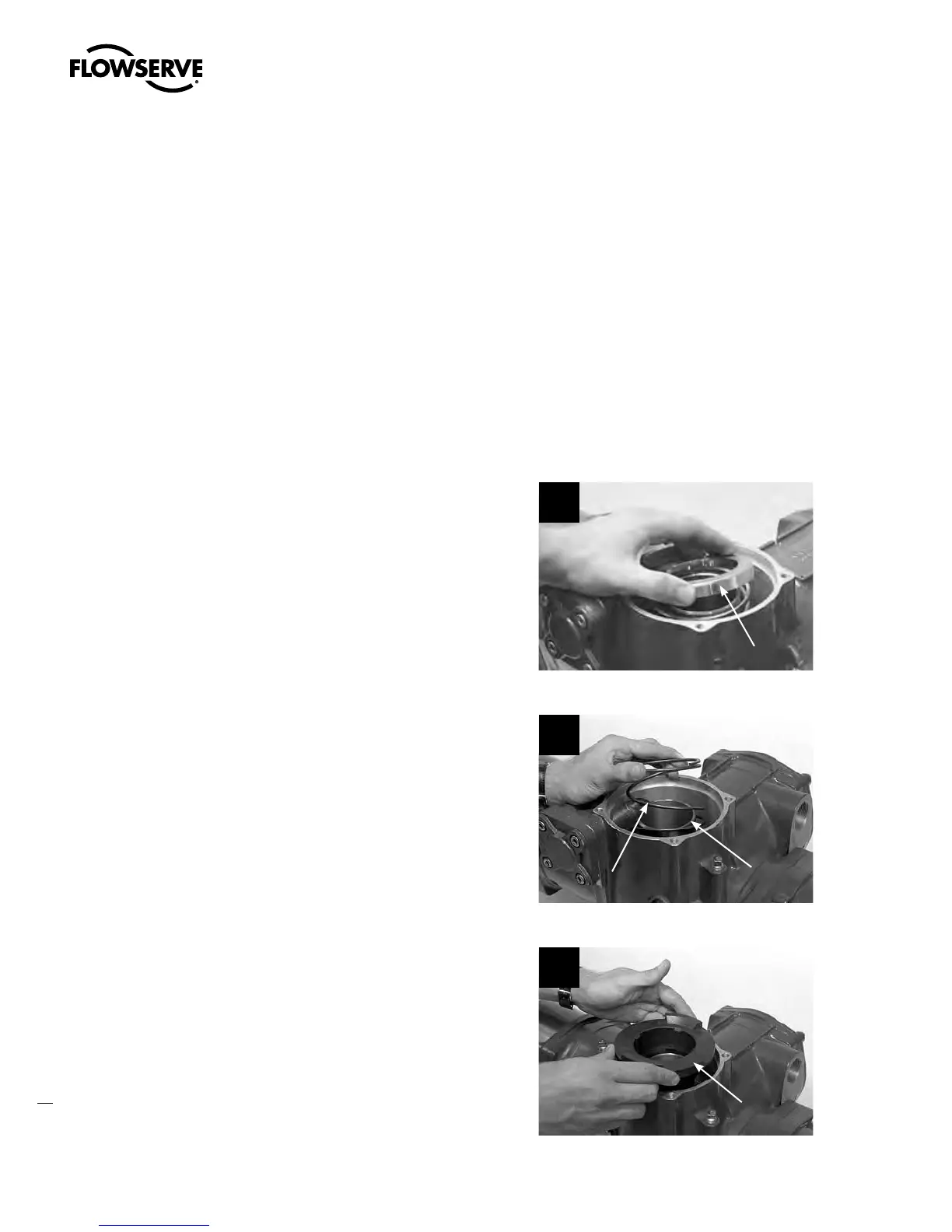

STEP 1
c
WARNING: Potential to operate while dangerous mechanical parts are exposed during
subassembly removal. To prevent injury, turn off all power sources to actuator before
removing clutch and clutch ring components. Power sources may include main power or
control power.
Remove spring spacer (#1-40).
1
1-40
STEP 2
Remove clutch spring (#1-39) that is posi-
tioned over the drive sleeve assembly (#2).
2
2
1-39
STEP 3
Remove clutch (#1-38).
3
1-38
