Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
32
4.3 Top-Mounted Handwheel
(MX-05, -10, -20, and -40)
Table 4.7 – Top-Mounted Handwheel Parts List (MX-05, -10,
-20, and -40)
Part Number Description Qty.
1-8 Handwheel 1
1-9 Handwheel Spacer (MX-05 only) 1
1-10 Wave Spring 1
1-11 Socket head cap screw 4

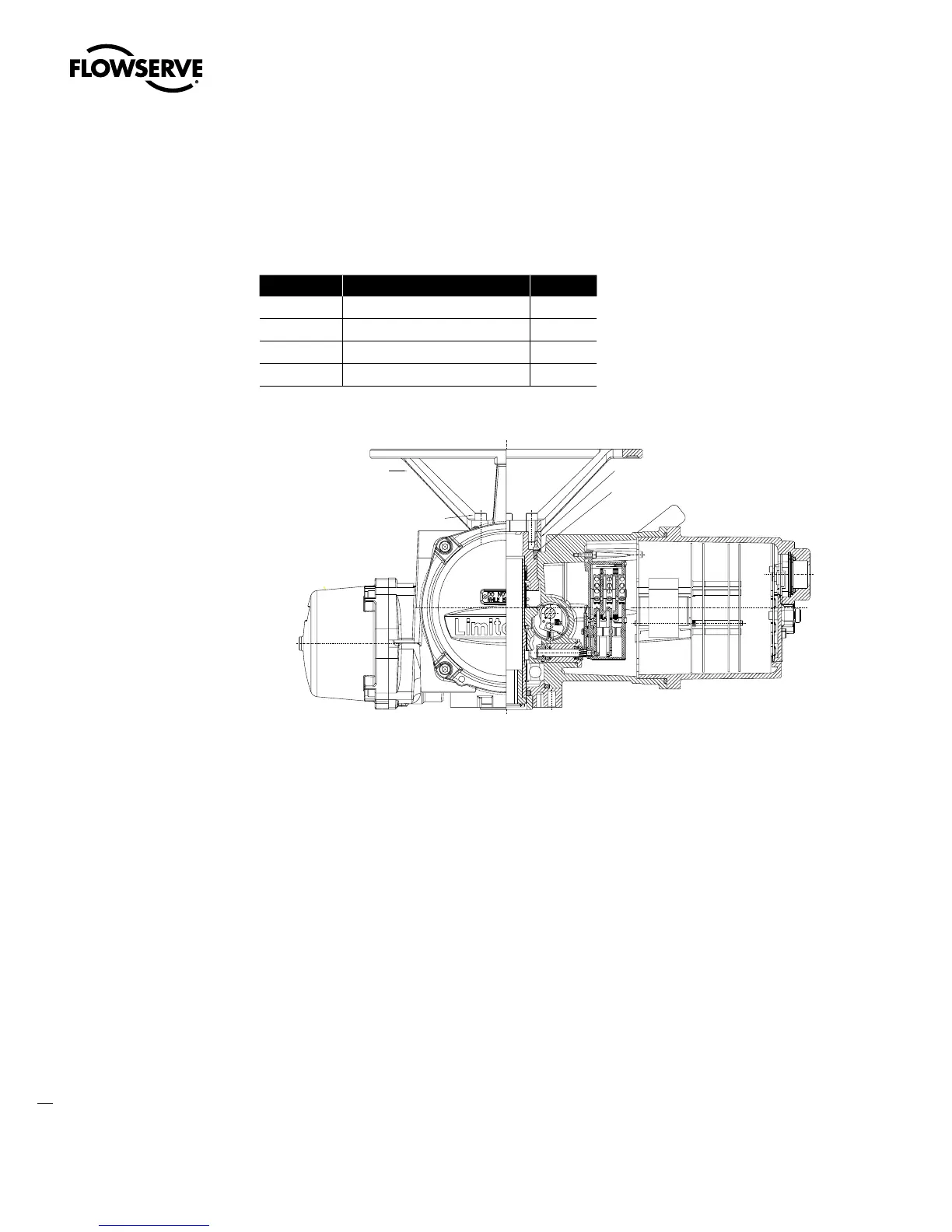

Figure 4.7 – Top-Mounted Handwheel (MX-05, -10, -20, and -40)
1-9 (MX-05 only) Handwheel spacer (1)
1-10 Wave spring (1)
1-8 Handwheel (1)
1-11 Socket head cap screw (4)
c
WARNING: Do not manually operate the actuator with devices other than the installed
handwheel and declutch lever. Using force beyond the ratings of the actuator and/or additive
forces such as cheater bars, wheel wrenches, pipe wrenches, or other devices on the actuator
handwheel or declutch lever may cause serious personal injury and/or damage to the actuator
and valve.
