Flowserve Limitorque MX-40 - Handwheel Adapter (MX-10, -20 and -40);Handwheel Worm Gear (MX-10, -20, -40, -85, -140, and -150); Figure 4.24 - Handwheel Adapter Assembly; Table 4.21 - Handwheel Adapter Assembly Parts List

81
Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
flowserve.com
4.14 Handwheel Adapter (MX-10, -20 and -40)/
Handwheel Worm Gear (MX-10, -20, -40, -85,
-140, and -150)
Table 4.21 – Handwheel Adapter Assembly Parts List
Part Number Description Qty.
12-1 Handwheel adapter 1
12-2 Ball bearing 1
12-3 Quad ring 1
12-4 O-ring 1

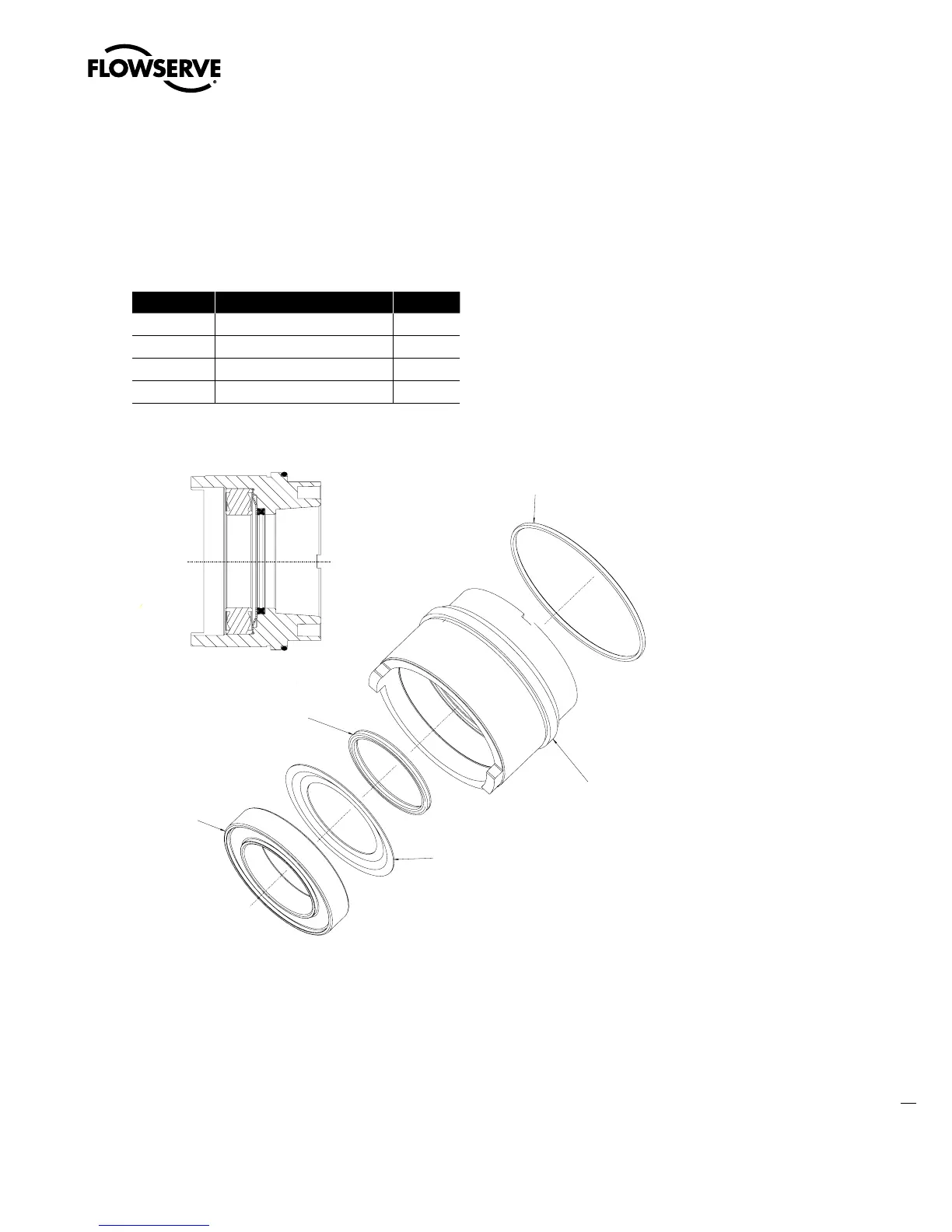

Figure 4.24 – Handwheel Adapter Assembly





6OJRVFUP.9IBOEXIFFM
BEBQUFSPOMZSFUBJOTRVBESJOH
