5.2 Control Module (Units Supplied Before
September 2003)
Table 5.2 – Control Module Parts List
Part Number Description Qty.
8-1 Controls chassis plate 1
8-3 Power board 1
8-4 Main processor board 1
8-5 Phillips pan head mach 4
8-7 Socket head cap screw (M4x10) 3
8-8 Chassis assembly 1
8-9 DDC board (network board) - optional 1
8-10 PC board, (I/O board) - optional 1
8-24 PC board, local control station 1
8-25 Socket head cap screw (M4x6) 4
8-26 Ribbon cable assembly 1

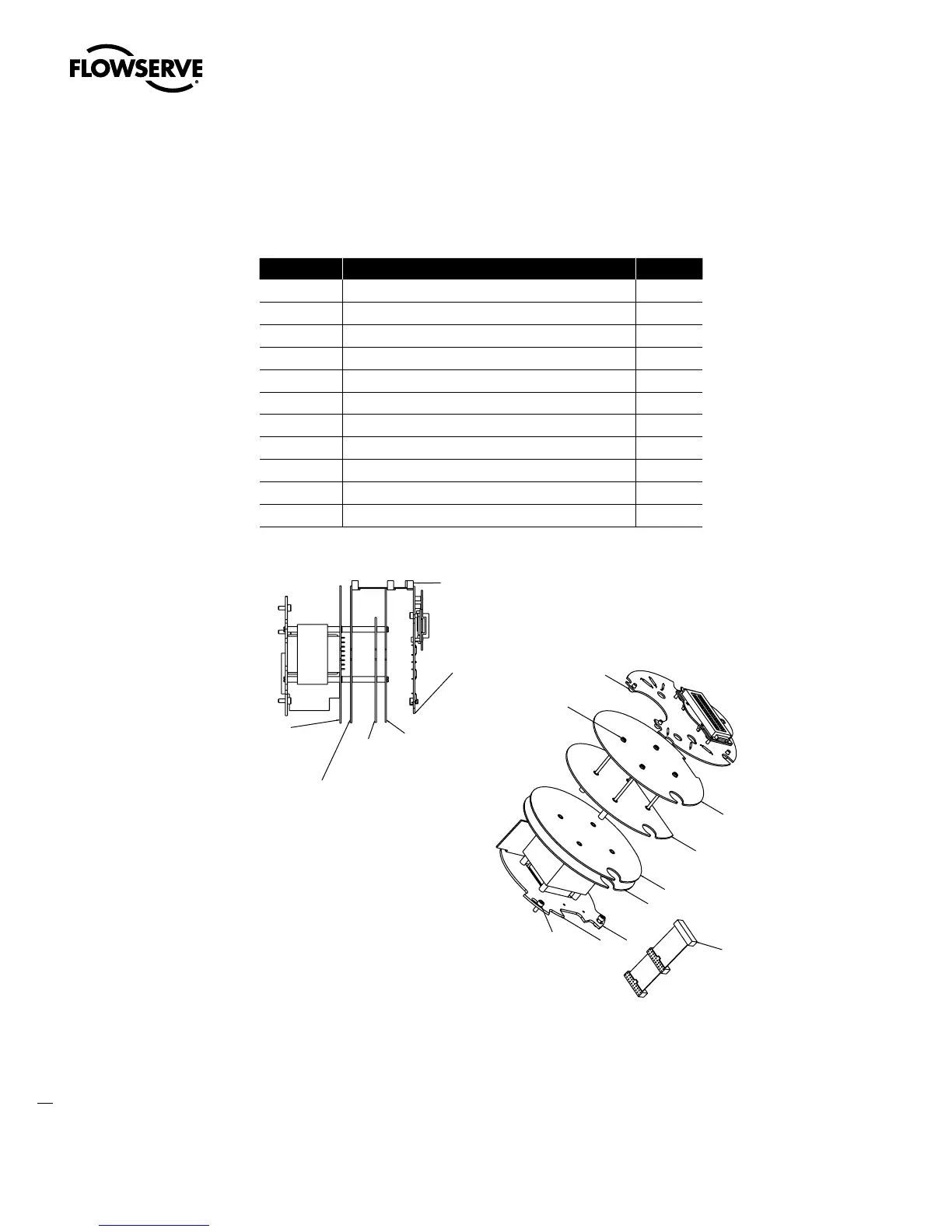

Figure 5.2 – Control Module
}
8-10
8- 9
8-26
8- 7
Optional
components
8- 4
8- 8
8- 3
8-25
8- 1
8- 3
8-4
8-9
8-10
8-24
8-26
8- 5
