Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
flowserve.com

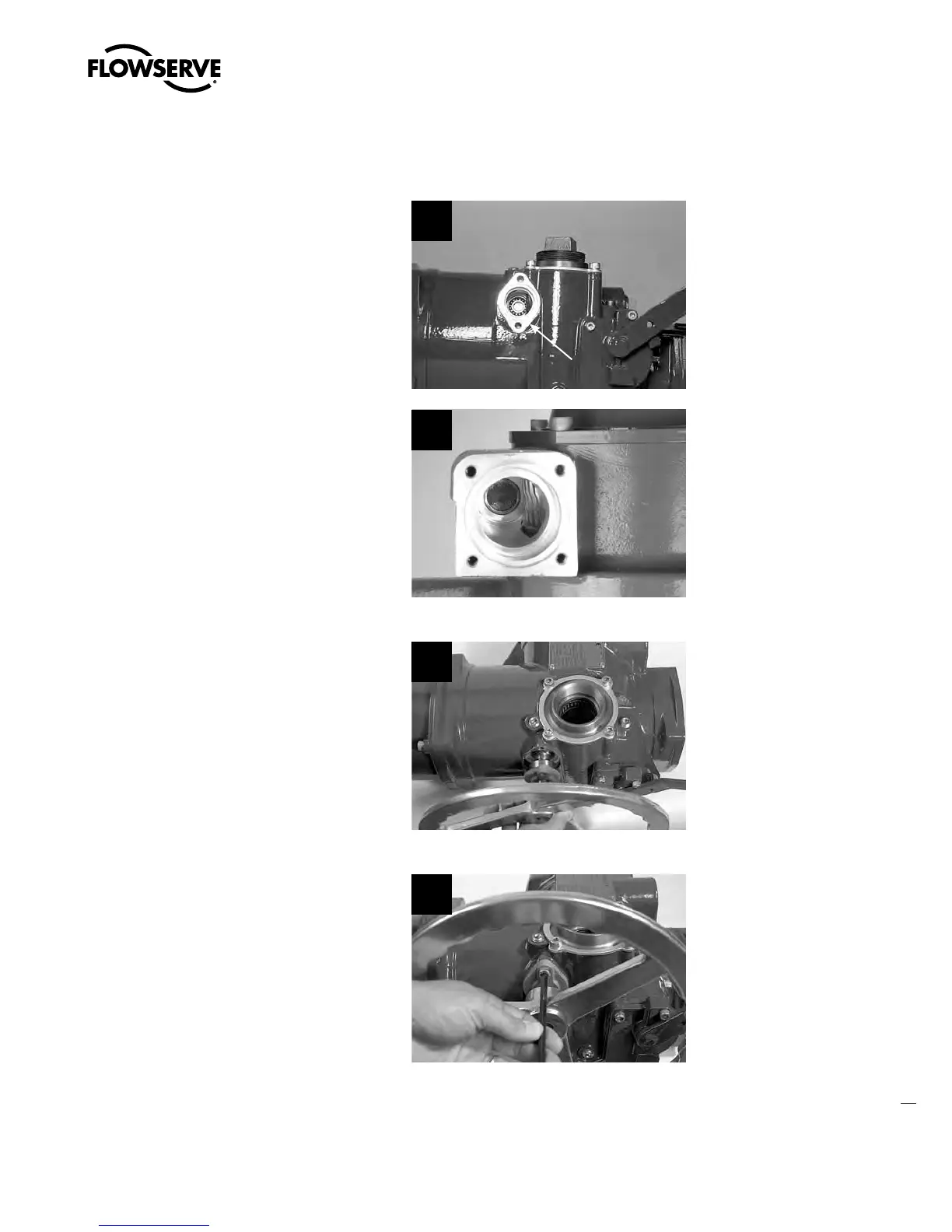

4.4.4 Remounting
STEP 4
Check that bearing (#13-8) is correctly in place
in the actuator housing.
The MX-10 and -20 is a slip fit (4a).
The MX-85, -140, and -150 is a press fit (4b).
4a
13-8
4b
STEP 5
Insert the complete subassembly into the
actuator housing, rotating counterclockwise
(CCW) to properly mesh the gearing. Ensure
the end of the worm shaft is seated in the inner
bearing (#13-8).
5
STEP 6
Position the worm shaft cap (#13-2) back on
the actuator housing. Using a 6 mm hex key, fit
the (#13-9) screws onto the worm shaft cap to
secure side-mounted assembly to the actuator
housing.
6
