59
Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
flowserve.com
4.9 Baseplate Type B4
Table 4.16 – Type B4 Baseplate Parts List
Part Number Description
Quantity
MX-05, -10, -20
and -40
MX-85/140/150
11-1 Baseplate 1 1
11-2 Pilot 1 N/A
11-3 Seal
(85/140/150)
Quad ring 1 1
11-4 O-ring 1 1
11-5 Socket head cap screw 4 8

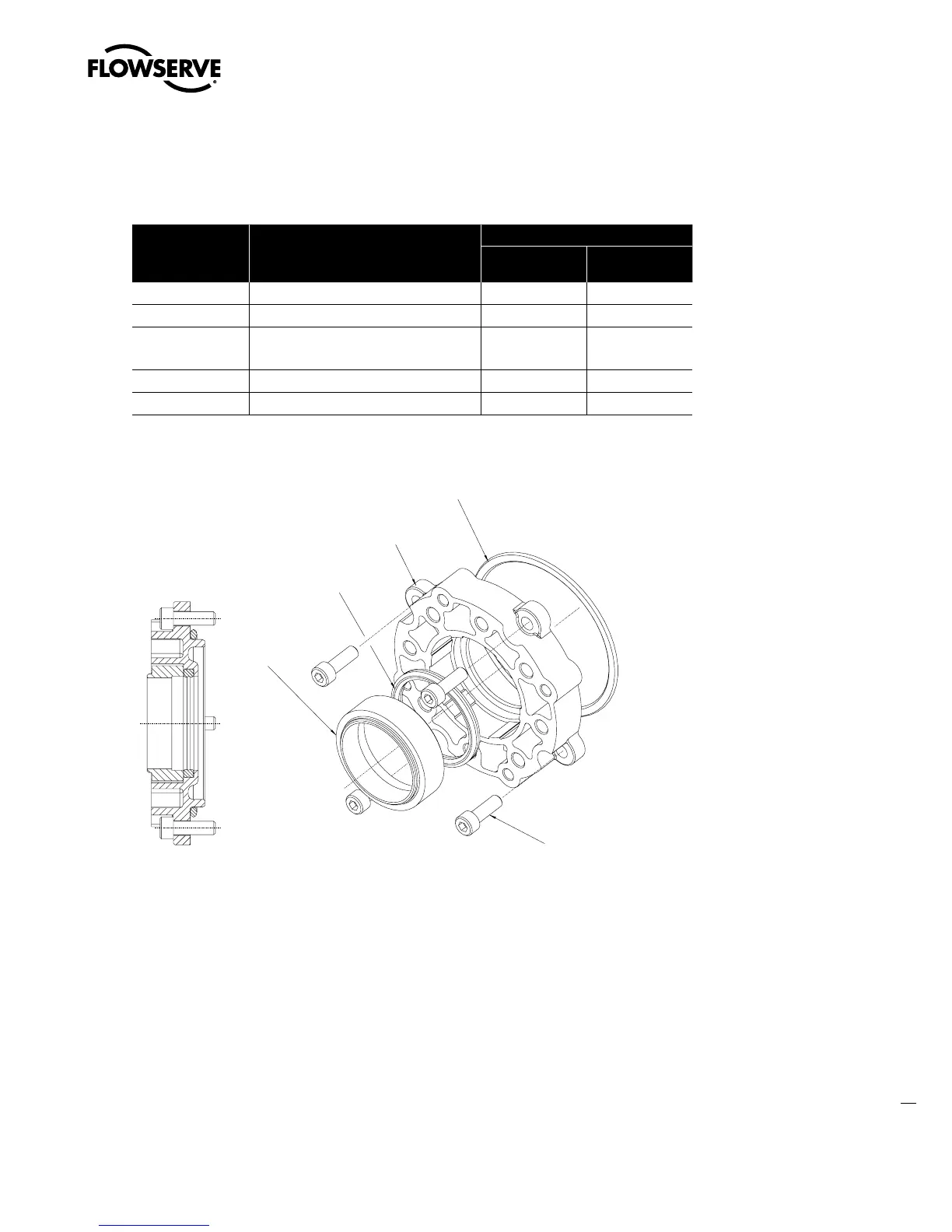

Figure 4.16 – Type B4 Baseplate (MX-05, -10, -20, and -40)





Swanson Flo | 800-288-7926 | www.swansonflo.com
