Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
12

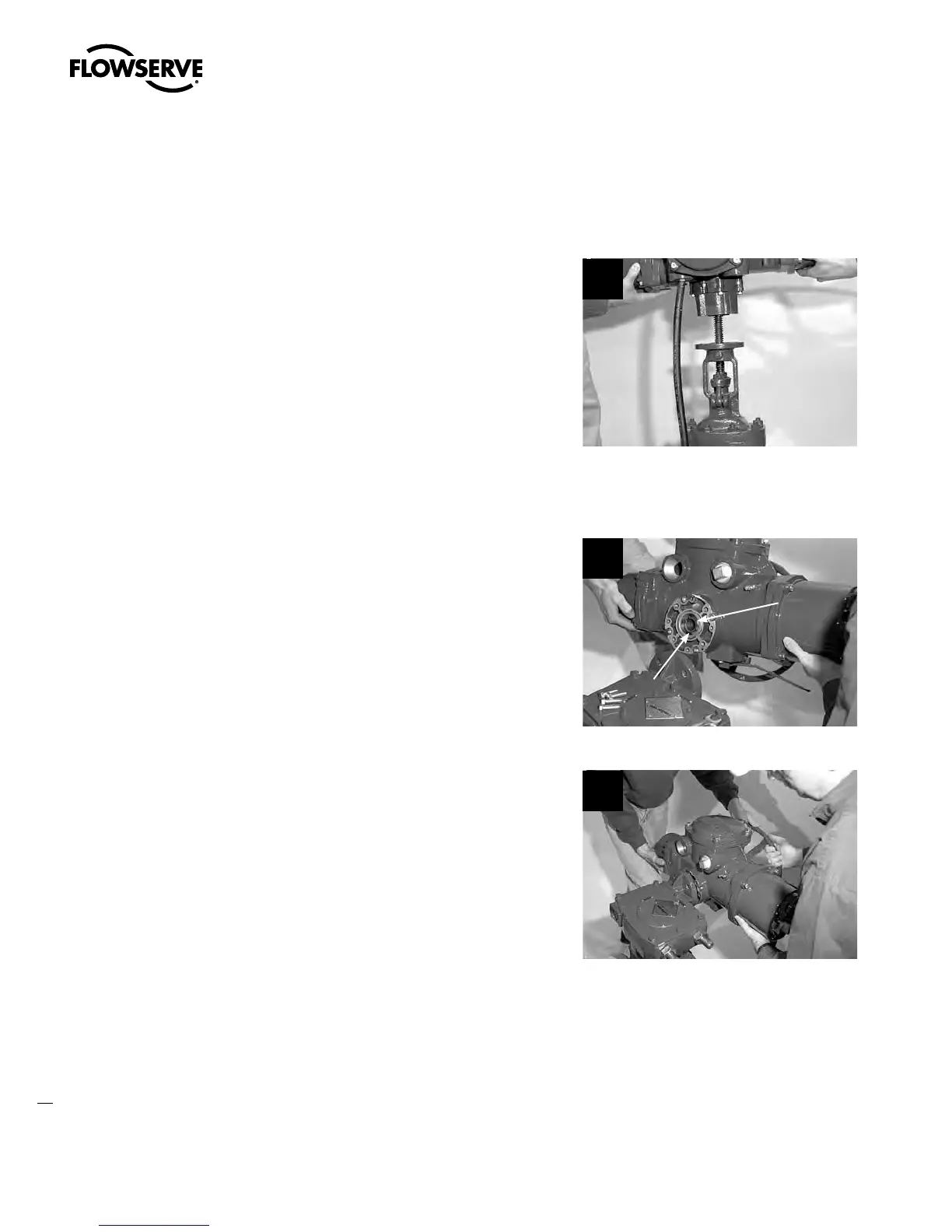

STEP 2
c
WARNING: Potential high-pressure vessel! Before disassembling your actuator,
ensure that the valve or other actuated device is isolated and is not under pressure.
Lift actuator from mounting adapter.
2
3.1.2 Remounting (Type B1/B4/B4E Base)
STEP 3
Ensure stem nut (#1-22) is secured inside
actuator drive sleeve with retaining ring
(#1-23). Lower the actuator onto the mating
component, making sure to align stem nut key
and keyway with mating component.
3
1-22
1-23
STEP 4
Ensure that the actuator and mounting adapter
flange mating holes are aligned correctly.
4
