Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
98
5.2.2 Remounting
If the standard board set was separated from the DDC and/or I/O option boards, reassemble boards
back together as a complete unit before remounting the control module back into the actuator.
STEP 10
c
WARNING: Hazardous Voltage! Turn off all power sources to actuator before remounting
ACP assembly. Power sources may include main power or control power.
a
CAUTION: Ensure the voltage jumper on power board (see Figure 5.3) is located in the
proper slot for the nameplate and motor voltage!
a
CAUTION: Potential to cause electrostatic damage to electronic components. Before
handling electronic components, ensure that you are discharged of static electricity by
briefly touching a grounded metal object.

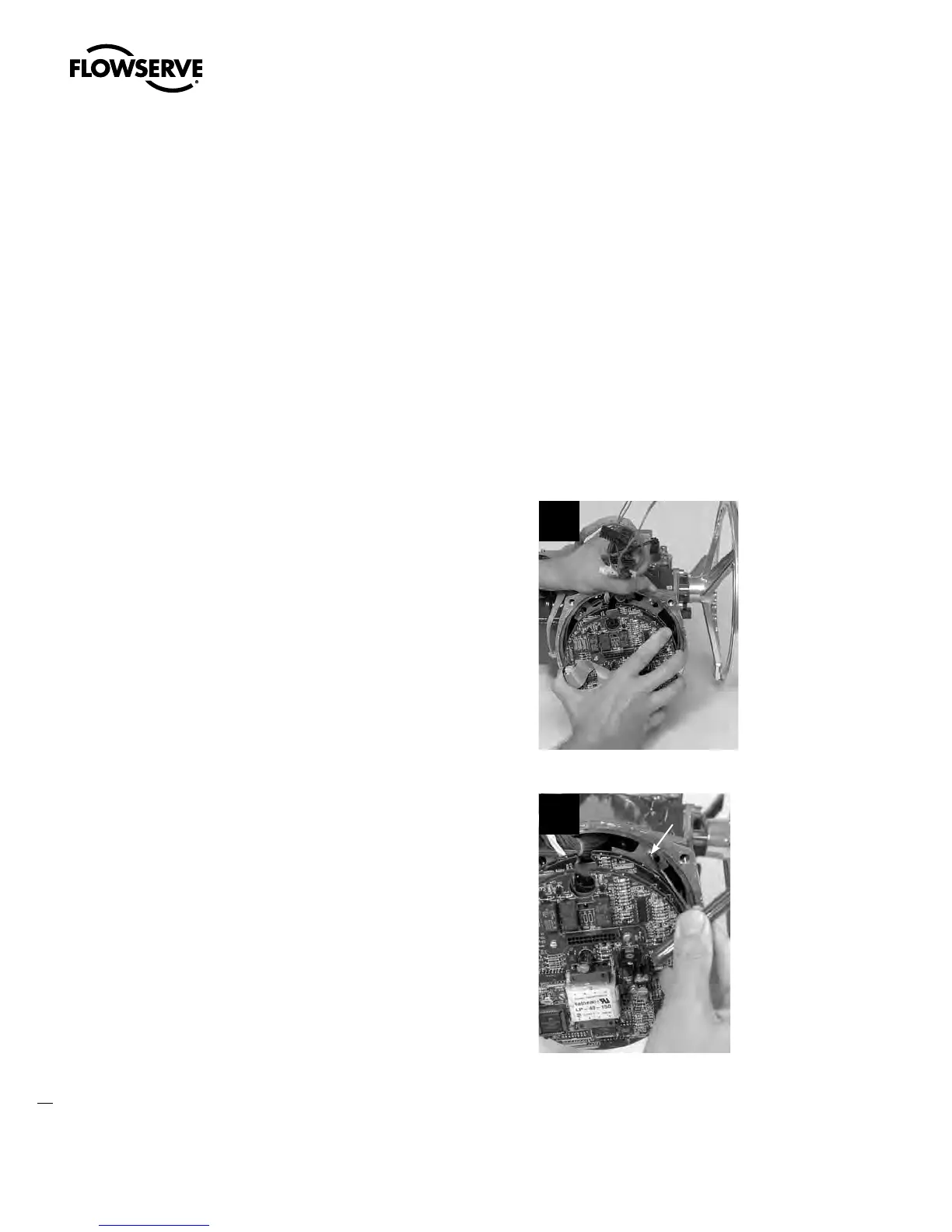

Position the control module subassembly over
the three mounting screw heads (#8-7). Rotate
the subassembly in clockwise (CW) direction
until all three screws are seated in the keyhole
slots. (The keyhole slots in the mounting plate
[#8-1] are spaced in such a way that the control
module assembly will mount in only one
position).
10
STEP 11
Tighten the three screws (#8-7) with a 3 mm
hex key.
11
8-7
