Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08

ﬂowserve.com

3. Take care not to damage either the O.D. on adapter to I.D on housing and the O.D. on motor to I.D. on

adapter to protect flame path for hazardous certifications.

4.2 Declutch

Table 4.4 – Declutch Parts List (MX-05 and -10)

Part Number Description Qty.

5-1 Declutch cover 1

5-2 Declutch shaft 1

5-3 Declutch cam 1

5-4 Declutch spring 1

5-5 Cam spring 1

5-6 Declutch latch 1

5-7 Latch spring 1

5-8 Cam plate 1

5-9 Retaining ring 2

5-10 Socket head cap screw 1

5-11 O-ring 1

5-12 Socket head cap screw 2

5-13 Dowel pin 1

5-14 Roll pin 1

5-15 O-ring 1

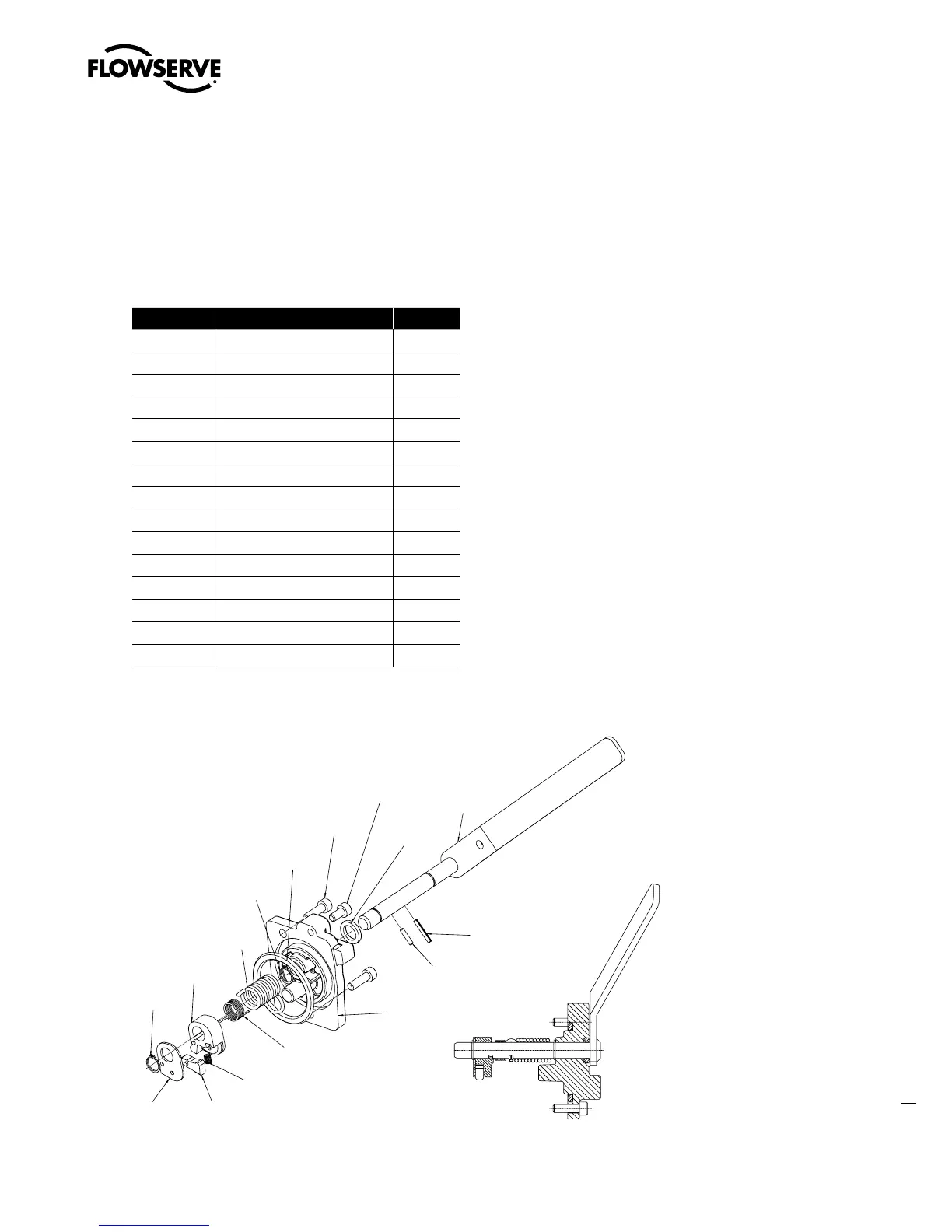

Figure 4.4 – Declutch (MX-05 and -10)






























