Flowserve Limitorque MX-40 - Remounting

45
Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
flowserve.com

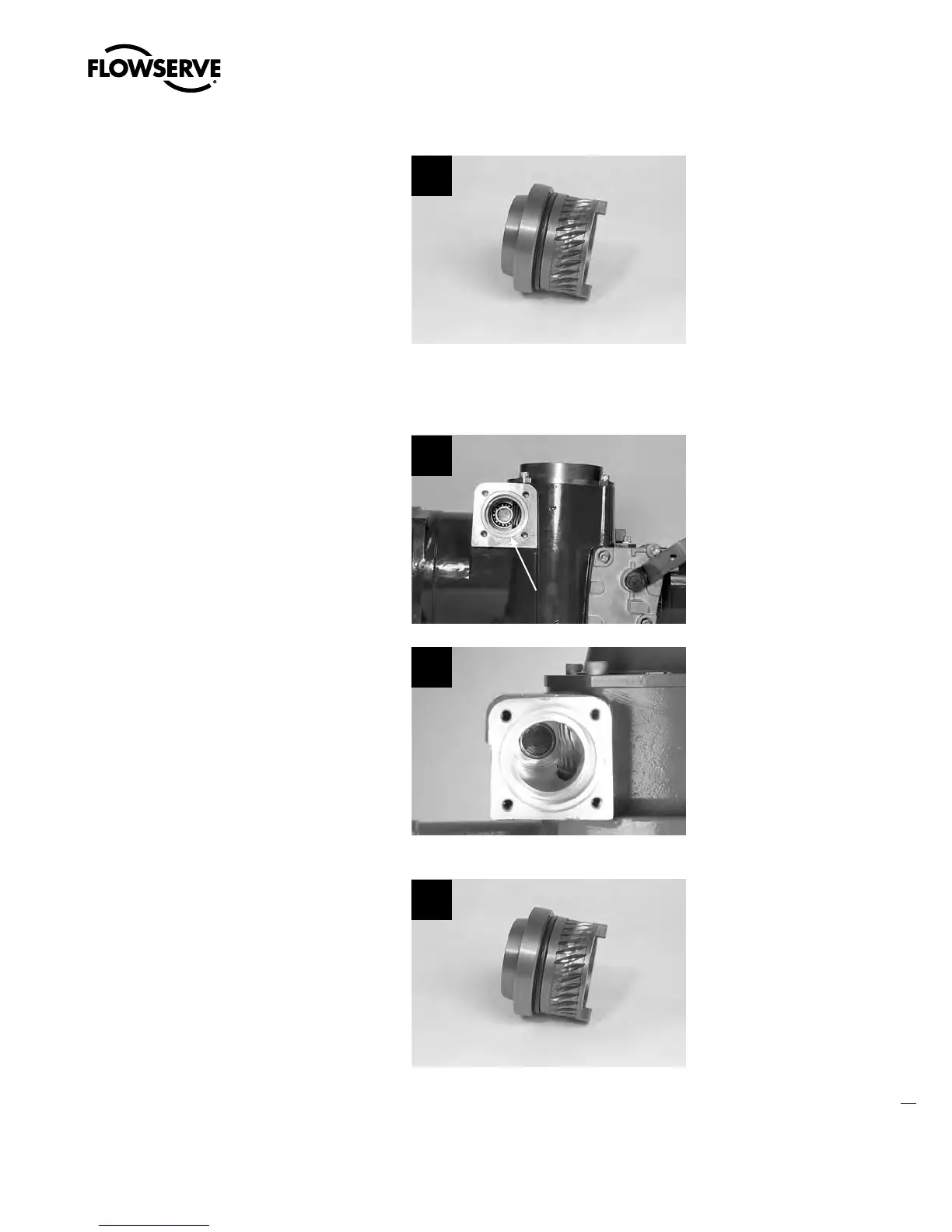

STEP 6
If needed, remove the handwheel worm gear
assembly (#12-1). (See Section 4.14.1 for
removal procedure.)
6
Handwheel Worm Gear Adapter (12-1)
4.5.4 Remounting
STEP 7
Check that bearing (#13-8) is correctly in place
in the actuator housing.
MX-40 is slip fit in housing (7a).
MX-85 is press fit in housing (7b).
7a
13-8
7b
STEP 8
If previously removed, install handwheel worm
gear assembly (#12-1). (See Section 4.14.2 for
remounting procedure.)
8
Handwheel Worm Gear Adapter (12-1)
