Flowserve Limitorque MX-40 - MX-85, -140, and -150 Optional Drive Sleeve and Baseplate Removal

Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
74
4.12.3 MX-85, -140, and -150 Optional Drive Sleeve
and Baseplate Removal
First Remove
1. Remove actuator from mounting adapter.
2. Drain oil.
3. Remove thrust base (subassembly #10) - if fitted. (See Section 4.8.1.)
4. Remove motor (subassembly #4). (See Section 4.1.1.)
5. Remove worm shaft (subassembly #3). (See Section 4.10.1.)
6. Remove top-mounted handwheel (#1-8) or side-mounted handwheel (subassembly #16).
(See Section 4.3.1 or 4.4.2.)
7. Remove handwheel adapter (subassembly #12). (See Section 4.14.1.)
8. Remove clutch and clutch ring (subassembly #16). (See Section 4.15.1.)
9. Remove handwheel declutch (subassembly #5). (See Section 4.2.1.)

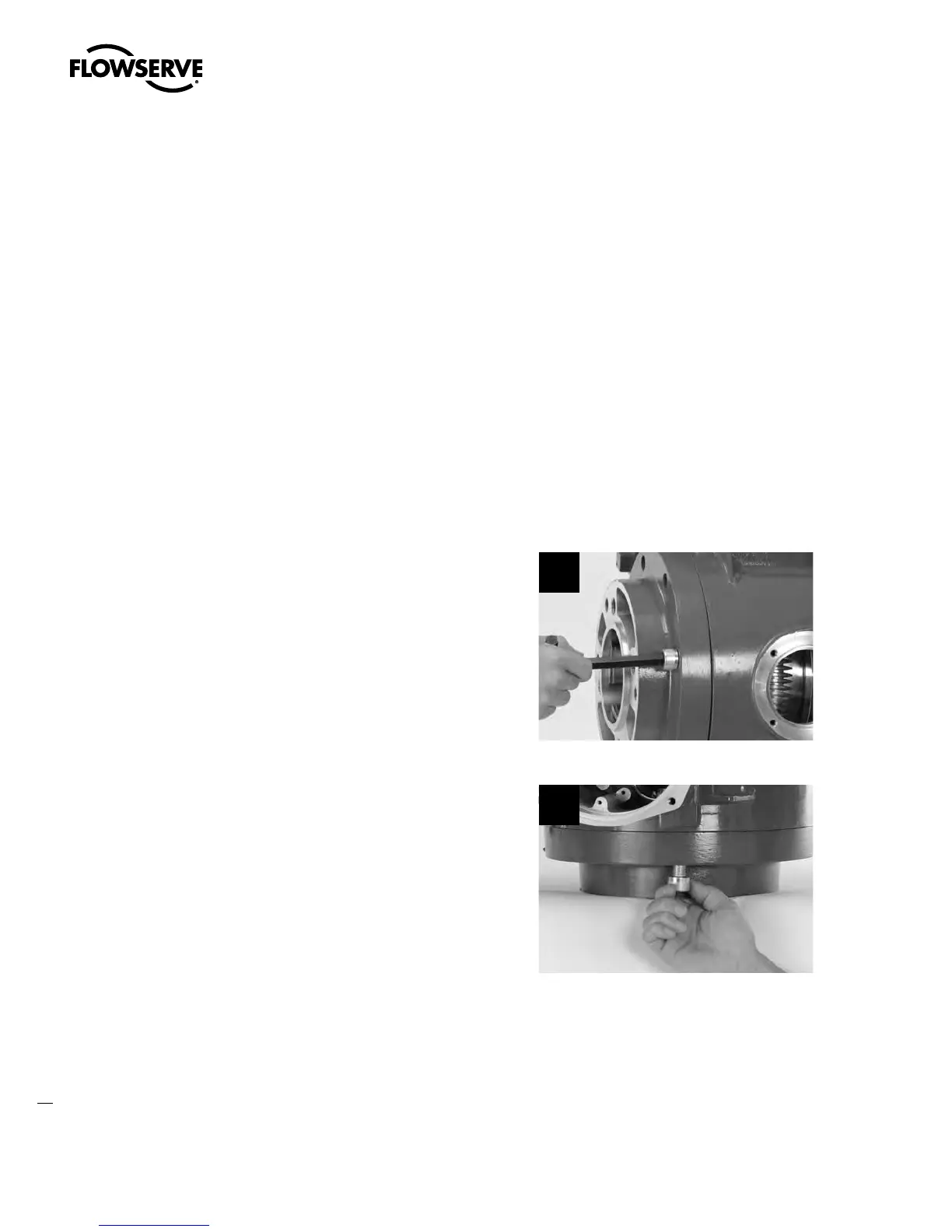

STEP 1
Lay actuator on its side with the drive sleeve
horizontal. Using a hex key, remove seven of
the baseplate screws (#11-5).
1
STEP 2
Lay actuator on a table or suitable structure
with one of the screws (#11-5) hanging over
the edge. Remove screw. If needed, rotate
actuator around and remove all other screws.
2
