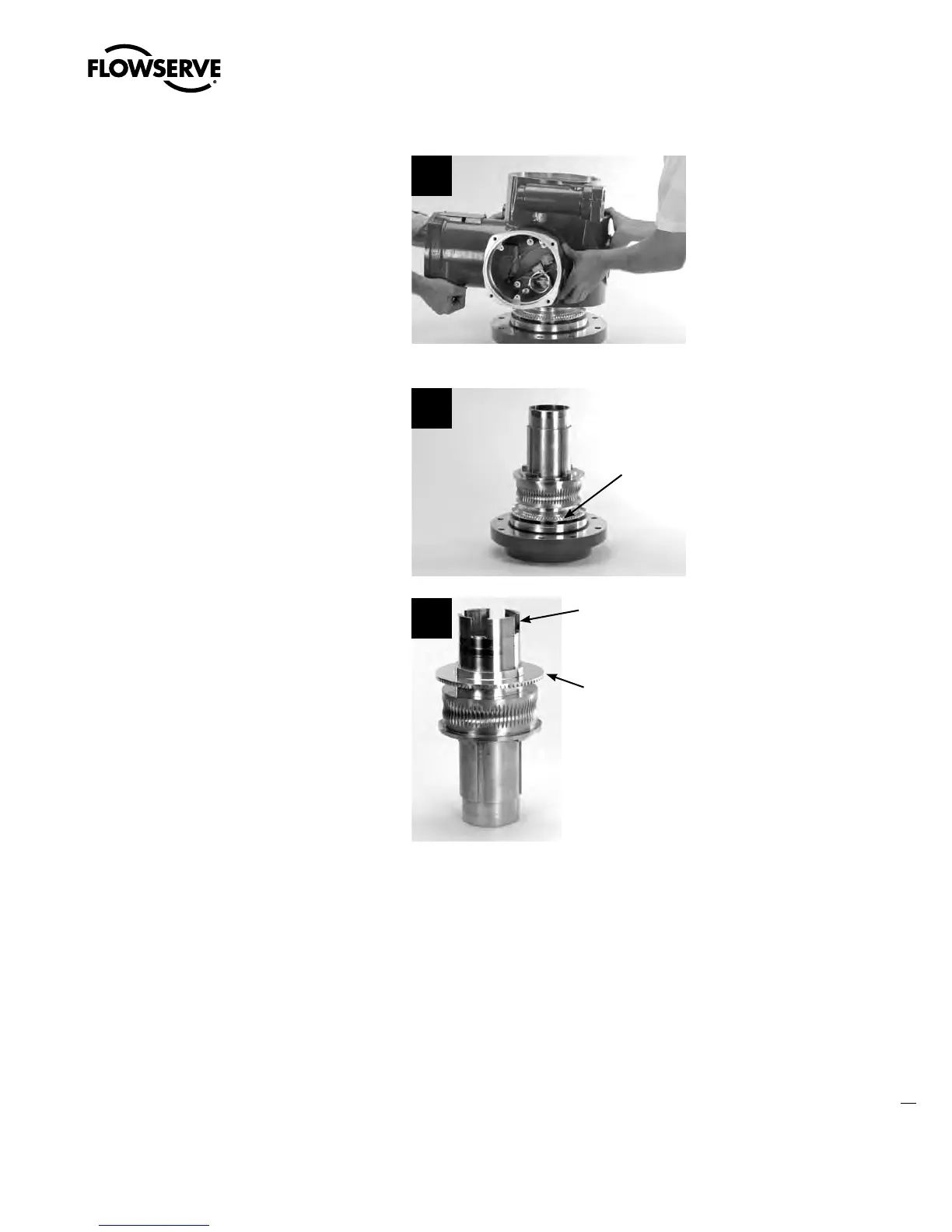

STEP 3
With help, lift housing straight up and off
baseplate and drive sleeve assemblies.
3
STEP 4
Using the encoder gear (#2-3), lift drive sleeve
assembly out of the baseplate assembly. Turn
the drive sleeve assembly over (lugs of drive
sleeve up) and set down on table.
NOTE: The drive sleeve assembly is not held
together and will fall apart if set down on a lug
end of drive sleeve.
4a
2-3
4b
2-3
Lugs
